Catalog

MultiCat Mid-Power Receptacle Housing, 20 Circuits, Key B, Natural, with CPA

Part	Contact Type	Number of Positions	Contact Termination	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Pitch	Connector Type	Number of Rows	Fastening Type	Row Spacing	Color	Insulation Material	Features	Note

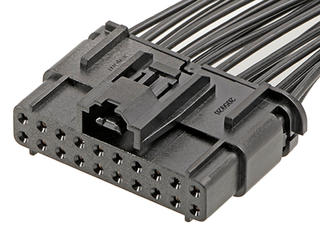

Molex 2059260070	Female Socket	20	Crimp	Free Hanging (In-Line)	-40 °C	150 °C	0.142 in	Receptacle	2	Latch Lock	0.142 in	Black	Polyetherimide (PEI)

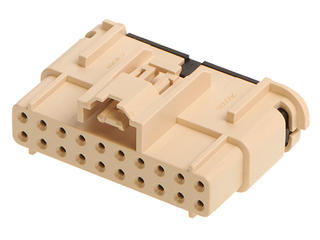

Molex 2059260071	Female Socket	20	Crimp	Free Hanging (In-Line)	-40 °C	150 °C	0.142 in	Receptacle	2	Latch Lock	0.142 in	Natural	Polyetherimide (PEI)

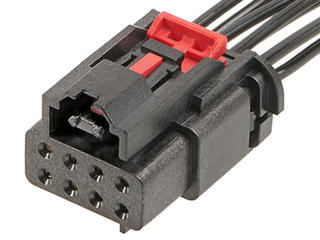

Molex 2059260110	Female Socket	8	Crimp	Free Hanging (In-Line)	-40 °C	150 °C	0.142 in	Receptacle	2	Latch Lock	0.142 in	Black	Polyetherimide (PEI)	Connector Position Assurance (CPA)

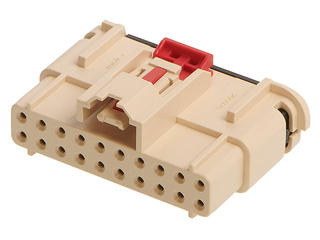

Molex 2059260171	Female Socket	20	Crimp	Free Hanging (In-Line)	-40 °C	150 °C	0.142 in	Receptacle	2	Latch Lock	0.142 in	Natural	Polyetherimide (PEI)	Connector Position Assurance (CPA)
Molex 2059260111	Female Socket	8	Crimp	Free Hanging (In-Line)	-40 °C	150 °C	0.142 in	Receptacle	2	Latch Lock	0.142 in	Natural	Polyetherimide (PEI)	Connector Position Assurance (CPA)
Molex 2059260010	Female Socket	8	Crimp	Free Hanging (In-Line)	-40 °C	150 °C	0.142 in	Receptacle	2	Latch Lock	0.142 in	Black	Polyetherimide (PEI)		Contacts Not Included

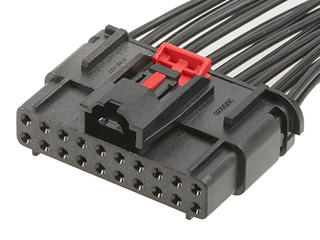

Molex 2059260170	Female Socket	20	Crimp	Free Hanging (In-Line)	-40 °C	150 °C	0.142 in	Receptacle	2	Latch Lock	0.142 in	Black	Polyetherimide (PEI)	Connector Position Assurance (CPA)

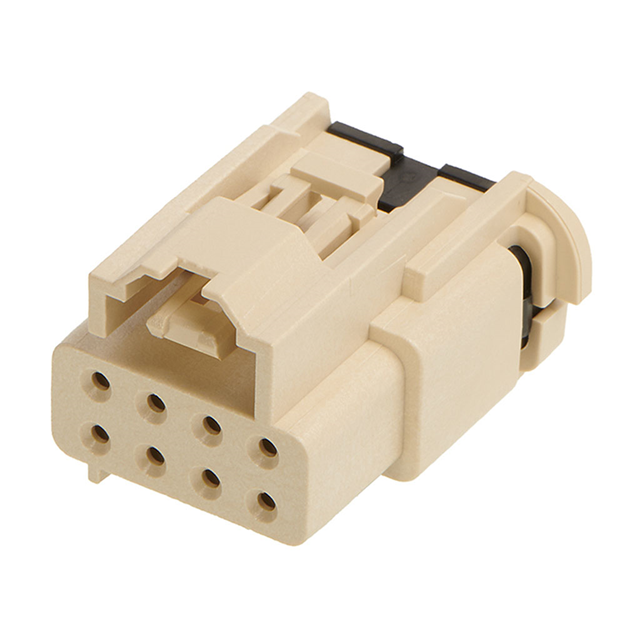

Molex 2059260011	Female Socket	8	Crimp	Free Hanging (In-Line)	-40 °C	150 °C	0.142 in	Receptacle	2	Latch Lock	0.142 in	Natural	Polyetherimide (PEI)
