3241 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN RING CIRC 300-350MCM #5/8

Part	Features	Thickness	Terminal Type	Wire Gauge (MCM) (Min)	Wire Gauge (MCM) (Max)	Stud/Tab Size	Stud/Tab Size	Mounting Type	Termination	Contact Material	Contact Finish	Length - Overall	Insulation	Width - Outer Edges	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Color	Material - Insulation	Insulation Diameter (Min)	Insulation Diameter (Max)	Insulation Diameter	Stud/Tab Size (Type)	Wire Gauge	Tongue Inside Opening	Length - Ring Center to Termination	Length - Termination
TE Connectivity AMP Connectors 324105	Brazed Seam	0.136 in	Circular	300 MCM	350 MCM	0.625 in	5 Stud 8 Stud	Free Hanging (In-Line)	Crimp	Copper	Tin	2.671 in	Non-Insulated	1.545 in
TE Connectivity AMP Connectors 324159	Serrated Termination	0.031 in	Circular			4 Stud		Free Hanging (In-Line)	Crimp	Copper	Tin	0.703 in	Insulated	0.25 in	16 AWG	14 AWG	Blue	Nylon PA Polyamide	0.105 in	0.15 in

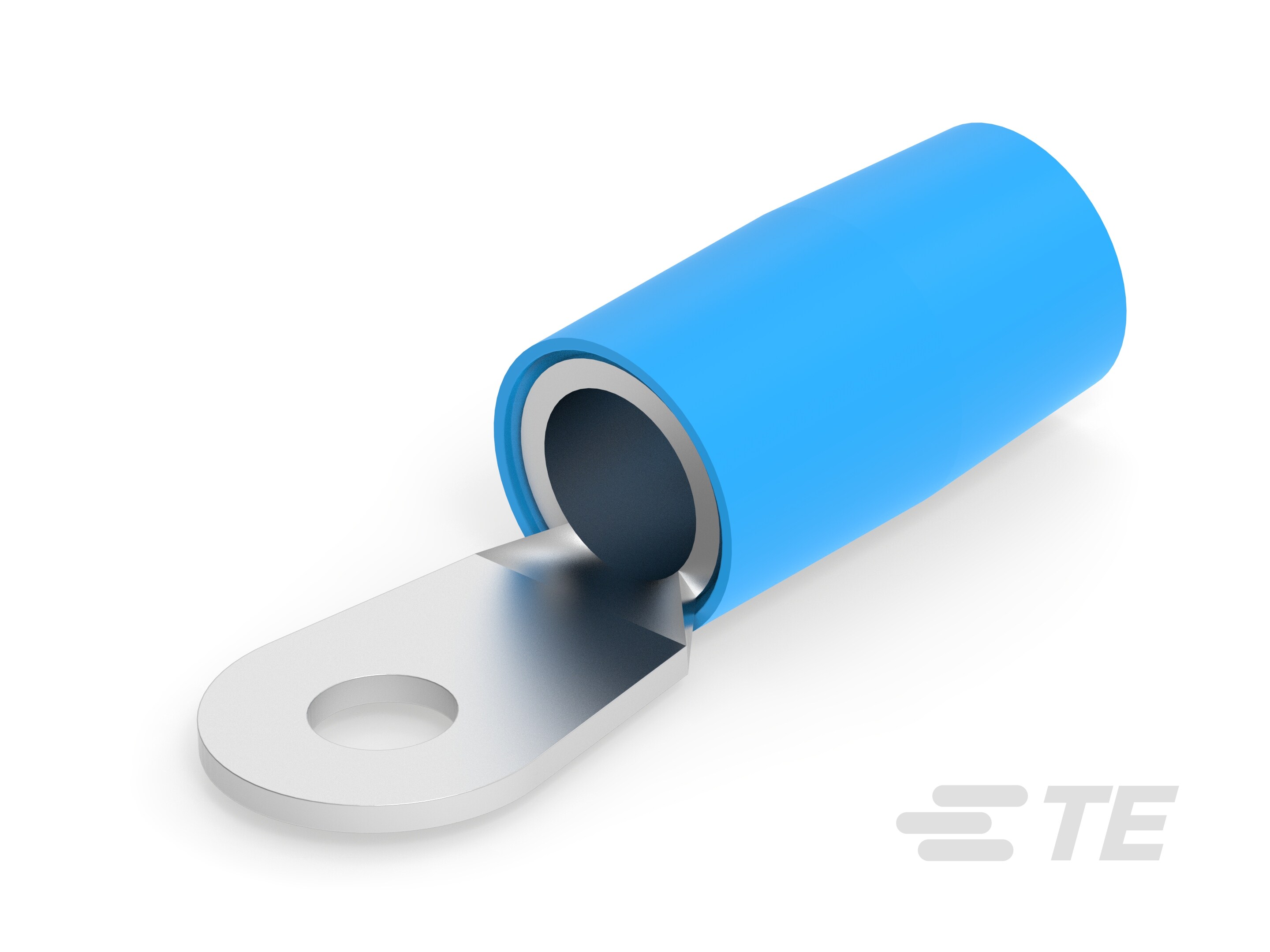

TE Connectivity AMP Connectors 324113		0.07 in	Circular			0.3125 in	16 Stud 5 Stud	Free Hanging (In-Line)	Crimp	Copper	Tin	2.426 in	Insulated	0.807 in			Blue	Nylon PA Polyamide			0.58 in	Stud	1/0 AWG
TE Connectivity AMP Connectors 324123	Serrated Termination	0.031 in	Circular			0.3125 in	16 Stud 5 Stud	Free Hanging (In-Line)	Crimp	Copper	Tin	1.218 in	Insulated	0.531 in	22 AWG	16 AWG	Red	Nylon PA Polyamide	0.08 in	0.125 in		Stud
TE Connectivity AMP Connectors 324169	Serrated Termination		Flanged			8 Stud		Free Hanging (In-Line)	Crimp	Copper	Tin	0.873 in	Insulated	0.416 in	22 AWG	16 AWG	Red	Poly-Vinyl Chloride PVC	0.105 in	0.14 in				0.171 in	0.25 in	0.416 in
TE Connectivity AMP Connectors 324111	Serrated Termination	0.048 in	Circular			10 Stud		Free Hanging (In-Line)	Crimp	Copper	Tin	1.812 in	Insulated	0.546 in			Yellow	Nylon PA Polyamide			0.382 in		4 AWG
TE Connectivity AMP Connectors 324185	Serrated Termination	0.091 in	Circular			0.375 in	3 Stud 8 Stud	Free Hanging (In-Line)	Crimp	Copper	Tin	2.794 in	Insulated	1.082 in			Red	Nylon PA Polyamide			0.68 in		3/0 AWG
TE Connectivity AMP Connectors 324187	Serrated Termination	0.102 in	Circular			0.375 in	3 Stud 8 Stud	Free Hanging (In-Line)	Crimp	Copper	Tin	2.858 in	Insulated	1.15 in			Blue	Nylon PA Polyamide			0.765 in		4/0 AWG

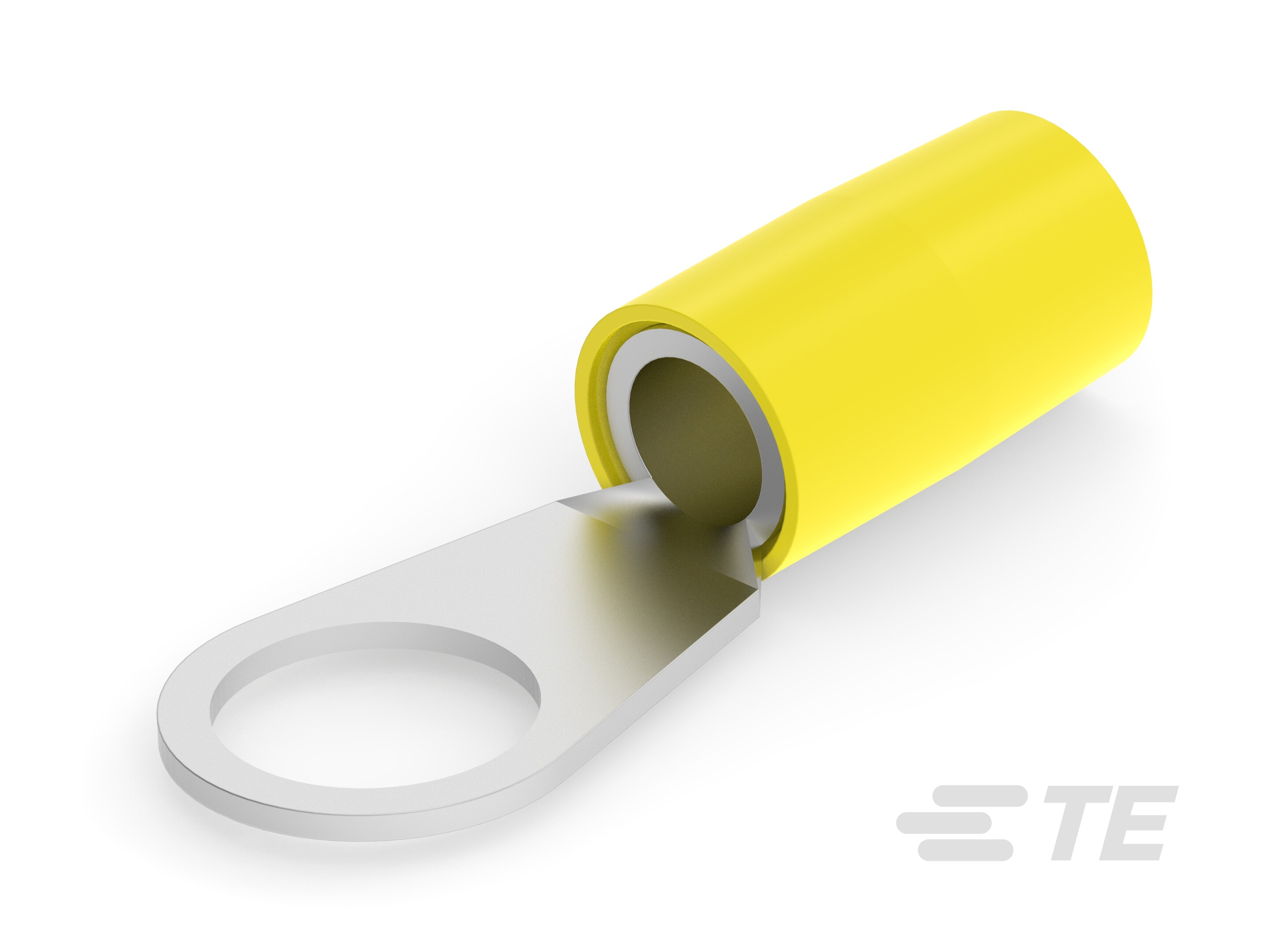

TE Connectivity AMP Connectors 324114	Serrated Termination	0.048 in	Circular			0.5 Stud		Free Hanging (In-Line)	Crimp	Copper	Tin	1.878 in	Insulated	0.679 in			Yellow	Nylon PA Polyamide			0.382 in		4 AWG

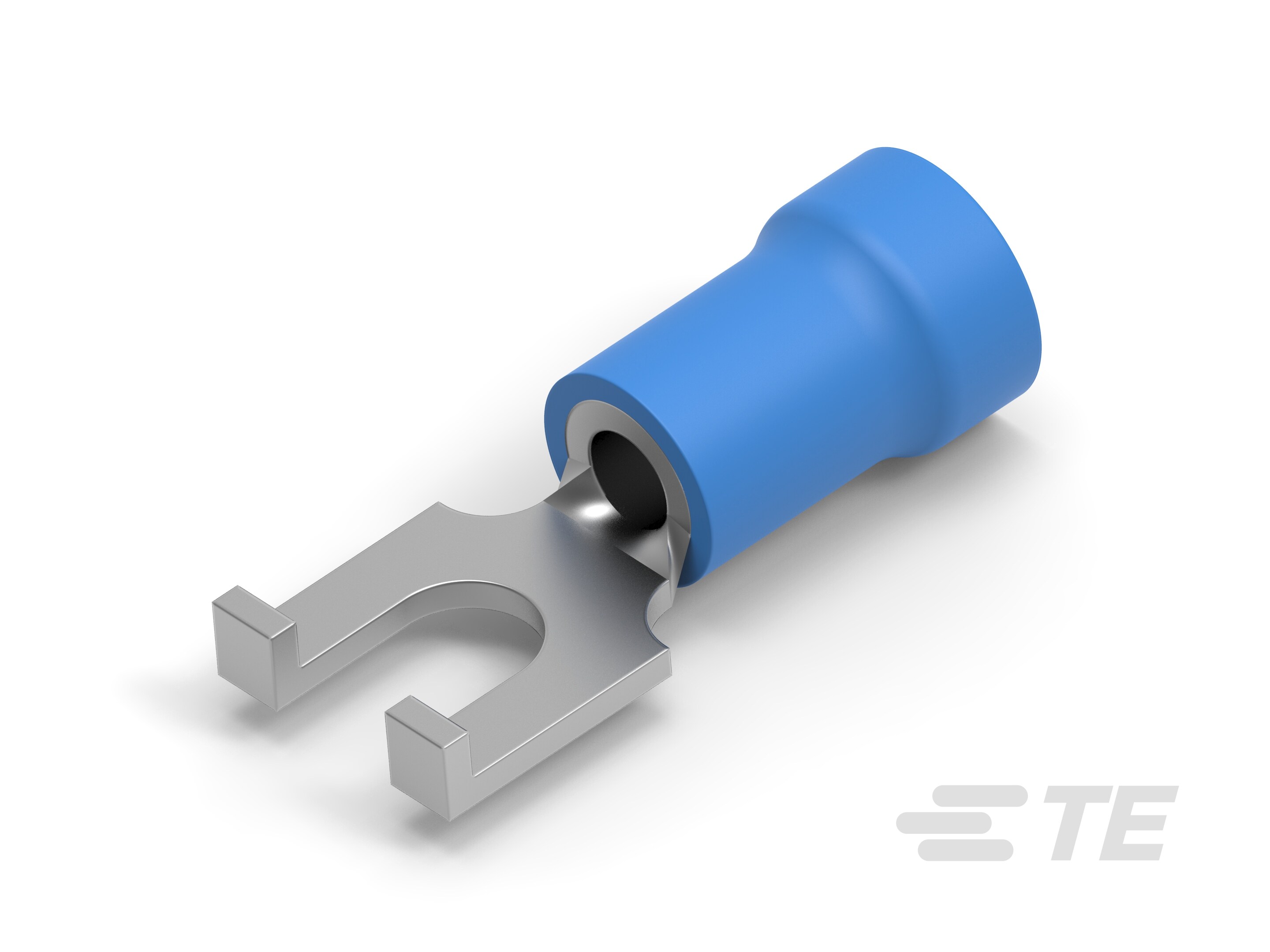

TE Connectivity AMP Connectors 324165	Serrated Termination		Flanged			6 Stud		Free Hanging (In-Line)	Crimp	Copper	Tin	0.78 in	Insulated	0.294 in	16 AWG	14 AWG	Blue	Poly-Vinyl Chloride PVC	0.118 in	0.193 in				0.145 in	0.203 in	0.416 in
