ATWILC1000 Series
Manufacturer: Microchip Technology
Beta
⌘K
ATWILC1000 802.11 B/G/N IC 40 VQFN 5X5X0.9MM T/R ROHS COMPLIANT: YES
| Part | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Frequency | Current - Receiving (Max) | Current - Receiving (Min) | Operating Temperature (Min) | Operating Temperature (Max) | Data Rate (Max) | Memory Type | Memory Size (RAM) | Memory Size (SRAM) | Memory Size (ROM) | Type | Mounting Type | Sensitivity | Protocol | Current - Transmitting (Max) | Current - Transmitting (Min) | Package Width | Package Name | Package Length | Package / Case | Modulation | GPIO Count | Serial Interfaces | RF Family/Standard | Power - Output | Current - Transmitting | Current - Receiving | Antenna Type | Data Rate | For Use With/Related Products | Supplied Contents | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Microchip Technology | 1.62 V | 3.6 V | 2.4 GHz | 58.5 mA | 52.5 mA | -40 °C | 85 °C | 72.2 Mbps | RAM ROM | 224 kB | 224 kB | 128 kB | TxRx + MCU | Surface Mount | -98 dBm | 802.11b 802.11g 802.11n | 294 mA | 244 mA | 5 mm | 40-QFN | 5 mm | 40-VFQFN Exposed Pad | CCK DSSS OFDM | 9 | I2C SDIO SPI UART | WiFi | 20.5 dBm | ||||||||
 Microchip Technology | 1.62 V | 3.6 V | 2.4 GHz | -40 °C | 85 °C | 72.2 Mbps | RAM ROM | 128 kB | TxRx + MCU | Surface Mount | -98 dBm | 802.11b 802.11g 802.11n | 5 mm | 40-QFN | 5 mm | 40-VFQFN Exposed Pad | CCK DSSS OFDM | 9 | I2C SDIO SPI UART | WiFi | 20.6 dBm | 230 mA | 68 mA | ||||||||||||
Microchip Technology | 1.62 V | 3.6 V | 2.4 GHz | 58.5 mA | 52.5 mA | -40 °C | 85 °C | 72.2 Mbps | RAM ROM | 224 kB | 224 kB | 128 kB | TxRx + MCU | Surface Mount | -98 dBm | 802.11b 802.11g 802.11n | 294 mA | 244 mA | 5 mm | 40-QFN | 5 mm | 40-VFQFN Exposed Pad | CCK DSSS OFDM | 9 | I2C SDIO SPI UART | WiFi | 20.5 dBm | ||||||||
 Microchip Technology | 1.62 V | 3.6 V | 2.4 GHz | 58.5 mA | 52.5 mA | -40 °C | 85 °C | 72.2 Mbps | RAM ROM | 224 kB | 224 kB | 128 kB | TxRx + MCU | Surface Mount | -98 dBm | 802.11b 802.11g 802.11n | 294 mA | 244 mA | 3.25 mm | 55-WLCSP | 3.25 mm | 55-UFBGA WLCSP | CCK DSSS OFDM | 9 | I2C SDIO SPI UART | WiFi | 20.5 dBm | ||||||||
Microchip Technology | 1.62 V | 3.6 V | 2.4 GHz | 58.5 mA | 52.5 mA | -40 °C | 85 °C | 72.2 Mbps | RAM ROM | 224 kB | 224 kB | 128 kB | TxRx + MCU | Surface Mount | -98 dBm | 802.11b 802.11g 802.11n | 294 mA | 244 mA | 5 mm | 40-QFN | 5 mm | 40-VFQFN Exposed Pad | CCK DSSS OFDM | 9 | I2C SDIO SPI UART | WiFi | 20.5 dBm | ||||||||
 Microchip Technology | 3.3 V | 4.3 V | 2.4 GHz | 68 mA | 29 mA | -40 °C | 85 °C | Surface Mount | -98 dBm | 802.11b 802.11g 802.11n | 230 mA | 29 mA | 28-SMD Module Exposed Pad | 16-QAM 64-QAM BPSK CCK DBPSK DQPSK OFDM QPSK | I2C SDIO SPI UART | WiFi | 19 dBm | Integrated Trace | 72.2 Mbps | ||||||||||||||||
 Microchip Technology | 3 V | 4.2 V | 2.4 GHz | 68 mA | 29 mA | -40 °C | 85 °C | Surface Mount | -98 dBm | 802.11b 802.11g 802.11n | 230 mA | 29 mA | 28-SMD Module Exposed Pad | 16-QAM 64-QAM BPSK CCK DBPSK DQPSK OFDM QPSK | I2C SDIO SPI UART | WiFi | 19 dBm | Antenna Not Included | 72.2 Mbps | ||||||||||||||||

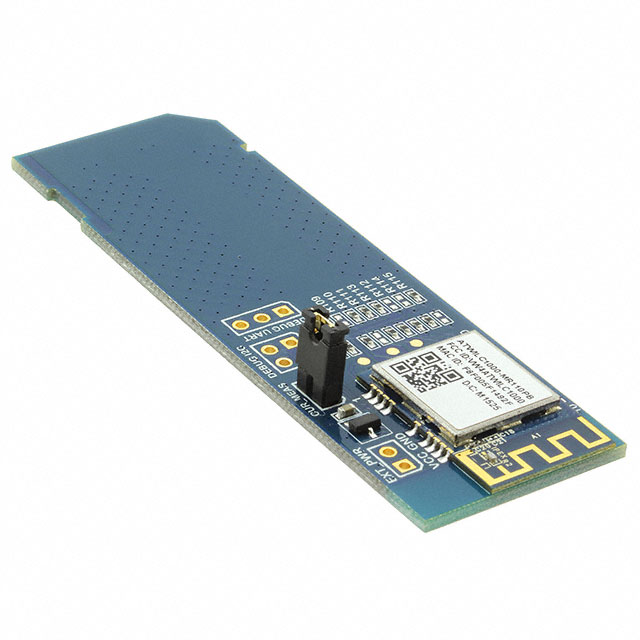

 Microchip Technology | 2.4 GHz | 802.11 b/g/n (Wi-Fi WiFi WLAN) Transceiver | ATWILC1000 | Board(s) | ATWILC1000 | Board | |||||||||||||||||||||||||||||
Microchip Technology | 1.62 V | 3.6 V | 2.4 GHz | 58.5 mA | 52.5 mA | -40 °C | 85 °C | 72.2 Mbps | RAM ROM | 224 kB | 224 kB | 128 kB | TxRx + MCU | Surface Mount | -98 dBm | 802.11b 802.11g 802.11n | 294 mA | 244 mA | 5 mm | 40-QFN | 5 mm | 40-VFQFN Exposed Pad | CCK DSSS OFDM | 9 | I2C SDIO SPI UART | WiFi | 20.5 dBm | ||||||||
 Microchip Technology | 1.62 V | 3.6 V | 2.4 GHz | -40 °C | 85 °C | 72.2 Mbps | RAM ROM | 128 kB | TxRx + MCU | Surface Mount | -98 dBm | 802.11b 802.11g 802.11n | 5 mm | 40-QFN | 5 mm | 40-VFQFN Exposed Pad | CCK DSSS OFDM | 9 | I2C SDIO SPI UART | WiFi | 20.6 dBm | 230 mA | 68 mA |
