35495 Series

Catalog

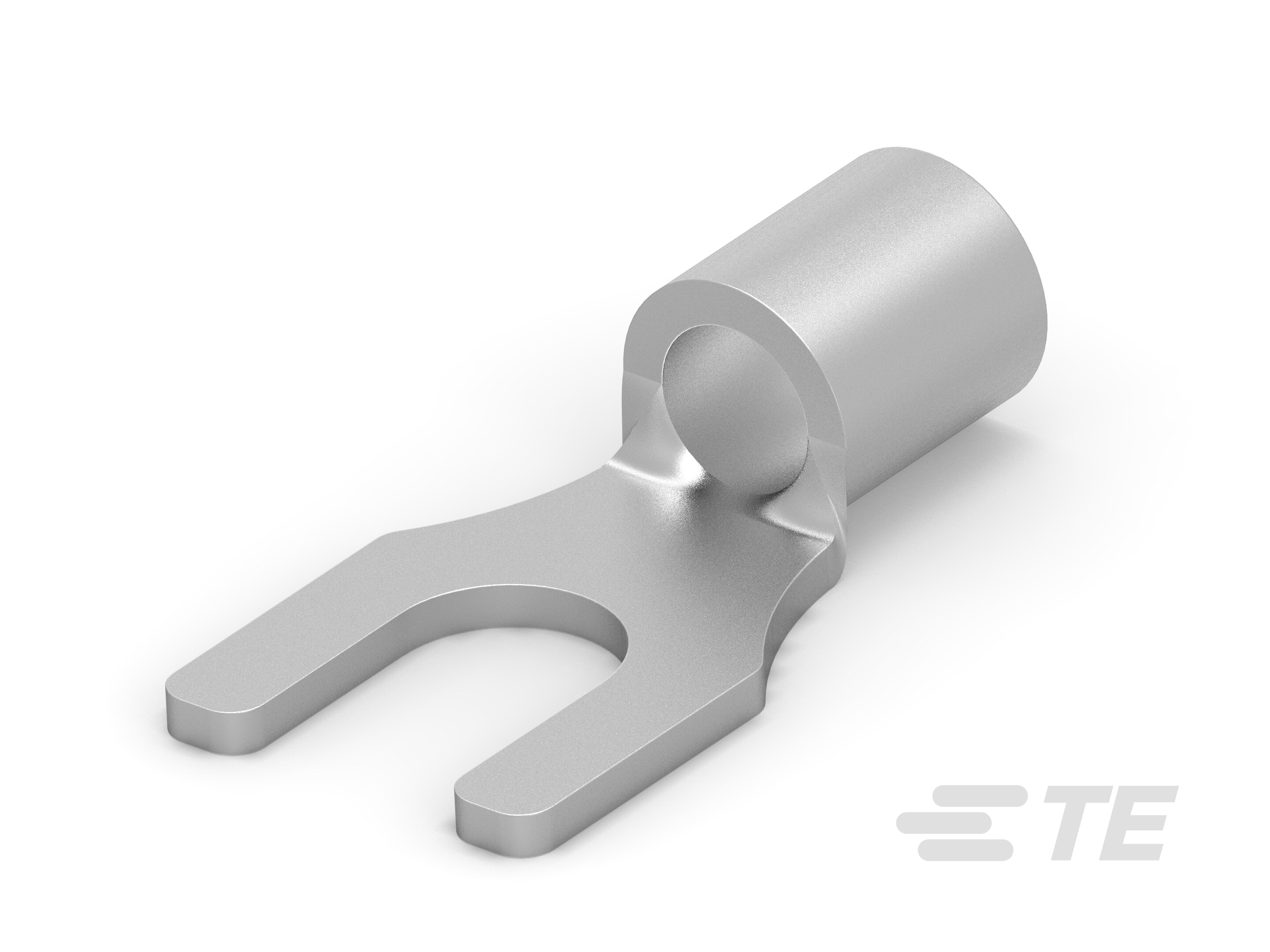

CONN SPADE TERM 10-12AWG #10

Part	Stud/Tab Size	Contact Material	Features	Length - Overall	Termination	Width - Outer Edges	Insulation	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Finish	Terminal Type	Mounting Type	Tongue Inside Opening	Length - Ring Center to Termination	Length - Termination
TE Connectivity AMP Connectors 2-35495-2	10 Stud	Copper	Brazed Seam Serrated Termination	0.772 in	Crimp	0.375 in	Non-Insulated	12 AWG	10 AWG	Tin	Standard	Free Hanging (In-Line)	0.197 in	0.296 in	0.268 in
TE Connectivity AMP Connectors 8-35495-2	10 Stud	Copper	Brazed Seam Serrated Termination	0.772 in	Crimp	0.375 in	Non-Insulated	12 AWG	10 AWG	Tin	Standard	Free Hanging (In-Line)	0.197 in	0.296 in	0.268 in
