327950 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

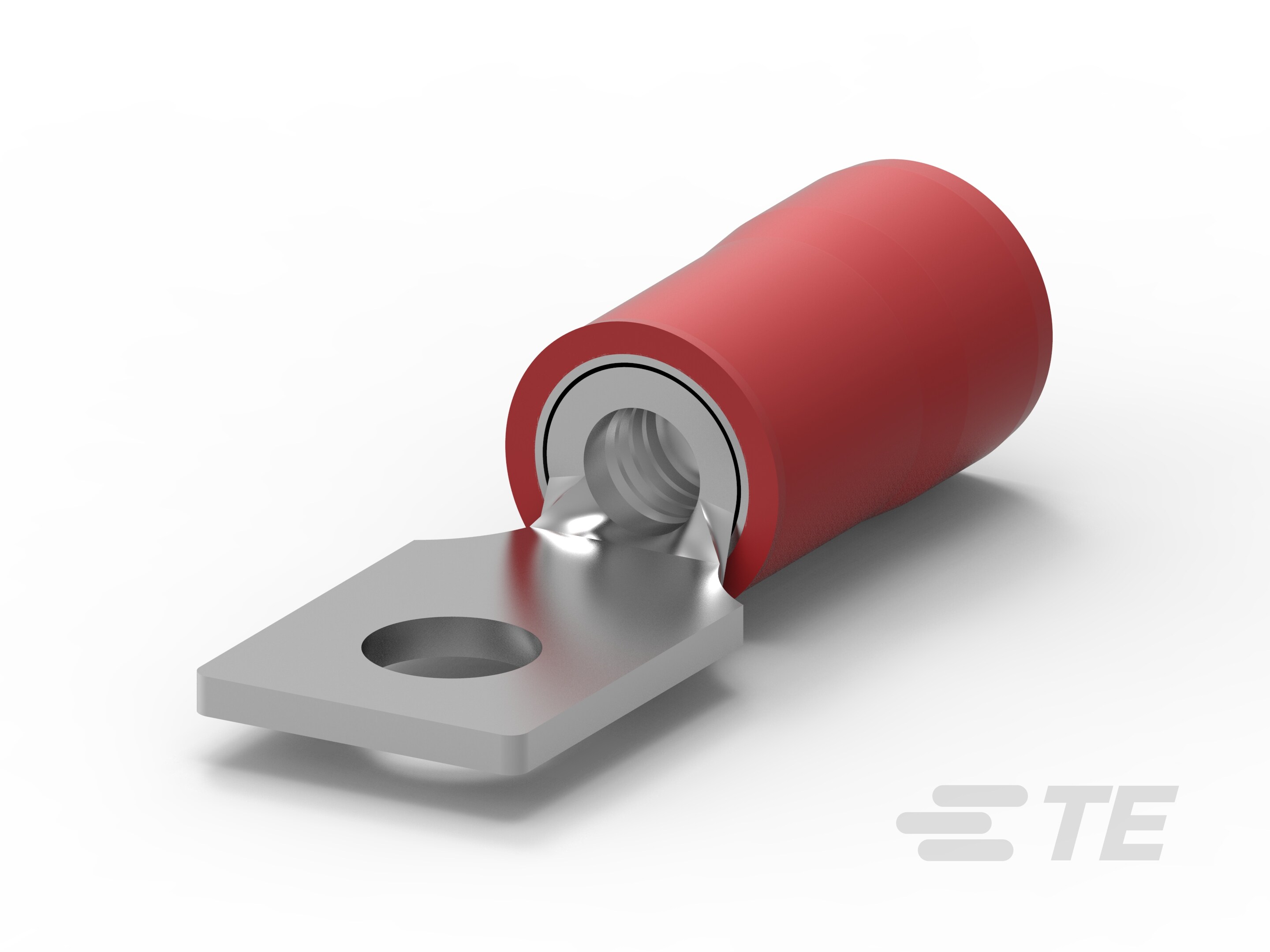

RING TONGUE TERMINAL, M3, #5, 16 AWG, 1.65 MM², PIDG SERIES, RED
| Part | Mounting Type | Length - Overall | Terminal Type | Terminal Style | Width - Outer Edges | Features | Color | Termination | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Tab Thickness | Stud/Tab Size | Insulation | Contact Material | Contact Finish | Diameter - Ring ID |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Free Hanging (In-Line) | 0.855 in | Rectangular Tongue | Single Stud Hole | 0.277 in | Serrated Termination | Red | Crimp | 16 AWG | 22 AWG | 0.031 in | 5 Stud | Insulated | Copper | Tin | 0.132 in |
