640384 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN UNSHROUDED HEADER HDR 12 POS 3.96MM SOLDER ST THRU-HOLE PACKAGE
| Part | Contact Length - Post | Operating Temperature (Min) | Operating Temperature (Max) | Overall Contact Length | Number of Rows | Contact Shape | Current Rating | Current Rating | Contact Type | Connector Type | Material Flammability Rating | Number of Positions Loaded | Contact Finish - Post | Insulation Color | Contact Material | Pitch - Mating | Shrouding | Contact Length - Mating | Number of Positions | Insulation Material | Contact Finish - Mating | Insulation Height | Voltage Rating | Mounting Type | Style | Termination | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.125 in | -55 °C | 105 °C | 0.65 in | 1 | Circular | 0 A | Varies by Wire Gauge | Male Pin | Header | UL94 V-0 | All | Tin | Natural | Copper Alloy | 0.156 in | Unshrouded | 0.4 in | 12 | Glass Filled Thermoplastic | Tin | 0.125 in | 600 V | Through Hole | Board Cable/Wire | Solder | General Purpose Industrial |
 TE Connectivity AMP Connectors | 0.125 in | -55 °C | 105 °C | 0.65 in | 1 | Circular | 0 A | Varies by Wire Gauge | Male Pin | Header | UL94 V-0 | All | Tin | Natural | Copper Alloy | 0.156 in | Unshrouded | 0.4 in | 7 | Glass Filled Thermoplastic | Tin | 0.125 in | 600 V | Through Hole | Board Cable/Wire | Solder | General Purpose Industrial |

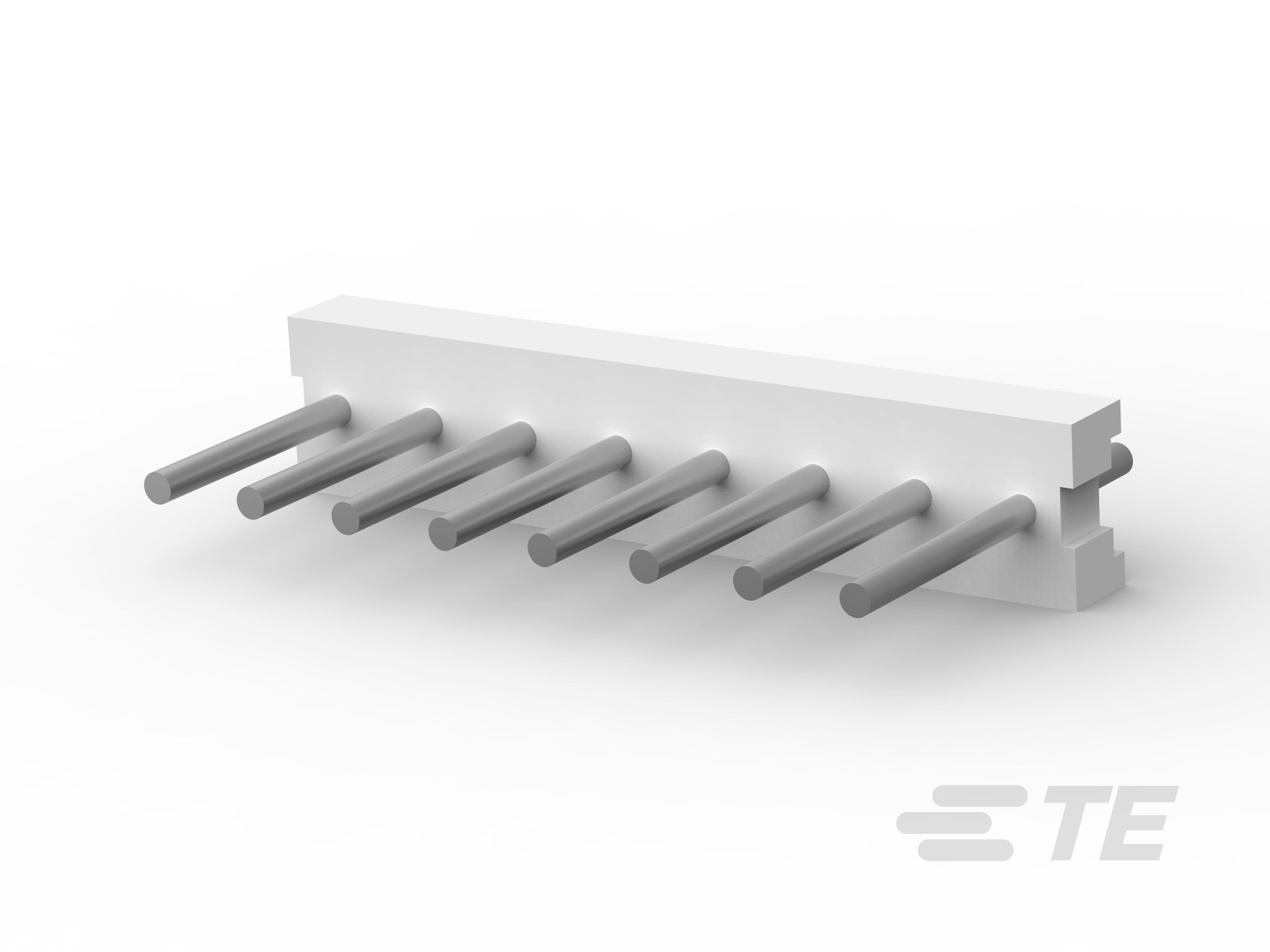

 TE Connectivity AMP Connectors | 0.125 in | -55 °C | 105 °C | 0.65 in | 1 | Circular | 0 A | Varies by Wire Gauge | Male Pin | Header | UL94 V-0 | All | Tin | Natural | Copper Alloy | 0.156 in | Unshrouded | 0.4 in | 8 | Glass Filled Thermoplastic | Tin | 0.125 in | 600 V | Through Hole | Board Cable/Wire | Solder | General Purpose Industrial |
 TE Connectivity AMP Connectors | 0.125 in | -55 °C | 105 °C | 0.65 in | 1 | Circular | 0 A | Varies by Wire Gauge | Male Pin | Header | UL94 V-0 | All | Tin | Natural | Copper Alloy | 0.156 in | Unshrouded | 0.4 in | 3 | Glass Filled Thermoplastic | Tin | 0.125 in | 600 V | Through Hole | Board Cable/Wire | Solder | General Purpose Industrial |

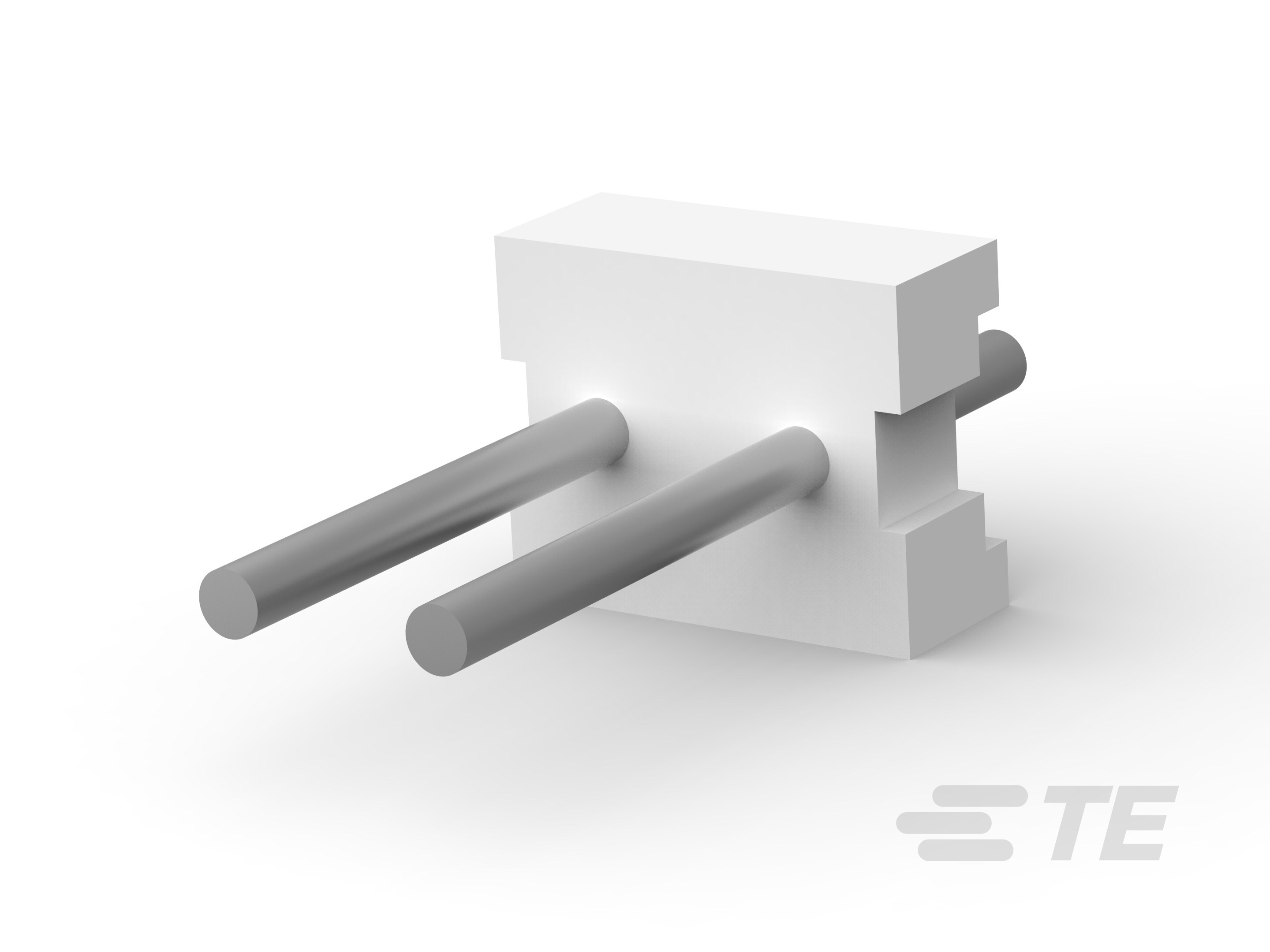

 TE Connectivity AMP Connectors | 0.125 in | -55 °C | 105 °C | 0.65 in | 1 | Circular | 0 A | Varies by Wire Gauge | Male Pin | Header | UL94 V-0 | All | Tin | Natural | Copper Alloy | 0.156 in | Unshrouded | 0.4 in | 2 | Glass Filled Thermoplastic | Tin | 0.125 in | 600 V | Through Hole | Board Cable/Wire | Solder | General Purpose Industrial |
 TE Connectivity AMP Connectors | 0.125 in | -55 °C | 105 °C | 0.65 in | 1 | Circular | 0 A | Varies by Wire Gauge | Male Pin | Header | UL94 V-0 | All | Tin | Natural | Copper Alloy | 0.156 in | Unshrouded | 0.4 in | 10 | Glass Filled Thermoplastic | Tin | 0.125 in | 600 V | Through Hole | Board Cable/Wire | Solder | General Purpose Industrial |
