T1023 Series

Catalog

QORIQ, 2XCPU 64-BIT PWR ARCH, 1.2GHZ, DDR3L/4, PCIE, 1/10GBE, HW ACCEL, SEC, 0 TO 105C, 19X19 PKG/ TRAY ROHS COMPLIANT: YES

Part	Ethernet Ports	Ethernet Interface	Bus Width	Number of Cores	Operating Temperature (Max)	Operating Temperature (Min)	Core Processor	Graphics Acceleration	Speed	Package / Case	Package Width	Package Name	Package Length	RAM Controllers	USB 2.0 PHY Count	USB	SATA Speed	SATA Interface	SATA Port Count	Mounting Type	Security Features	Additional Interfaces	Ethernet Speed Options	Ethernet Ports (10GbE)	Ethernet Ports (1GbE)	Voltage - I/O (Option 2)	Voltage - I/O (Option 1)	Display & Interface Controllers	Board Type	Contents	Utilized IC / Part	Type
NXP USA Inc. T1023NSE7MQA	8	GbE	64 Bit	2 Core	105 °C	0 °C	PowerPC e5500	No	1.2 GHz	525-FBGA FCBGA	19 mm	525-FCPBGA	19 mm	DDR3L DDR4	2 count	USB 2.0 + PHY	3 Gbps	SATA	2	Surface Mount	Boot Security Cryptography Secure Debug Secure Fusebox Tamper Detection Volatile key Storage	I2C MMC PCIe SD SPI UART
NXP USA Inc. T1023NXE7KQA	8	GbE	64 Bit	2 Core	105 °C	-40 °C	PowerPC e5500	No	1 GHz	525-FBGA FCBGA	19 mm	525-FCPBGA	19 mm	DDR3L DDR4	2 count	USB 2.0 + PHY	3 Gbps	SATA	2	Surface Mount	Boot Security Cryptography Secure Debug Secure Fusebox Tamper Detection Volatile key Storage	I2C MMC PCIe SD SPI UART
NXP USA Inc. T1023NSN7MQA			64 Bit	2 Core	105 °C	0 °C	PowerPC e5500	Yes	1.2 GHz	525-FBGA FCBGA	19 mm	525-FCPBGA	19 mm	DDR3L DDR4	2 count	USB 2.0 + PHY	3 Gbps	SATA	1	Surface Mount	Boot Security Cryptography Secure Debug Secure Fusebox Tamper Detection Volatile key Storage	DMA GPIO I2C MMC PCIe SD SPI UART	10GbE 1GbE	1	3	1.8 V	1.2 V	LCD
NXP USA Inc. T1023NXN7PQA			64 Bit	2 Core	105 °C	-40 °C	PowerPC e5500	Yes	1.4 GHz	525-FBGA FCBGA	19 mm	525-FCPBGA	19 mm	DDR3L DDR4	2 count	USB 2.0 + PHY	3 Gbps	SATA	1	Surface Mount	Boot Security Cryptography Secure Debug Secure Fusebox Tamper Detection Volatile key Storage	DMA GPIO I2C MMC PCIe SD SPI UART	10GbE 1GbE	1	3	1.8 V	1.2 V	LCD

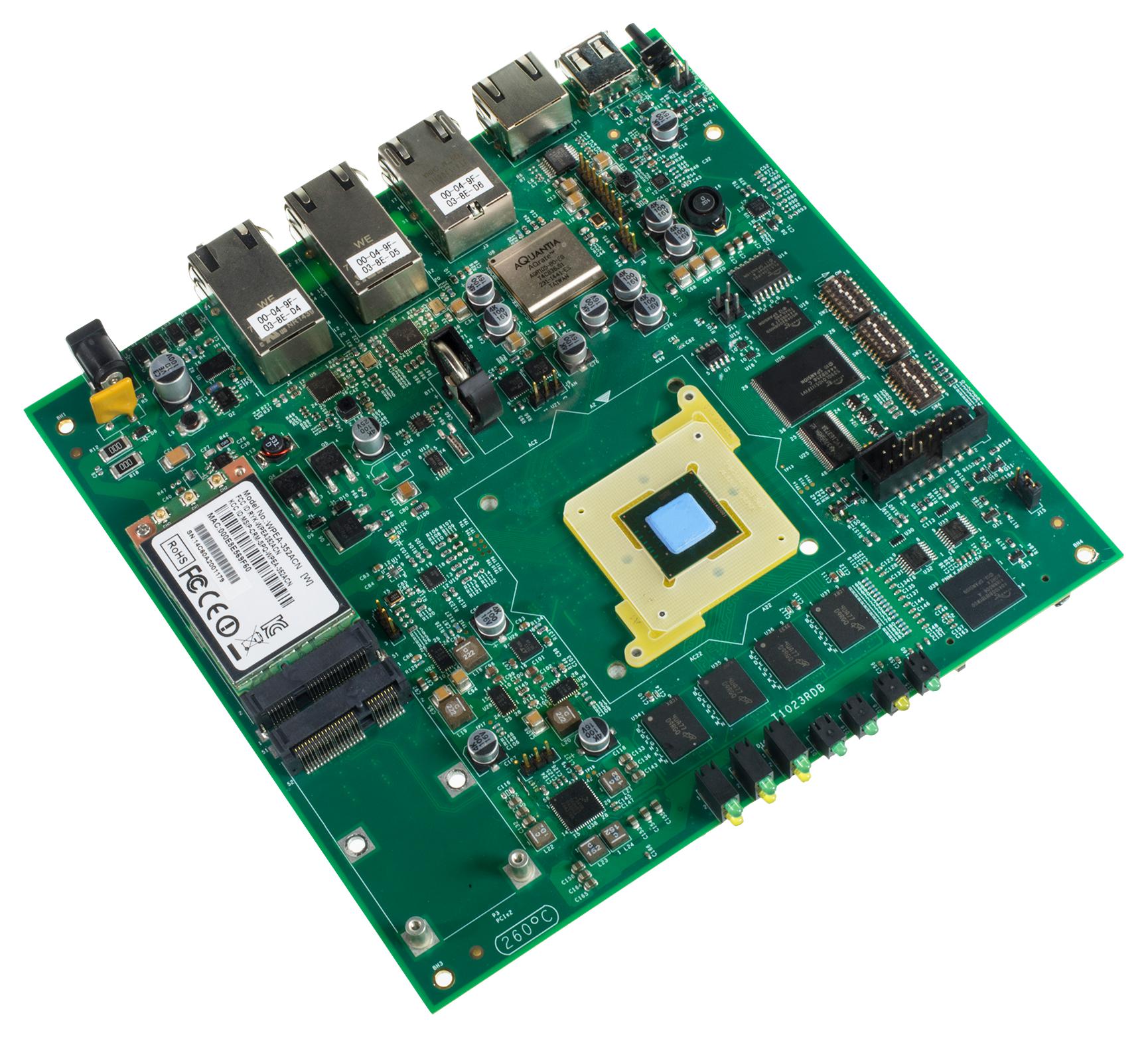

NXP USA Inc. T1023RDB-PC							e5500													Fixed									Evaluation Platform	Board	T1013 T1023	MPU
NXP USA Inc. T1023NXE7MQA	8	GbE	64 Bit	2 Core	105 °C	-40 °C	PowerPC e5500	No	1.2 GHz	525-FBGA FCBGA	19 mm	525-FCPBGA	19 mm	DDR3L DDR4	2 count	USB 2.0 + PHY	3 Gbps	SATA	2	Surface Mount	Boot Security Cryptography Secure Debug Secure Fusebox Tamper Detection Volatile key Storage	I2C MMC PCIe SD SPI UART
NXP USA Inc. T1023NSE7KQA	8	GbE	64 Bit	2 Core	105 °C	0 °C	PowerPC e5500	No	1 GHz	525-FBGA FCBGA	19 mm	525-FCPBGA	19 mm	DDR3L DDR4	2 count	USB 2.0 + PHY	3 Gbps	SATA	2	Surface Mount	Boot Security Cryptography Secure Debug Secure Fusebox Tamper Detection Volatile key Storage	I2C MMC PCIe SD SPI UART
NXP USA Inc. T1023NSE7MQA	8	GbE	64 Bit	2 Core	105 °C	0 °C	PowerPC e5500	No	1.2 GHz	525-FBGA FCBGA	19 mm	525-FCPBGA	19 mm	DDR3L DDR4	2 count	USB 2.0 + PHY	3 Gbps	SATA	2	Surface Mount	Boot Security Cryptography Secure Debug Secure Fusebox Tamper Detection Volatile key Storage	I2C MMC PCIe SD SPI UART
NXP USA Inc. T1023NXN7MQA	8	GbE	64 Bit	2 Core	105 °C	-40 °C	PowerPC e5500	No	1.2 GHz	525-FBGA FCBGA	19 mm	525-FCPBGA	19 mm	DDR3L DDR4	2 count	USB 2.0 + PHY	3 Gbps	SATA	2	Surface Mount	Boot Security Cryptography Secure Debug Secure Fusebox Tamper Detection Volatile key Storage	I2C MMC PCIe SD SPI UART
NXP USA Inc. T1023NSE7PQA	8	GbE	64 Bit	2 Core	105 °C	0 °C	PowerPC e5500	No	1.4 GHz	525-FBGA FCBGA	19 mm	525-FCPBGA	19 mm	DDR3L DDR4	2 count	USB 2.0 + PHY	3 Gbps	SATA	2	Surface Mount	Boot Security Cryptography Secure Debug Secure Fusebox Tamper Detection Volatile key Storage	I2C MMC PCIe SD SPI UART
