1776112 Series

Catalog

FIXED TERMINAL BLOCKS 2P 3.50MM SIDE ENTRY HIGH TMP

Part	Screw Thread	Plating	Contact Material	Clamp Material	Clamp Plating	Operating Temperature (Min)	Operating Temperature (Max)	Screw Plating	Screw Material	Housing Material	Pitch	Current	Positions Per Level	Mating Orientation	Mounting Type	Wire Termination	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Number of Levels	Voltage	Color

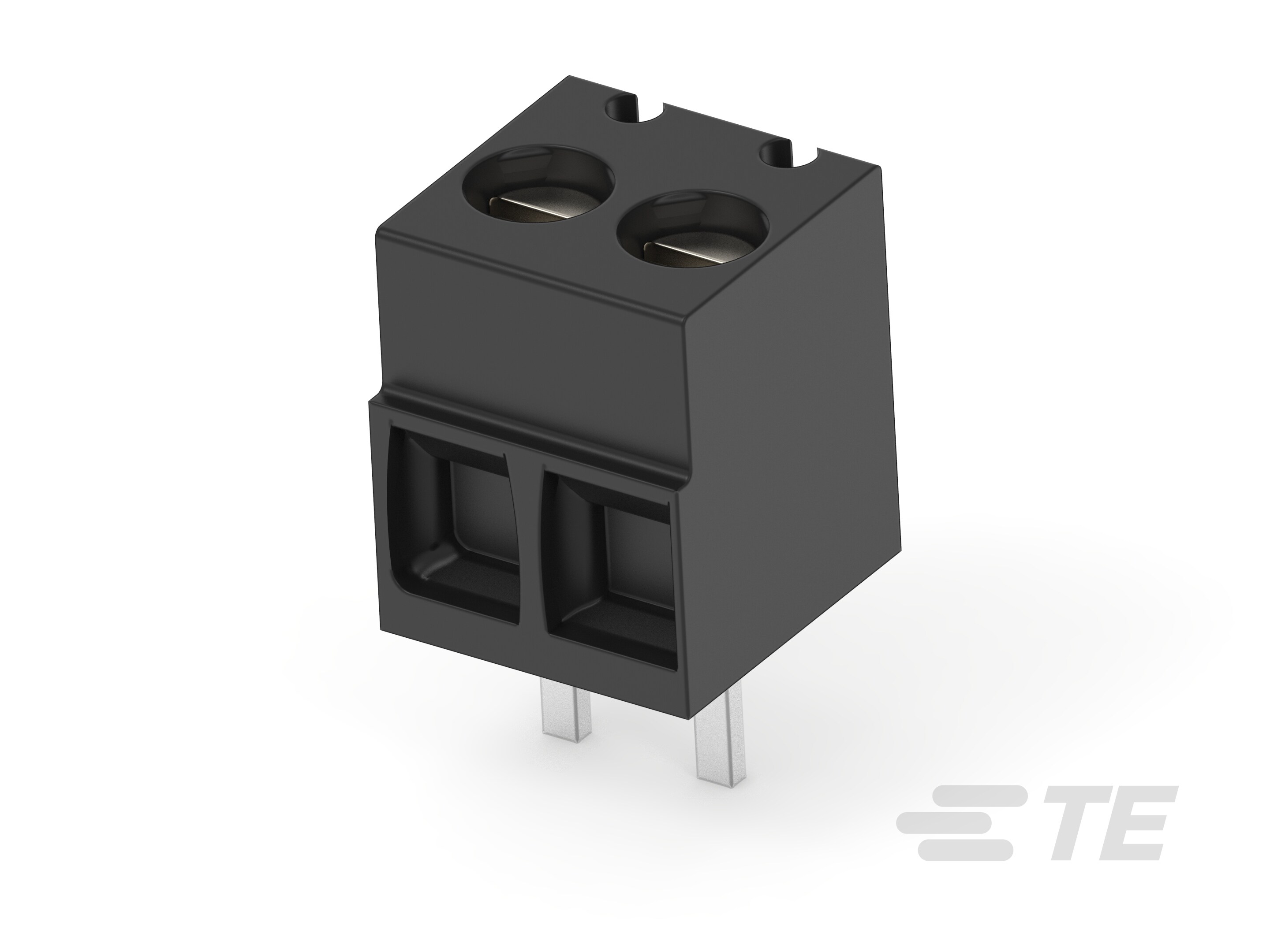

TE Connectivity AMP Connectors 2-1776112-2	M2	Tin Plated	Copper Alloy	Copper Alloy	Nickel Plated	-40 °C	110 °C	Nickel Plated	Copper Alloy	Nylon PA Polyamide	0.138 in	12 A	2	Horizontal with Board	Through Hole	Rising Cage Clamp Screw	16 AWG	28 AWG	1	150 V	Black
TE Connectivity AMP Connectors 1776112-3	M2	Tin Plated	Copper Alloy	Copper Alloy	Nickel Plated	-40 °C	110 °C	Nickel Plated	Copper Alloy	Nylon PA Polyamide	0.138 in	12 A	3	Horizontal with Board	Through Hole	Rising Cage Clamp Screw	16 AWG	28 AWG	1	150 V	Black
TE Connectivity AMP Connectors 2-1776112-3	M2	Tin Plated	Copper Alloy	Copper Alloy	Nickel Plated	-40 °C	110 °C	Nickel Plated	Copper Alloy	Nylon PA Polyamide	0.138 in	12 A	3	Horizontal with Board	Through Hole	Rising Cage Clamp Screw	16 AWG	28 AWG	1	150 V	Black
TE Connectivity AMP Connectors 2-1776112-4	M2	Tin Plated	Copper Alloy	Copper Alloy	Nickel Plated	-40 °C	110 °C	Nickel Plated	Copper Alloy	Nylon PA Polyamide	0.138 in	12 A	4	Horizontal with Board	Through Hole	Rising Cage Clamp Screw	16 AWG	28 AWG	1	150 V	Black
