3412 Series

Catalog

TERMINALS UNSUL SPADE 16-14 10

Part	Length - Termination	Tongue Inside Opening	Length - Ring Center to Termination	Terminal Type	Features	Insulation	Width - Outer Edges	Stud/Tab Size	Contact Finish	Mounting Type	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Termination	Contact Material	Length - Overall	Thickness	Stud/Tab Size (Type)	Stud/Tab Size
TE Connectivity AMP Connectors 34129
TE Connectivity AMP Connectors 34129	0.181 in	0.197 in	0.312 in	Standard	Brazed Seam Serrated Termination	Non-Insulated	0.385 in	10 Stud	Tin	Free Hanging (In-Line)	16 AWG	14 AWG	Crimp	Copper	0.685 in
TE Connectivity AMP Connectors 34121				Circular	Brazed Seam Serrated Termination	Non-Insulated	0.343 in	6 Stud	Tin	Free Hanging (In-Line)	16 AWG	14 AWG	Crimp	Copper	0.636 in	0.031 in

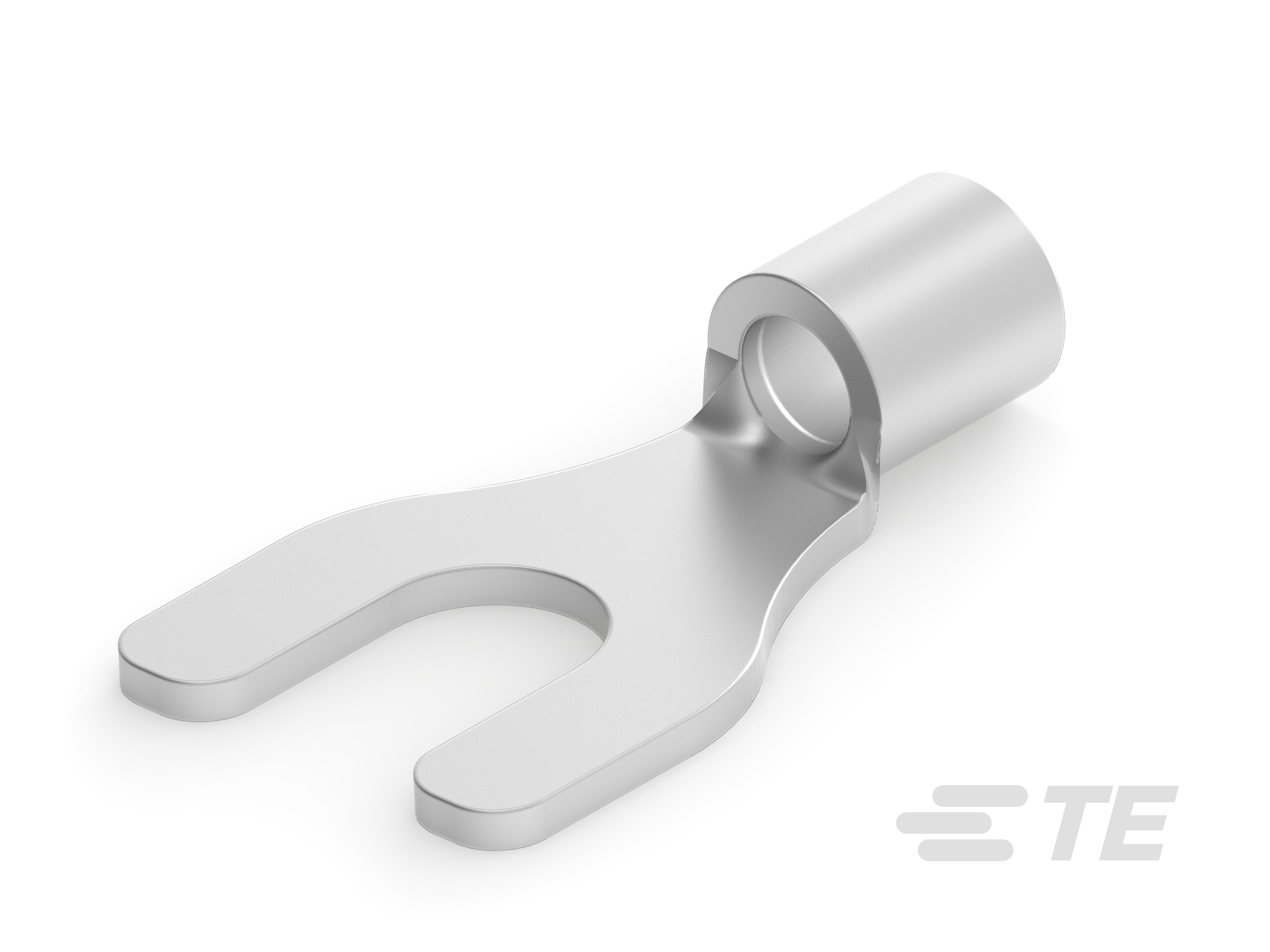

TE Connectivity AMP Connectors 34128	0.181 in	0.171 in	0.312 in	Standard	Brazed Seam Serrated Termination	Non-Insulated	0.385 in	8 Stud	Tin	Free Hanging (In-Line)	16 AWG	14 AWG	Crimp	Copper	0.685 in
TE Connectivity AMP Connectors 34125				Circular	Brazed Seam Serrated Termination	Non-Insulated	0.469 in	0.3125 in	Tin	Free Hanging (In-Line)	16 AWG	14 AWG	Crimp	Copper	0.855 in	0.031 in	Stud	16 Stud 5 Stud
TE Connectivity AMP Connectors 34126				Circular	Brazed Seam Serrated Termination	Non-Insulated	0.531 in	0.375 in	Tin	Free Hanging (In-Line)	16 AWG	14 AWG	Crimp	Copper	0.995 in	0.031 in		3 Stud 8 Stud
