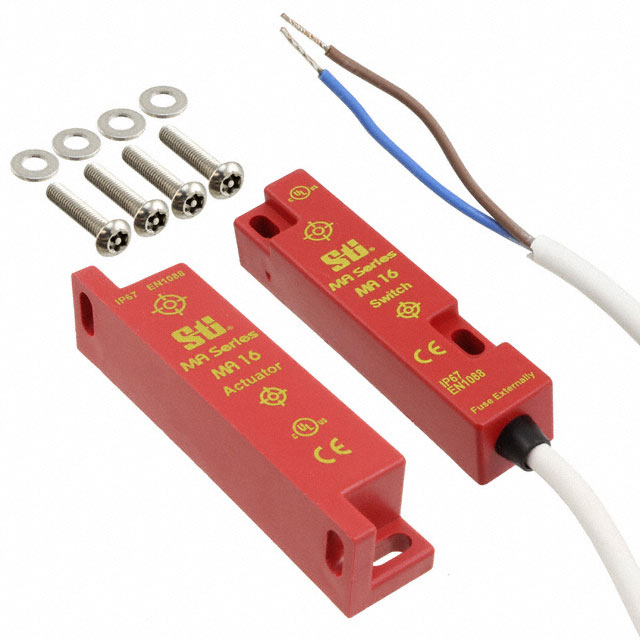

MA16DP Series

Catalog

INTERLOCK MAGNETIC DPST

Part	Must Operate (Length) (Max)	Must Operate (Length) (Min)	Actuator Type	Must Release (Min)	Must Release (Max)	Circuit	Approval Agency	Operating Temperature (Min)	Operating Temperature (Max)	Current Rating	Voltage Rating	Type	Ingress Protection Description	Ingress Protection IP Rating	Termination Style
Omron Automation and Safety MA16DP20C6	12 mm	7 mm	Non-Contact	12 mm	25 mm	DPST-NC	CE cULus	-10 °C	55 °C	1 A	30 V	Magnetic	Dust Tight Waterproof	IP67	Cable Leads
Omron Automation and Safety MA16DP21C3	12 mm	7 mm	Non-Contact	12 mm	25 mm	3PST-2NC/1NO	CE cULus	-10 °C	55 °C	1 A	30 V	Magnetic	Dust Tight Waterproof	IP67	Cable Leads
Omron Automation and Safety MA16DP20C3	12 mm	7 mm	Non-Contact	12 mm	25 mm	DPST-NC	CE cULus	-10 °C	55 °C	1 A	30 V	Magnetic	Dust Tight Waterproof	IP67	Cable Leads
Omron Automation and Safety MA16DP10C6	12 mm	7 mm	Non-Contact	12 mm	25 mm	SPST-NC	CE cULus	-10 °C	55 °C	1 A	30 V	Magnetic	Dust Tight Waterproof	IP67	Cable Leads
Omron Automation and Safety MA16DP11C6	12 mm	7 mm	Non-Contact	12 mm	25 mm	DPST-NO/NC	CE cULus	-10 °C	55 °C	1 A	30 V	Magnetic	Dust Tight Waterproof	IP67	Cable Leads
Omron Automation and Safety MA16DP21C6	12 mm	7 mm	Non-Contact	12 mm	25 mm	3PST-2NC/1NO	CE cULus	-10 °C	55 °C	1 A	30 V	Magnetic	Dust Tight Waterproof	IP67	Cable Leads
Omron Automation and Safety MA16DP11C3	12 mm	7 mm	Non-Contact	12 mm	25 mm	DPST-NO/NC	CE cULus	-10 °C	55 °C	1 A	30 V	Magnetic	Dust Tight Waterproof	IP67	Cable Leads
