749809 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

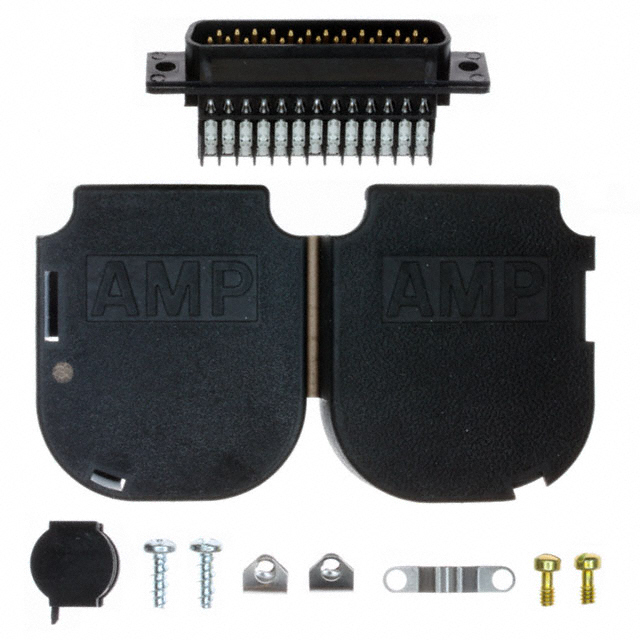

CONN D-SUB PLUG 25POS IDC
| Part | Connector Style | Contact Finish | Wire Gauge [Min] | Wire Gauge [Max] | Termination | Contact Finish Thickness | Flange Feature | Mounting Type | Contact Material | Color | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Current Rating (Amps) | Contact Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Material Flammability Rating | Number of Rows | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | D-Sub | Gold | 22 AWG | 26 AWG | Discrete Wire IDC | Flash | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | Phosphor Bronze | Black | 105 ░C | -55 °C | 250 VDC | Varies by Wire Gauge | Signal | B DB | 3 | UL94 V-0 | 2 | Male Pins Plug |
