485029 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

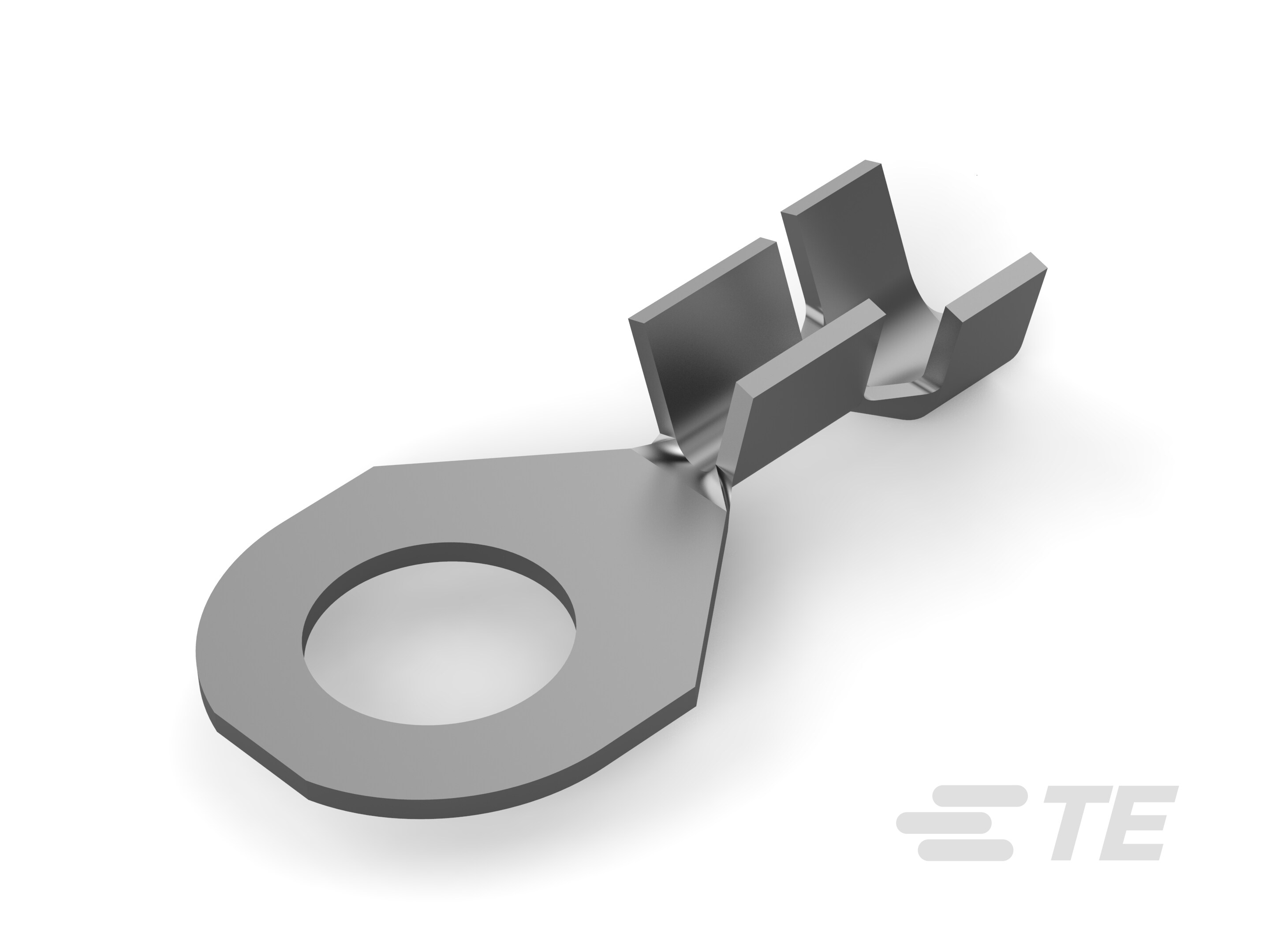

RING IS 18-14 1/4 .025TPBR ROHS COMPLIANT: YES
| Part | Stud/Tab Size | Thickness | Length - Overall | Termination | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Insulation | Contact Material | Width - Outer Edges | Terminal Type | Features | Mounting Type | Contact Finish | Insulation Diameter (Max) | Insulation Diameter (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.25 Stud | 0.025 in | 0.93 in | Crimp | 18 AWG | 14 AWG | Non-Insulated | Brass | 0.47 in | D-Shaped | Serrated Termination | Free Hanging (In-Line) | Tin | 0.12 in | 0.085 in |
