282847 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

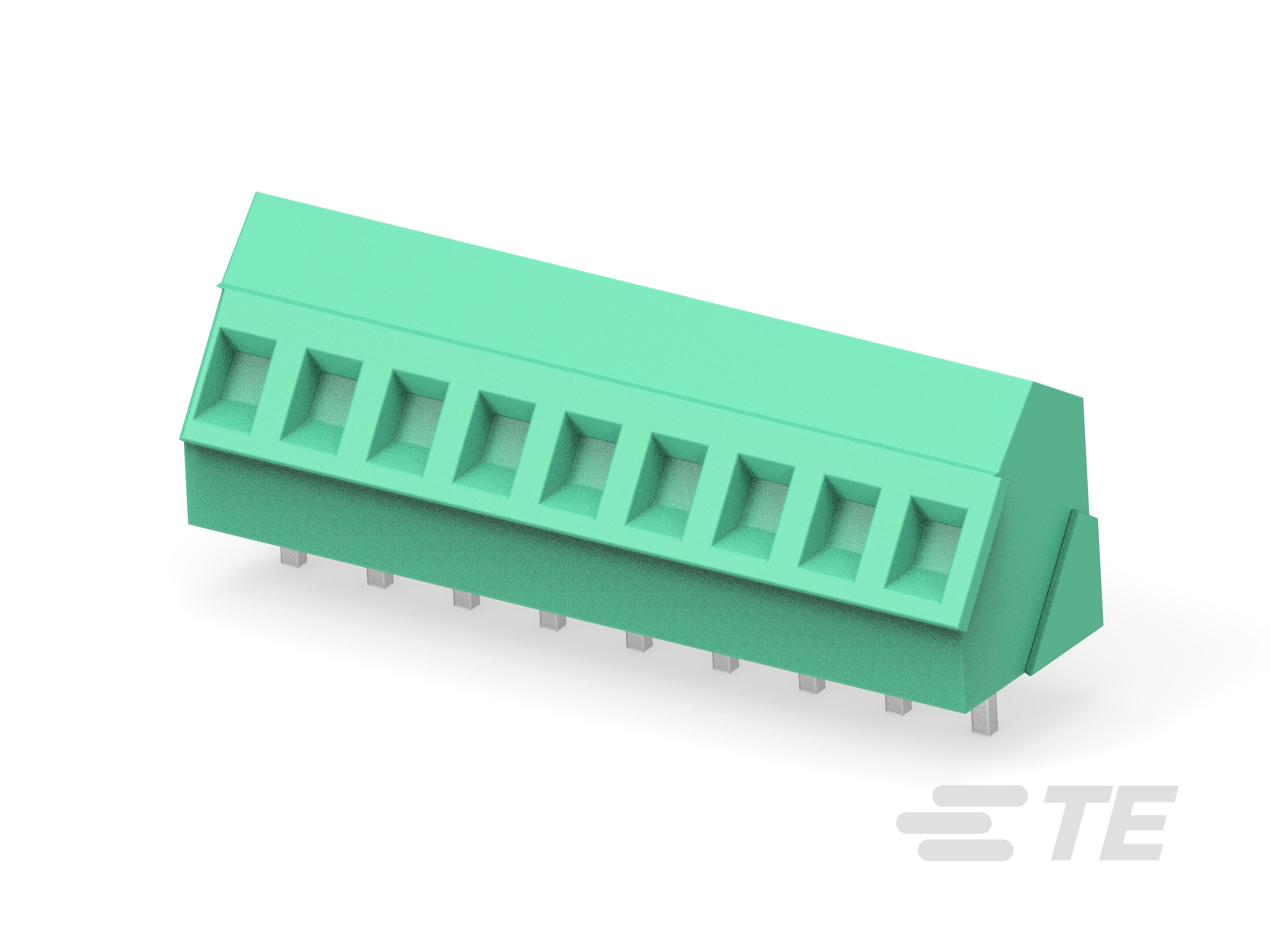

TERM BLOCK 9POS 35DEG 5.08MM PCB
| Part | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Mounting Type | Pitch | Voltage | Number of Levels | Mating Orientation (Angle) (Alternate) | Mating Orientation (Description) | Mating Orientation (Angle) | Color | Wire Termination | Current | Features | Positions Per Level | Contact Material | Plating | Screw Material | Screw Plating | Screw Thread | Housing Material | Clamp Material | Clamp Plating | Torque - Screw |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 12 AWG | 30 AWG | Through Hole | 5.08 mm | 300 V | 1 | 145 ° | Angle with Board | 35 ° | Green | Rising Cage Clamp Screw | 17.5 A | Interlocking (Side) | 9 | Brass | Tin Plated | Brass | Nickel Plated | M3 | Nylon 6/6 PA66 Polyamide | Brass | Nickel Plated | 0.79 Nm |
 TE Connectivity AMP Connectors | 12 AWG | 30 AWG | Through Hole | 5.08 mm | 300 V | 1 | 145 ° | Angle with Board | 35 ° | Green | Rising Cage Clamp Screw | 17.5 A | Interlocking (Side) | 10 | Brass | Tin Plated | Brass | Nickel Plated | M3 | Nylon 6/6 PA66 Polyamide | Brass | Nickel Plated | 0.79 Nm |
 TE Connectivity AMP Connectors | 12 AWG | 30 AWG | Through Hole | 5.08 mm | 300 V | 1 | 145 ° | Angle with Board | 35 ° | Green | Rising Cage Clamp Screw | 17.5 A | Interlocking (Side) | 6 | Brass | Tin Plated | Brass | Nickel Plated | M3 | Nylon 6/6 PA66 Polyamide | Brass | Nickel Plated | 0.79 Nm |

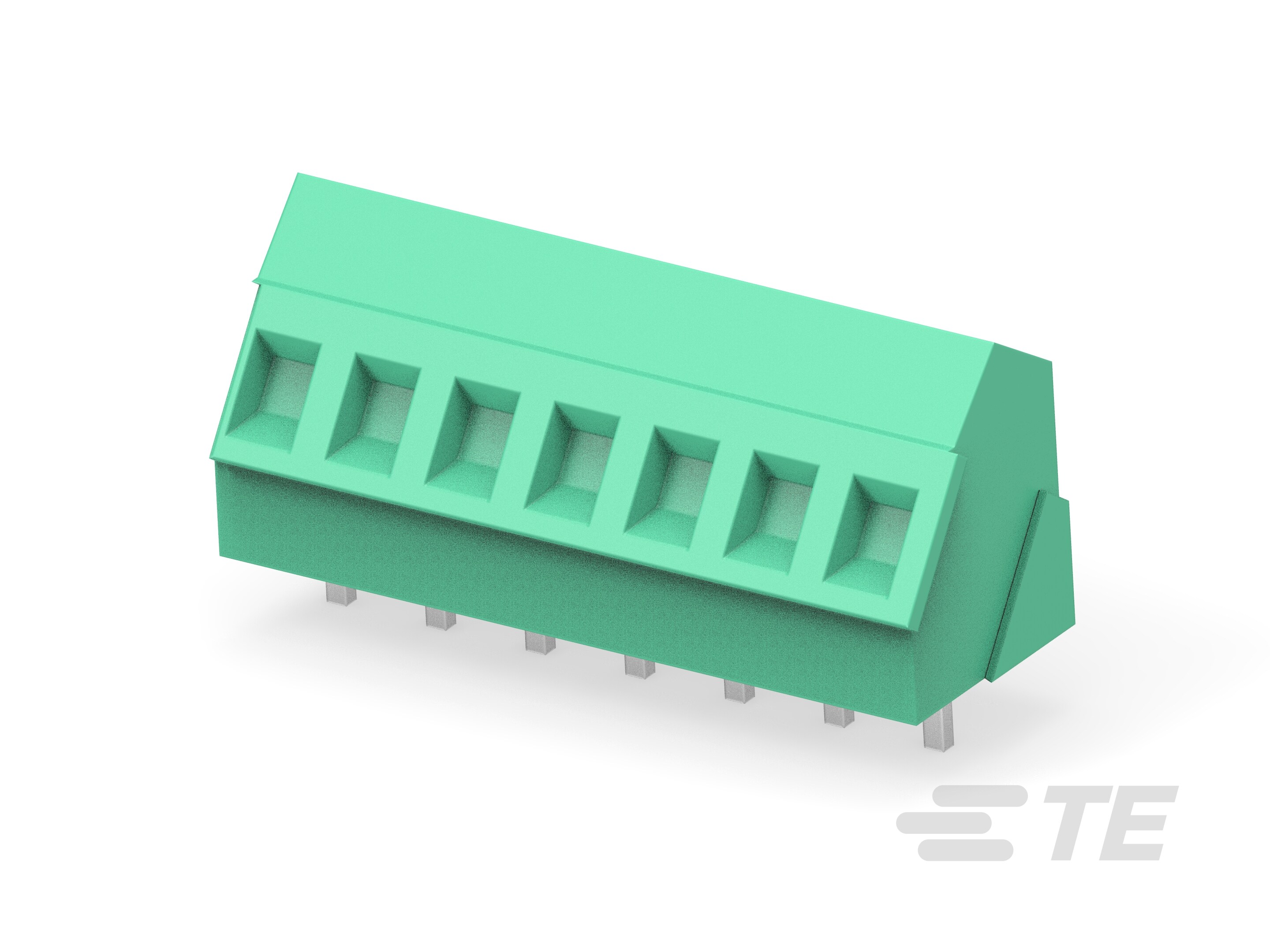

 TE Connectivity AMP Connectors | 12 AWG | 30 AWG | Through Hole | 5.08 mm | 300 V | 1 | 145 ° | Angle with Board | 35 ° | Green | Rising Cage Clamp Screw | 17.5 A | Interlocking (Side) | 7 | Brass | Tin Plated | Brass | Nickel Plated | M3 | Nylon 6/6 PA66 Polyamide | Brass | Nickel Plated | 0.79 Nm |
 TE Connectivity AMP Connectors | 12 AWG | 30 AWG | Through Hole | 5.08 mm | 300 V | 1 | 145 ° | Angle with Board | 35 ° | Green | Rising Cage Clamp Screw | 17.5 A | Interlocking (Side) | 8 | Brass | Tin Plated | Brass | Nickel Plated | M3 | Nylon 6/6 PA66 Polyamide | Brass | Nickel Plated | 0.79 Nm |
 TE Connectivity AMP Connectors | 12 AWG | 30 AWG | Through Hole | 5.08 mm | 300 V | 1 | 145 ° | Angle with Board | 35 ° | Green | Rising Cage Clamp Screw | 17.5 A | Interlocking (Side) Positions Stamped | 3 | Brass | Tin Plated | Brass | Nickel Plated | M3 | Nylon 6/6 PA66 Polyamide | Brass | Nickel Plated | 0.79 Nm |
