292173 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CT BOX HDR H SMT 6P O/TAPE NAT

Part	Current Rating	Insulation Color	Voltage Rating	Insulation Material	Material Flammability Rating	Pitch - Mating	Shrouding	Mounting Type	Contact Finish - Post	Connector Type	Fastening Type	Contact Shape	Number of Positions	Contact Length - Mating	Number of Positions Loaded	Insulation Height	Contact Type	Termination	Number of Rows	Features	Contact Finish - Mating	Contact Material	Style	Applications

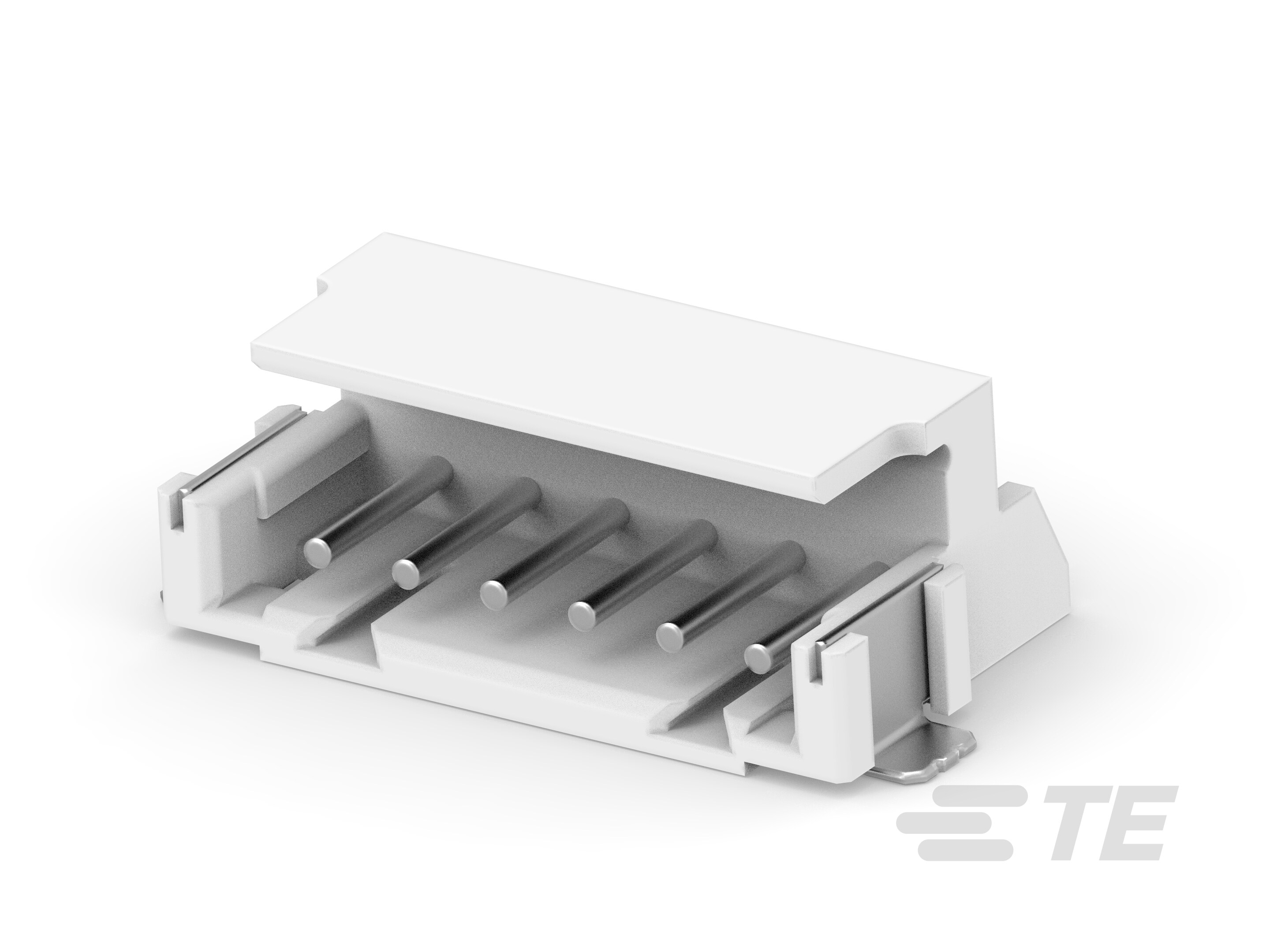

TE Connectivity AMP Connectors 3-292173-6	Varies by Wire Gauge	Natural	125 V	Glass Filled Nylon 6T Polyamide (PA6T)	UL94 V-0	0.079 in	Shrouded - 4 Wall	Right Angle Surface Mount	Tin	Header	Detent Lock	Square	6	0.165 in	All	0.228 in	Male Pin	Solder	1	Solder Retention	Tin	Brass	Board Cable/Wire	General Purpose
TE Connectivity AMP Connectors 292173-6	Varies by Wire Gauge	Black	125 V	Glass Filled Nylon 6T Polyamide (PA6T)	UL94 V-0	0.079 in	Shrouded - 4 Wall	Right Angle Surface Mount	Tin	Header	Detent Lock	Square	6	0.165 in	All	0.228 in	Male Pin	Solder	1	Board Guide Solder Retention	Tin	Brass	Board Cable/Wire	General Purpose
TE Connectivity AMP Connectors 3-292173-4	Varies by Wire Gauge	Natural	125 V	Glass Filled Nylon 6T Polyamide (PA6T)	UL94 V-0	0.079 in	Shrouded - 4 Wall	Right Angle Surface Mount	Tin	Header	Detent Lock	Square	4	0.165 in	All	0.228 in	Male Pin	Solder	1	Solder Retention	Tin	Brass	Board Cable/Wire	General Purpose
TE Connectivity AMP Connectors 292173-5	Varies by Wire Gauge	Black	125 V	Glass Filled Nylon 6T Polyamide (PA6T)	UL94 V-0	0.079 in	Shrouded - 4 Wall	Right Angle Surface Mount	Tin	Header	Detent Lock	Square	5	0.165 in	All	0.228 in	Male Pin	Solder	1	Board Guide Solder Retention	Tin	Brass	Board Cable/Wire	General Purpose
TE Connectivity AMP Connectors 3-292173-7	Varies by Wire Gauge	Natural	125 V	Glass Filled Nylon 6T Polyamide (PA6T)	UL94 V-0	0.079 in	Shrouded - 4 Wall	Right Angle Surface Mount	Tin	Header	Detent Lock	Square	7	0.165 in	All	0.228 in	Male Pin	Solder	1	Solder Retention	Tin	Brass	Board Cable/Wire	General Purpose
TE Connectivity AMP Connectors 3-292173-3	Varies by Wire Gauge	Natural	125 V	Glass Filled Nylon 6T Polyamide (PA6T)	UL94 V-0	0.079 in	Shrouded - 4 Wall	Right Angle Surface Mount	Tin	Header	Detent Lock	Square	3	0.165 in	All	0.228 in	Male Pin	Solder	1	Solder Retention	Tin	Brass	Board Cable/Wire	General Purpose

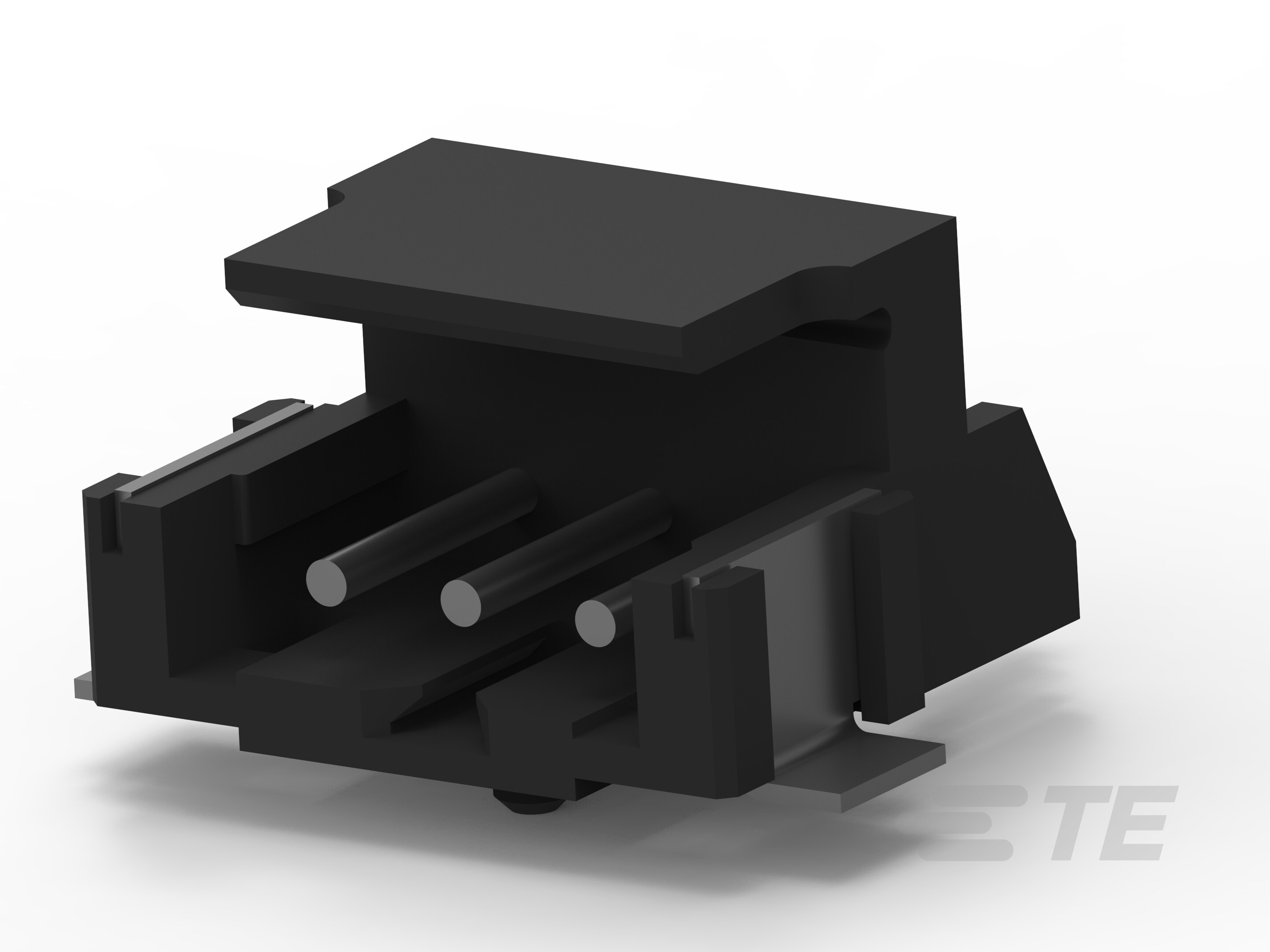

TE Connectivity AMP Connectors 292173-3	Varies by Wire Gauge	Black	125 V	Glass Filled Nylon 6T Polyamide (PA6T)	UL94 V-0	0.079 in	Shrouded - 4 Wall	Right Angle Surface Mount	Tin	Header	Detent Lock	Square	3	0.165 in	All	0.228 in	Male Pin	Solder	1	Board Guide Solder Retention	Tin	Brass	Board Cable/Wire	General Purpose
TE Connectivity AMP Connectors 2-292173-6	Varies by Wire Gauge	Black	125 V	Glass Filled Nylon 6T Polyamide (PA6T)	UL94 V-0	0.079 in	Shrouded - 4 Wall	Right Angle Surface Mount	Tin	Header	Detent Lock	Square	6	0.165 in	All	0.228 in	Male Pin	Solder	1	Solder Retention	Tin	Brass	Board Cable/Wire	General Purpose

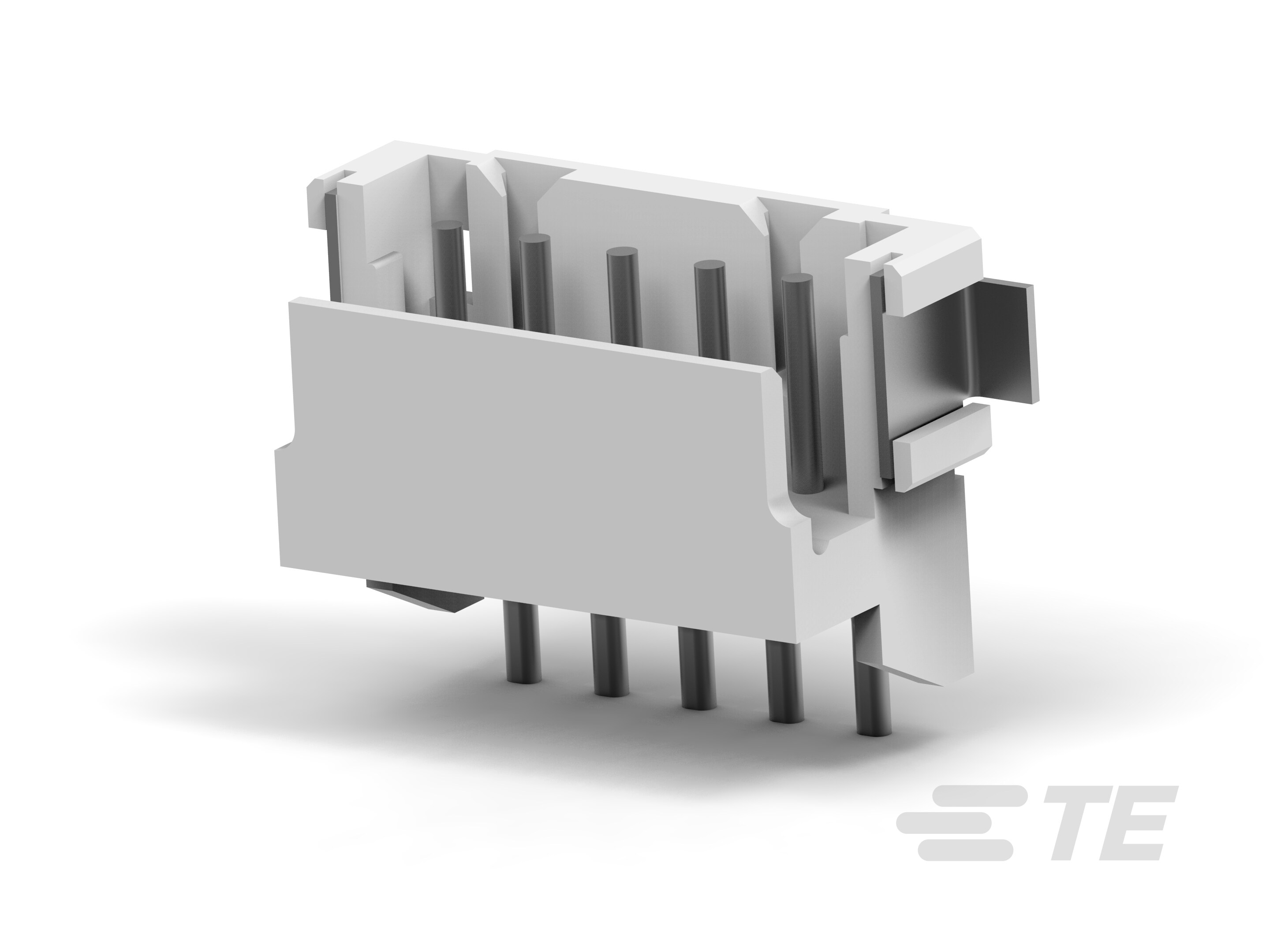

TE Connectivity AMP Connectors 1-292173-5	Varies by Wire Gauge	Natural	125 V	Glass Filled Nylon 6T Polyamide (PA6T)	UL94 V-0	0.079 in	Shrouded - 4 Wall	Right Angle Surface Mount	Tin	Header	Detent Lock	Square	5	0.165 in	All	0.228 in	Male Pin	Solder	1	Board Guide Solder Retention	Tin	Brass	Board Cable/Wire	General Purpose
TE Connectivity AMP Connectors 292173-9	Varies by Wire Gauge	Black	125 V	Glass Filled Nylon 6T Polyamide (PA6T)	UL94 V-0	0.079 in	Shrouded - 4 Wall	Right Angle Surface Mount	Tin	Header	Detent Lock	Square	9	0.165 in	All	0.228 in	Male Pin	Solder	1	Board Guide Solder Retention	Tin	Brass	Board Cable/Wire	General Purpose
