50935 Series

Catalog

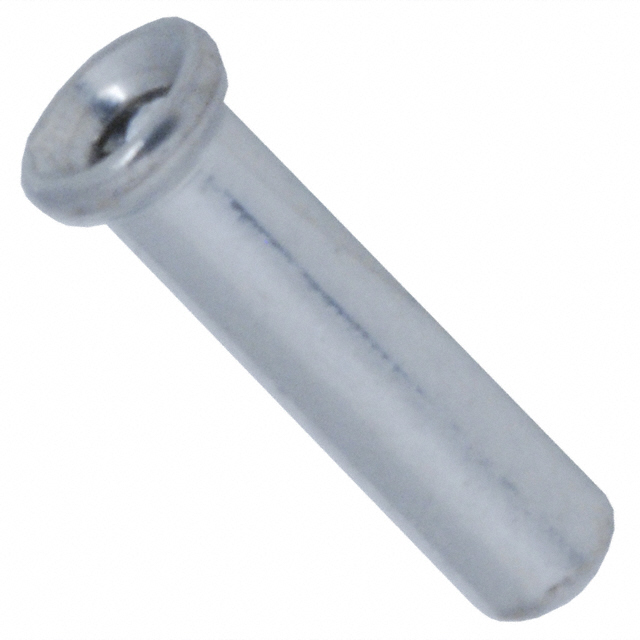

TURRET TERMINAL, NON INSULATED, 4.27MM L ROHS COMPLIANT: YES

Part	Operating Temperature (Min)	Operating Temperature (Max)	Features	Length - Overall	Contact Material	Mounting Hole Diameter (Min)	Mounting Hole Diameter (Max)	Contact Finish Thickness	Accepts Pin Diameter (Max)	Accepts Pin Diameter (Min)	Flange Diameter	Socket Depth	Contact Finish	Termination	Tail Type

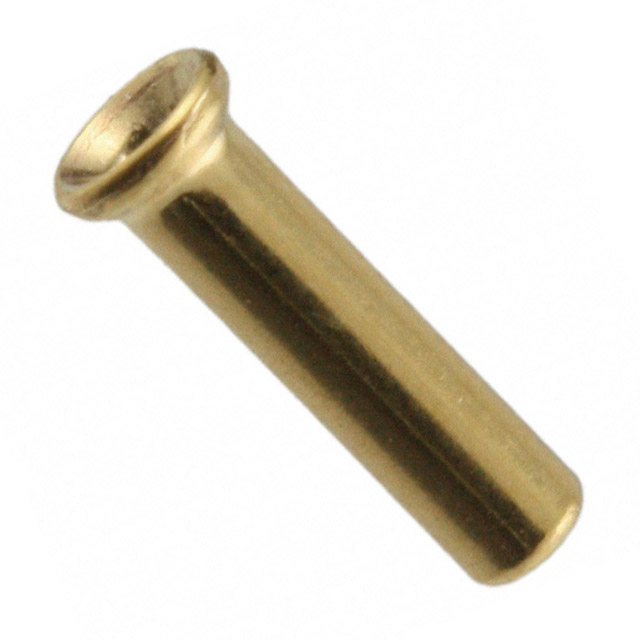

TE Connectivity AMP Connectors 50935-6	-65 °C	126 °C	Open Bottom	0.168 in	Beryllium Copper	0.04 in	0.041 in	30 µin	0.02 in	0.013 in	0.059 in	0.155 in	Gold	Solder	No Tail
TE Connectivity AMP Connectors 50935-2	-65 °C	126 °C	Closed Bottom	0.168 in	Beryllium Copper	0.04 in	0.041 in	100 µin	0.02 in	0.013 in	0.059 in	0.155 in	Tin	Solder	No Tail
