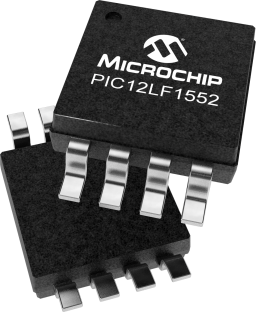

PIC12LF1552 Series

Catalog

8 BIT MCU, PIC12 FAMILY PIC12LF15XX SERIES MICROCONTROLLERS, PIC12, 32 MHZ, 3.5 KB, 8 PINS

Part	Package / Case	Core Size (Bit Width)	Peripherals	Program Memory Size	Program Memory Depth	Program Memory Width	A/D Channels	A/D Resolution (bits)	Connectivity	Mounting Type	Number of I/O	Program Memory Type	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Package Length	Package Name	Package Width	Speed	Oscillator Type	Operating Temperature (Max)	Operating Temperature (Min)	RAM Size Width	RAM Size Depth	Core Processor
Microchip Technology PIC12LF1552T-I/MU	8-UFDFN Exposed Pad	8 Bit	Brown-out Detect POR PWM Reset WDT	3.5 KB	2 K	14	4 count	10 bit	I2C SPI	Surface Mount	5	FLASH	3.6 V	1.8 V	2 mm	8-UDFN	3 mm	32 MHz	Internal	85 °C	-40 °C	8 bit	256	PIC
Microchip Technology PIC12LF1552-E/P		8 Bit	Brown-out Detect POR PWM Reset WDT	3.5 KB	2 K	14	4 count	10 bit	I2C SPI	Through Hole	5	FLASH	3.6 V	1.8 V	0.3 in	8-DIP 8-PDIP	7.62 mm	32 MHz	Internal	125 °C	-40 °C	8 bit	256	PIC
Microchip Technology PIC12LF1552-I/SN		8 Bit	Brown-out Detect POR PWM Reset WDT	3.5 KB	2 K	14	4 count	10 bit	I2C SPI	Surface Mount	5	FLASH	3.6 V	1.8 V	0.154 in	8-SOIC	3.9 mm	32 MHz	Internal	85 °C	-40 °C	8 bit	256	PIC
Microchip Technology PIC12LF1552T-I/SN		8 Bit	Brown-out Detect POR PWM Reset WDT	3.5 KB	2 K	14	4 count	10 bit	I2C SPI	Surface Mount	5	FLASH	3.6 V	1.8 V	0.154 in	8-SOIC	3.9 mm	32 MHz	Internal	85 °C	-40 °C	8 bit	256	PIC
Microchip Technology PIC12LF1552-E/SN		8 Bit	Brown-out Detect POR PWM Reset WDT	3.5 KB	2 K	14	4 count	10 bit	I2C SPI	Surface Mount	5	FLASH	3.6 V	1.8 V	0.154 in	8-SOIC	3.9 mm	32 MHz	Internal	125 °C	-40 °C	8 bit	256	PIC
Microchip Technology PIC12LF1552T-I/MS		8 Bit	Brown-out Detect POR PWM Reset WDT	3.5 KB	2 K	14	4 count	10 bit	I2C SPI	Surface Mount	5	FLASH	3.6 V	1.8 V	0.118 in	8-MSOP 8-TSSOP 8-MSOP	3 mm	32 MHz	Internal	85 °C	-40 °C	8 bit	256	PIC
Microchip Technology PIC12LF1552-I/P		8 Bit	Brown-out Detect POR PWM Reset WDT	3.5 KB	2 K	14	4 count	10 bit	I2C SPI	Through Hole	5	FLASH	3.6 V	1.8 V	0.3 in	8-DIP 8-PDIP	7.62 mm	32 MHz	Internal	85 °C	-40 °C	8 bit	256	PIC
Microchip Technology PIC12LF1552-E/MS		8 Bit	Brown-out Detect POR PWM Reset WDT	3.5 KB	2 K	14	4 count	10 bit	I2C SPI	Surface Mount	5	FLASH	3.6 V	1.8 V	0.118 in	8-MSOP 8-TSSOP 8-MSOP	3 mm	32 MHz	Internal	125 °C	-40 °C	8 bit	256	PIC
Microchip Technology PIC12LF1552-I/MS		8 Bit	Brown-out Detect POR PWM Reset WDT	3.5 KB	2 K	14	4 count	10 bit	I2C SPI	Surface Mount	5	FLASH	3.6 V	1.8 V	0.118 in	8-MSOP 8-TSSOP 8-MSOP	3 mm	32 MHz	Internal	85 °C	-40 °C	8 bit	256	PIC
