SST39VF040 Series

Catalog

IC FLASH 4MBIT PARALLEL 32TSOP

Part	Write Cycle Time - Word	Write Cycle Time - Page	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Memory Width	Memory Depth	Package Length	Package Name	Package Width	Memory Interface (Type)	Mounting Type	Technology	Access Time	Memory Format	Operating Temperature (Min)	Operating Temperature (Max)	Memory Type	Memory Size	Package / Case
Microchip Technology SST39VF040-70-4C-WHE-T	20 µs	20 µs	3.6 V	2.7 V	8 bit	512 K	0.488 "	32-TFSOP 32-TSOP	12.4 mm	Parallel	Surface Mount	FLASH	70 ns	FLASH	0 °C	70 °C	Non-Volatile	4 Mbit

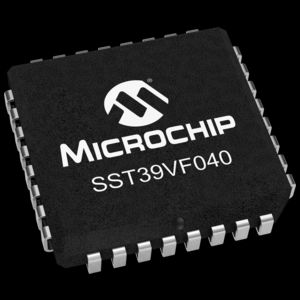

Microchip Technology SST39VF040-70-4C-NHE-T	20 µs	20 µs	3.6 V	2.7 V	8 bit	512 K	0.45 in	32-PLCC	13.97 mm	Parallel	Surface Mount	FLASH	70 ns	FLASH	0 °C	70 °C	Non-Volatile	4 Mbit	32-LCC (J-Lead)
Microchip Technology SST39VF040-70-4I-NHE-T	20 µs	20 µs	3.6 V	2.7 V	8 bit	512 K	0.45 in	32-PLCC	13.97 mm	Parallel	Surface Mount	FLASH	70 ns	FLASH	-40 °C	85 °C	Non-Volatile	4 Mbit	32-LCC (J-Lead)
Microchip Technology SST39VF040-70-4C-B3KE	20 µs	20 µs	3.6 V	2.7 V	8 bit	512 K		48-TFBGA		Parallel	Surface Mount	FLASH	70 ns	FLASH	0 °C	70 °C	Non-Volatile	4 Mbit	48-TFBGA
Microchip Technology SST39VF040-70-4I-WHE-T	20 µs	20 µs	3.6 V	2.7 V	8 bit	512 K	0.488 "	32-TFSOP 32-TSOP	12.4 mm	Parallel	Surface Mount	FLASH	70 ns	FLASH	-40 °C	85 °C	Non-Volatile	4 Mbit
Microchip Technology SST39VF040-70-4C-NHE	20 µs	20 µs	3.6 V	2.7 V	8 bit	512 K	0.45 in	32-PLCC	13.97 mm	Parallel	Surface Mount	FLASH	70 ns	FLASH	0 °C	70 °C	Non-Volatile	4 Mbit	32-LCC (J-Lead)
Microchip Technology SST39VF040-70-4I-WHE	20 µs	20 µs	3.6 V	2.7 V	8 bit	512 K	0.488 "	32-TFSOP 32-TSOP	12.4 mm	Parallel	Surface Mount	FLASH	70 ns	FLASH	-40 °C	85 °C	Non-Volatile	4 Mbit
Microchip Technology SST39VF040-70-4C-WHE	20 µs	20 µs	3.6 V	2.7 V	8 bit	512 K	0.488 "	32-TFSOP 32-TSOP	12.4 mm	Parallel	Surface Mount	FLASH	70 ns	FLASH	0 °C	70 °C	Non-Volatile	4 Mbit
Microchip Technology SST39VF040-70-4I-NHE	20 µs	20 µs	3.6 V	2.7 V	8 bit	512 K	0.45 in	32-PLCC	13.97 mm	Parallel	Surface Mount	FLASH	70 ns	FLASH	-40 °C	85 °C	Non-Volatile	4 Mbit	32-LCC (J-Lead)
