7015-10 Series

Catalog

CBL ASSY 2.92MM JACK TO PLUG 6"

Part	2nd Connector Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	2nd Contact Gender	1st Contact Gender	1st Connector Mounting Feature	1st Connector Mounting Type	1st Connector Size	1st Connector	Overall Impedance	2nd Connector Diameter	2nd Connector	Length	Style	Frequency - Max	Features	Cable Type Size	Cable Type	Cable Diameter	Color	Cable Outer Diameter

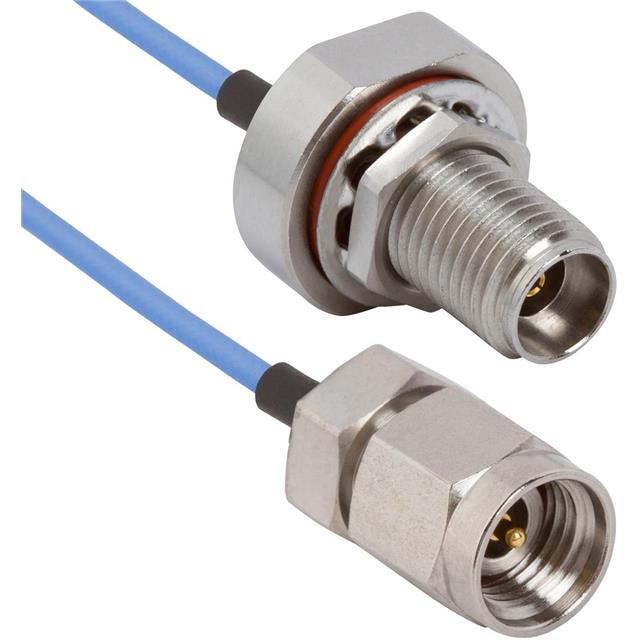

McGill Microwave Systems 7015-1064	Free Hanging (In-Line)	-65 °C	165 °C	Male	Female	Bulkhead Front Side Nut	Panel Mount	2.92 mm	Jack	50 Ohms	2.92 mm	Plug	0.5 ft	2.92mm to 2.92mm	40 Gbps	Shielded	0.047 " 0.047	Rigid Cable Semi Semi-Rigid Cable	0.047 "	Blue

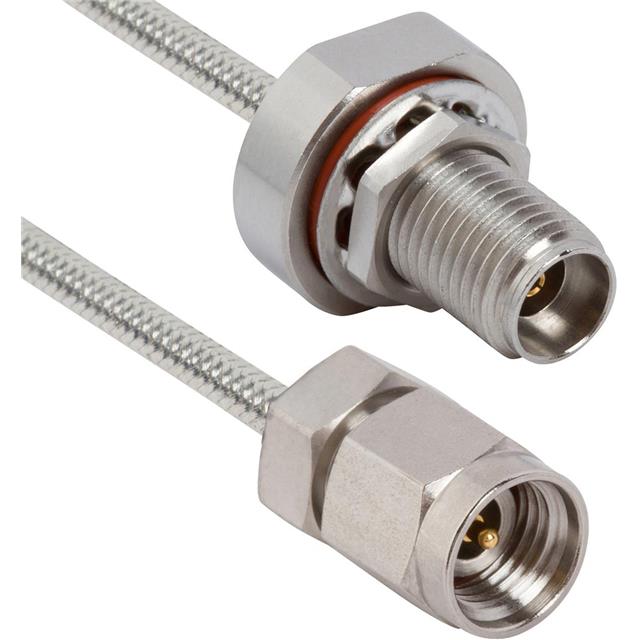

McGill Microwave Systems 7015-1078	Free Hanging (In-Line)	-65 °C	165 °C	Male	Female	Bulkhead Front Side Nut	Panel Mount	2.92 mm	Jack	50 Ohms	2.92 mm	Plug	0.5 ft	2.92mm to 2.92mm	40 Gbps		0.086 0.086 "	Rigid Cable Semi Semi-Rigid Cable	0.086 "	Silver

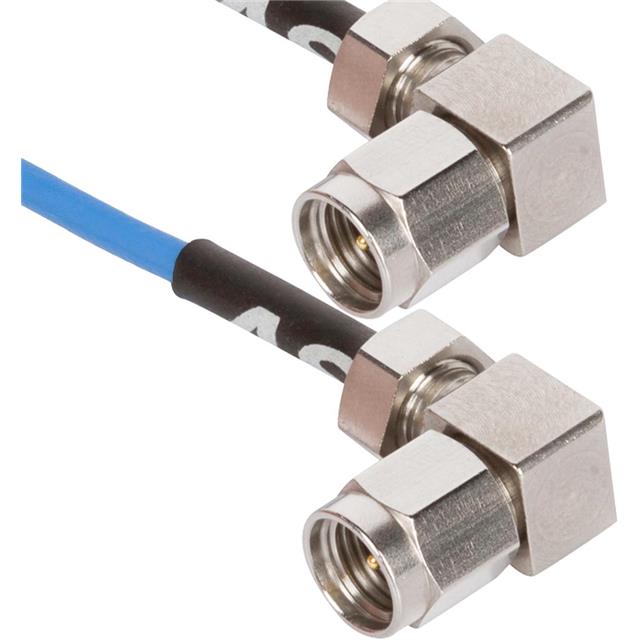

McGill Microwave Systems 7015-1001	Free Hanging (In-Line)	-65 °C	165 °C	Male	Male		Free Hanging (In-Line)	2.92 mm	Plug Right Angle	50 Ohms	2.92 mm	Plug Right Angle	12 in	2.92mm to 2.92mm	40 Gbps	Shielded	405	TFlex		Blue

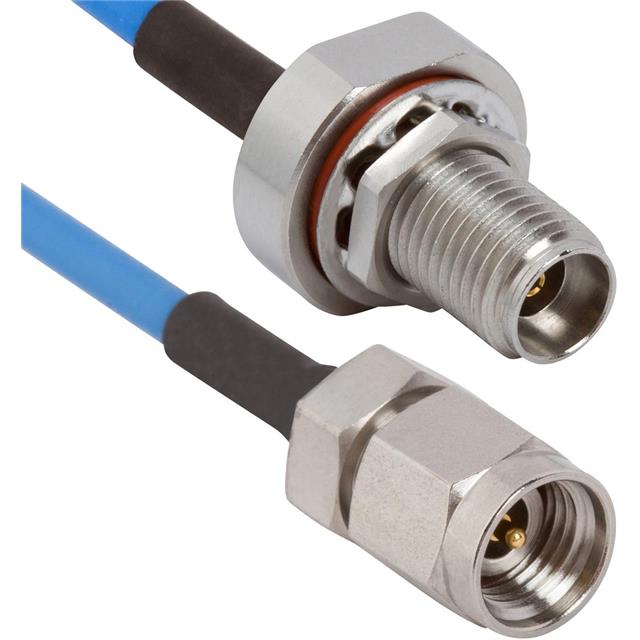

McGill Microwave Systems 7015-1065	Free Hanging (In-Line)	-65 °C	165 °C	Male	Female	Bulkhead Front Side Nut	Panel Mount		SMA Jack	50 Ohms		SMA Plug	0.5 ft	SMA	40 Gbps	Shielded	0.086 0.086 "	Rigid Cable Semi Semi-Rigid Cable	0.086 "	Blue

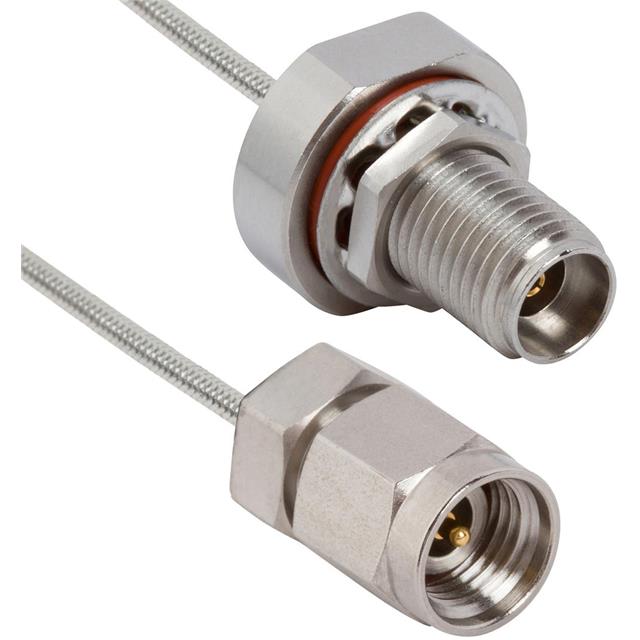

McGill Microwave Systems 7015-1077	Free Hanging (In-Line)	-65 °C	165 °C	Male	Female	Bulkhead Front Side Nut	Panel Mount	2.92 mm	Jack	50 Ohms	2.92 mm	Plug	0.5 ft	2.92mm to 2.92mm	40 Gbps		0.047 0.047 "	Flexible Cable	0.047 "	Silver	0.047 "
McGill Microwave Systems 7015-1000	Free Hanging (In-Line)	-65 °C	165 °C	Male	Male		Free Hanging (In-Line)	2.92 mm	Plug Right Angle	50 Ohms	2.92 mm	Plug Right Angle	0.5 ft	2.92mm to 2.92mm	40 Gbps	Shielded	405	TFlex		Blue
