MCP1257 Series

Catalog

IC,SMPS CONTROLLER,VOLTAGE-MODE,MOS,TSSOP,10PIN,PLASTIC ROHS COMPLIANT: YES

Part	Operating Temperature (Max)	Operating Temperature (Min)	Output Configuration	Voltage - Input (Min)	Package Name	Topology	Package Length	Package Width	Synchronous Rectifier	Frequency - Switching	Voltage - Input (Max)	Number of Outputs	Current - Output	Mounting Type	Function	Voltage - Output (Min/Fixed)	Output Type	Package / Case

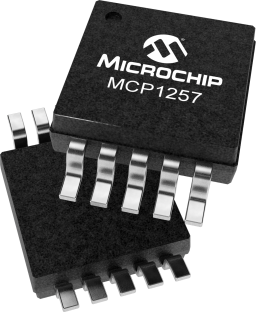

Microchip Technology MCP1257T-E/UN	125 °C	-40 °C	Positive	1.8 V	10-MSOP 10-TFSOP	Charge Pump	0.118 in	3 mm	No	650 kHz	3.6 V	1	100 mA	Surface Mount	Step-Up	3.3 V	Fixed
Microchip Technology MCP1257-E/UN	125 °C	-40 °C	Positive	1.8 V	10-MSOP 10-TFSOP	Charge Pump	0.118 in	3 mm	No	650 kHz	3.6 V	1	100 mA	Surface Mount	Step-Up	3.3 V	Fixed

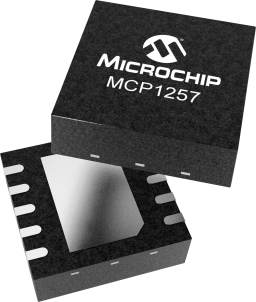

Microchip Technology MCP1257-E/MF	125 °C	-40 °C	Positive	1.8 V	10-DFN	Charge Pump	3 mm	3 mm	No	650 kHz	3.6 V	1	100 mA	Surface Mount	Step-Up	3.3 V	Fixed	10-VFDFN Exposed Pad
Microchip Technology MCP1257T-E/MF	125 °C	-40 °C	Positive	1.8 V	10-DFN	Charge Pump	3 mm	3 mm	No	650 kHz	3.6 V	1	100 mA	Surface Mount	Step-Up	3.3 V	Fixed	10-VFDFN Exposed Pad
