070555 Series

Manufacturer: Molex

Catalog

CONN SHROUDED HEADER (4 SIDES) HDR 18 POS 2.54MM SOLDER RA THRU-HOLE SL TUBE

Part	Number of Positions Loaded	Termination	Mounting Type	Contact Length - Mating	Contact Shape	Contact Finish Thickness - Mating	Shrouding	Fastening Type	Contact Finish - Mating	Insulation Material	Features	Contact Material	Voltage Rating	Material Flammability Rating	Contact Type	Operating Temperature (Min)	Operating Temperature (Max)	Connector Type	Number of Rows	Contact Length - Post	Pitch - Mating	Insulation Color	Number of Positions	Style	Contact Finish - Post	Insulation Height	Contact Finish Thickness - Post	Applications

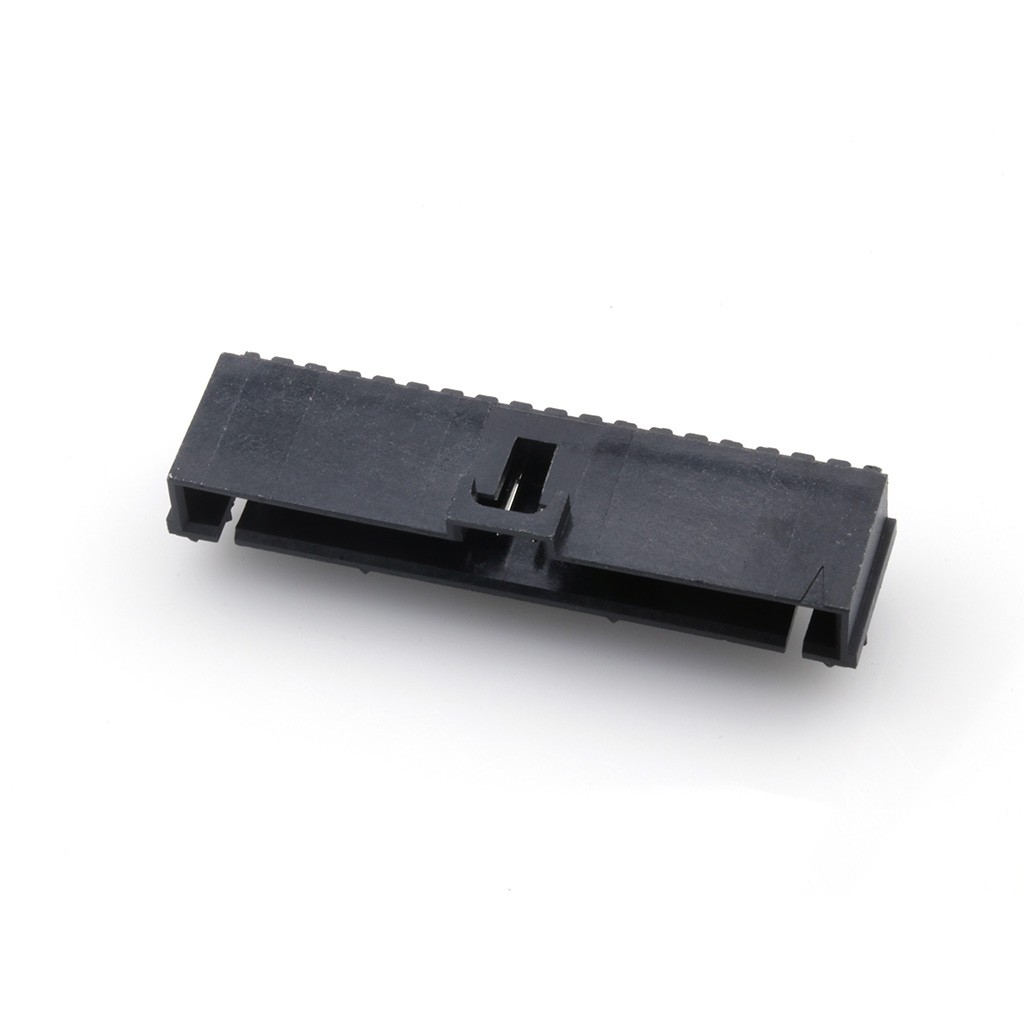

Molex 0705550052	All	Solder	Right Angle Through Hole	0.24 in	Square	15 µin	Shrouded - 4 Wall	Latch Holder	Gold	Glass Filled Polyester	Board Guide	Phosphor Bronze	250 V	UL94 V-0	Male Pin	-40 °C	105 °C	Header	1	0.13 in	0.1 in	Black	18	Board Cable/Wire	Tin	0.215 in	74.8 µin	Automotive General Purpose Industrial Medical
Molex 0705550017	All	Solder	Right Angle Through Hole	0.24 in	Square	150 µin	Shrouded - 4 Wall	Latch Holder	Tin	Glass Filled Polyester	Board Guide	Phosphor Bronze	250 V	UL94 V-0	Male Pin	-40 °C	105 °C	Header	1	0.13 in	0.1 in	Black	18	Board Cable/Wire	Tin	0.215 in	150 µin	Automotive General Purpose Industrial Medical

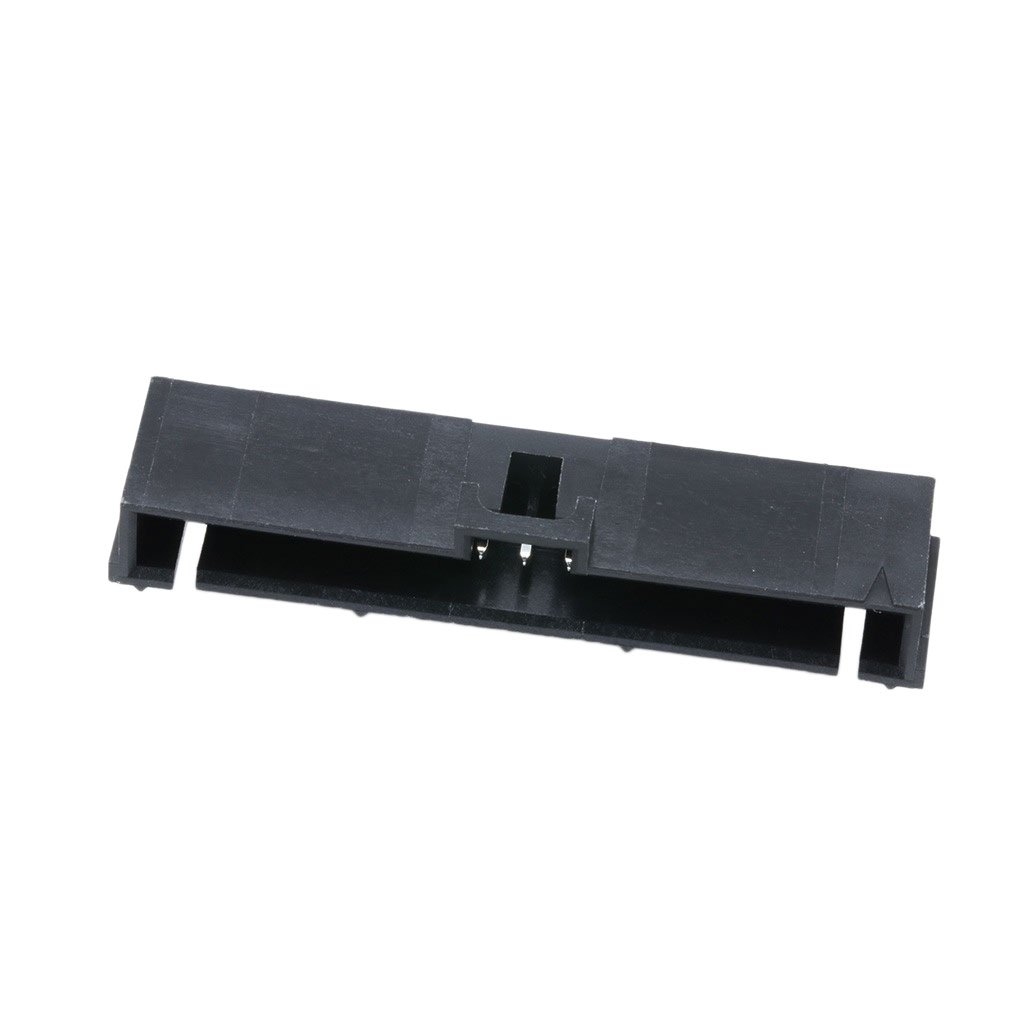

Molex 0705550086	All	Solder	Right Angle Through Hole	0.24 in	Square	30 µin	Shrouded - 4 Wall	Latch Holder	Gold	Glass Filled Polyester	Board Guide	Phosphor Bronze	250 V	UL94 V-0	Male Pin	-40 °C	105 °C	Header	1	0.13 in	0.1 in	Black	17	Board Cable/Wire	Tin	0.215 in	74.8 µin	Automotive General Purpose Industrial Medical
Molex 0705550010	All	Solder	Right Angle Through Hole	0.24 in	Square	150 µin	Shrouded - 4 Wall	Latch Holder	Tin	Glass Filled Polyester	Board Guide	Phosphor Bronze	250 V	UL94 V-0	Male Pin	-40 °C	105 °C	Header	1	0.13 in	0.1 in	Black	11	Board Cable/Wire	Tin	0.215 in	150 µin	Automotive General Purpose Industrial Medical
Molex 0705550039	All	Solder	Right Angle Through Hole	0.24 in	Square	15 µin	Shrouded - 4 Wall	Latch Holder	Gold	Glass Filled Polyester	Board Guide	Phosphor Bronze	250 V	UL94 V-0	Male Pin	-40 °C	105 °C	Header	1	0.13 in	0.1 in	Black	5	Board Cable/Wire	Tin	0.215 in	74.8 µin	Automotive General Purpose Industrial Medical
Molex 0705550041	All	Solder	Right Angle Through Hole	0.24 in	Square	15 µin	Shrouded - 4 Wall	Latch Holder	Gold	Glass Filled Polyester	Board Guide	Phosphor Bronze	250 V	UL94 V-0	Male Pin	-40 °C	105 °C	Header	1	0.13 in	0.1 in	Black	7	Board Cable/Wire	Tin	0.215 in	74.8 µin	Automotive General Purpose Industrial Medical

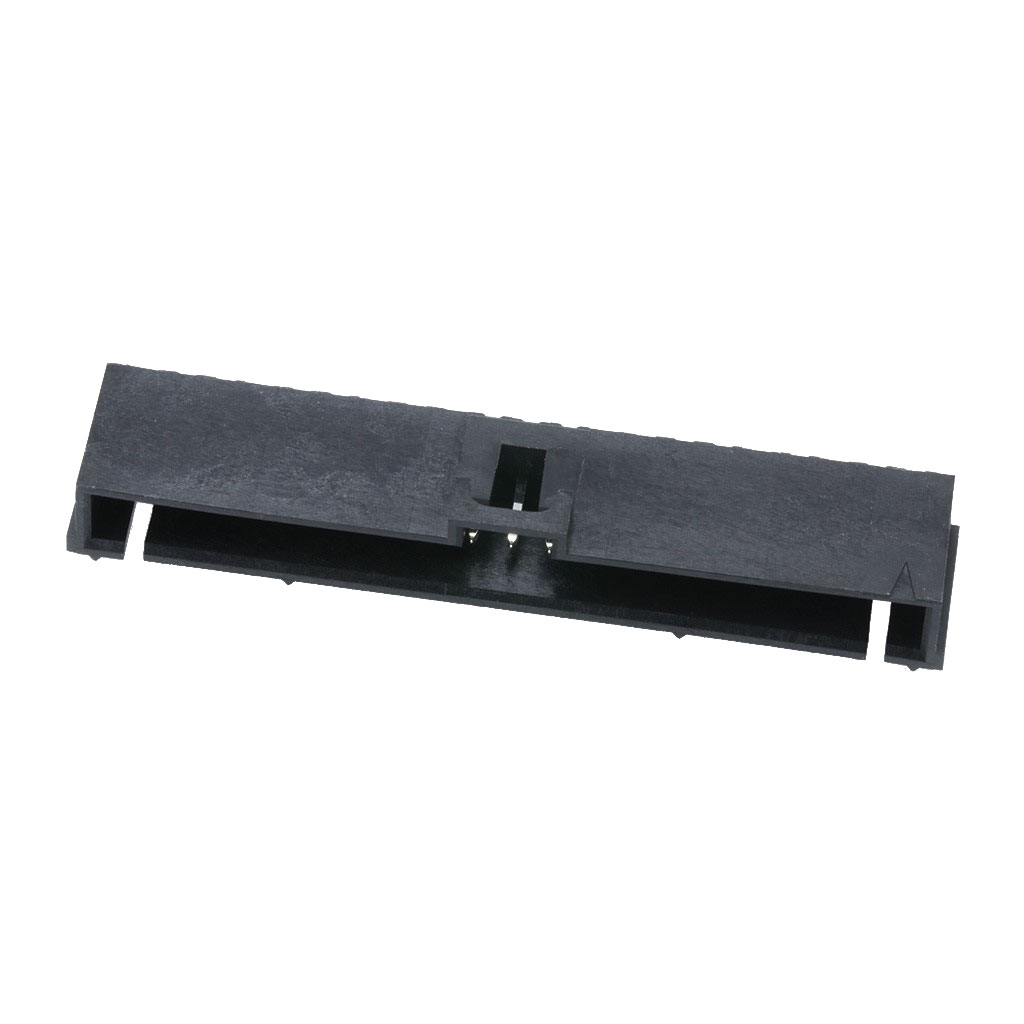

Molex 0705550090	All	Solder	Right Angle Through Hole	0.24 in	Square	30 µin	Shrouded - 4 Wall	Latch Holder	Gold	Glass Filled Polyester	Board Guide	Phosphor Bronze	250 V	UL94 V-0	Male Pin	-40 °C	105 °C	Header	1	0.13 in	0.1 in	Black	21	Board Cable/Wire	Tin	0.215 in	74.8 µin	Automotive General Purpose Industrial Medical
Molex 0705550003	All	Solder	Right Angle Through Hole	0.24 in	Square	150 µin	Shrouded - 4 Wall	Latch Holder	Tin	Glass Filled Polyester	Board Guide	Phosphor Bronze	250 V	UL94 V-0	Male Pin	-40 °C	105 °C	Header	1	0.13 in	0.1 in	Black	4	Board Cable/Wire	Tin	0.215 in	150 µin	Automotive General Purpose Industrial Medical
Molex 0705550075	All	Solder	Right Angle Through Hole	0.24 in	Square	30 µin	Shrouded - 4 Wall	Latch Holder	Gold	Glass Filled Polyester	Board Guide	Phosphor Bronze	250 V	UL94 V-0	Male Pin	-40 °C	105 °C	Header	1	0.13 in	0.1 in	Black	6	Board Cable/Wire	Tin	0.215 in	74.8 µin	Automotive General Purpose Industrial Medical
Molex 0705550089	All	Solder	Right Angle Through Hole	0.24 in	Square	30 µin	Shrouded - 4 Wall	Latch Holder	Gold	Glass Filled Polyester	Board Guide	Phosphor Bronze	250 V	UL94 V-0	Male Pin	-40 °C	105 °C	Header	1	0.13 in	0.1 in	Black	20	Board Cable/Wire	Tin	0.215 in	74.8 µin	Automotive General Purpose Industrial Medical
