60V, 2A, VOLT ACT NORM CLOSE 16L QFN T/R
Description
AI

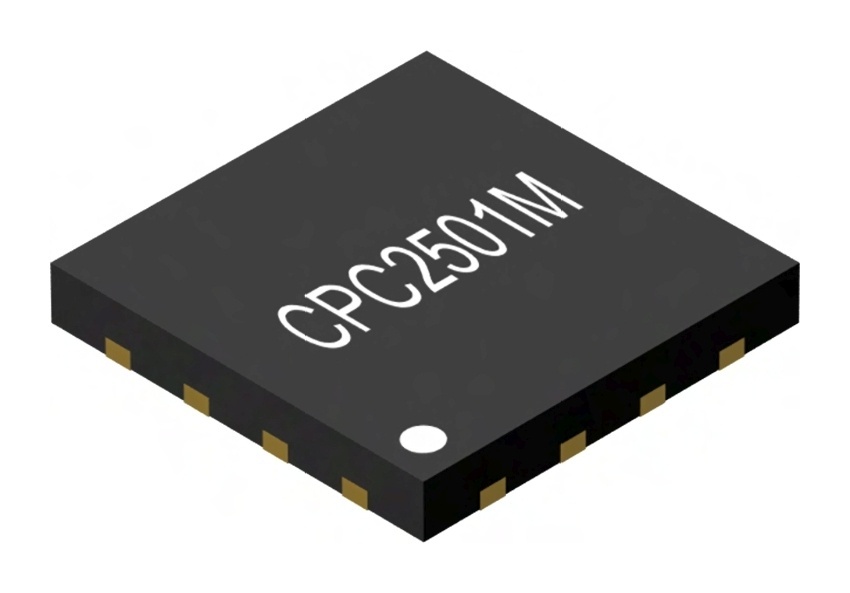

The CPC2501M is an application specific IC with a bidirectional, normally closed
Beta
⌘K
60V, 2A, VOLT ACT NORM CLOSE 16L QFN T/R
60V, 2A, VOLT ACT NORM CLOSE 16L QFN T/R
| Part | On-State Resistance (Max) | Voltage - Load (Min) | Voltage - Load (Max) | Voltage - Input (Range 1) Maximum | Voltage - Input (Range 1) Minimum | Voltage - Input (Range 2) Minimum | Voltage - Input (Range 2) Maximum | Circuit | Mounting Type | Output Type | Package / Case | Load Current | Package Length | Package Name | Package Width | Operating Temperature (Min) | Operating Temperature (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE | 750 mOhm | 0 V | 60 V | 3.3 VDC | 3.2 V | 4 V | 5.2 VDC | SPST-NC (1 Form B) | Surface Mount | AC DC | 16-VQFN Exposed Pad | 1.8 A | 6 mm | 16-QFN | 6 mm | -40 °C | 85 °C |
