6368120 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

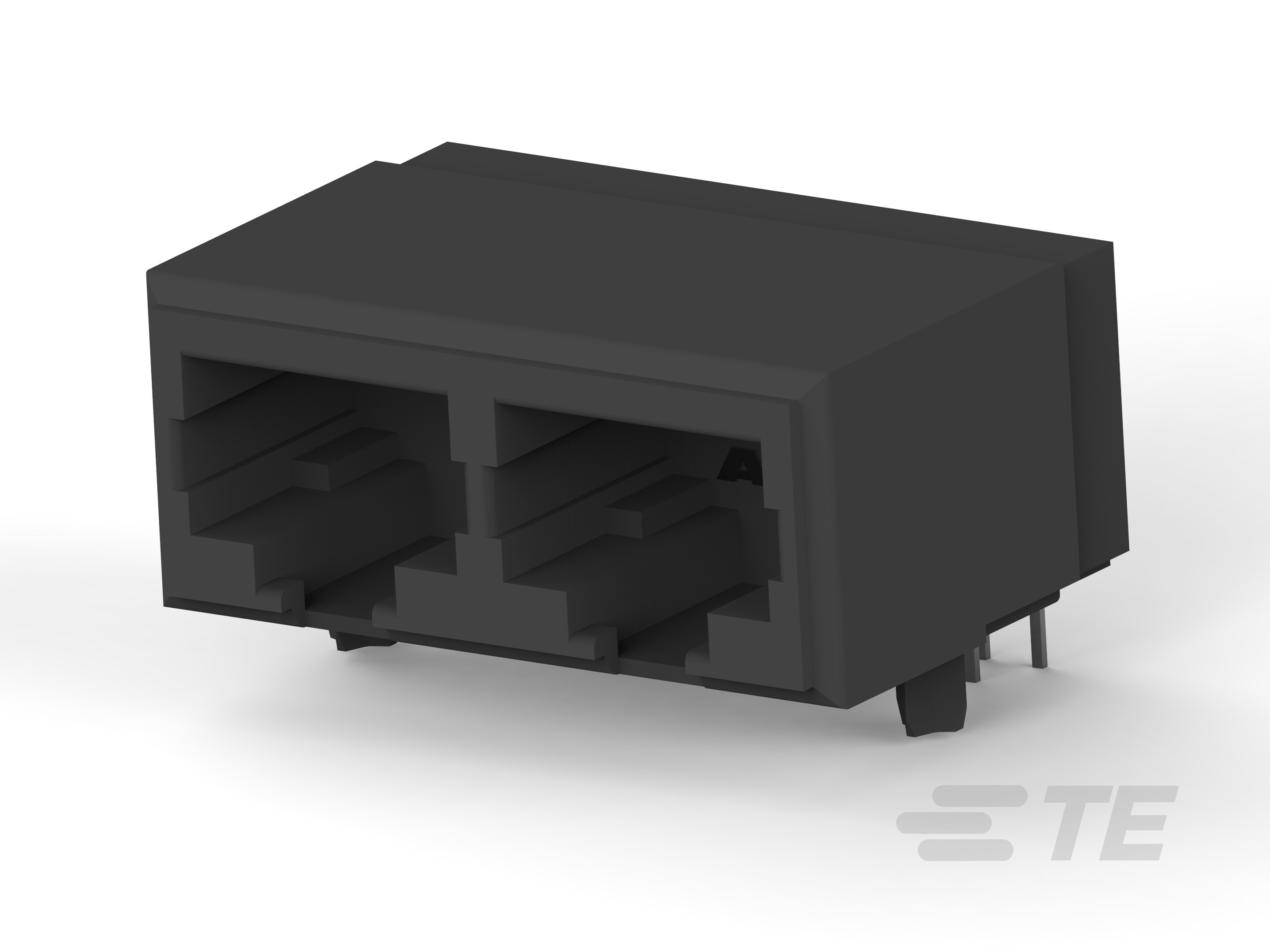

MODULAR CONNECTORS / ETHERNET CONNECTORS MJ,8P,2PORT,UNSHLD CAT5
| Part | Tab Direction | Ratings | Number of Rows | LED Color | Shielding | Contact Material | Features | Orientation Angle | Orientation Direction | Connector Type | Termination | Mounting Type | Number of Ports | Contact Finish | Number of Positions | Number of Contacts | Contact Finish Thickness | Housing Material | Operating Temperature (Min) | Operating Temperature (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Down | Cat5 | 1 | Does Not Contain LED | Unshielded | Phosphor Bronze | Board Guide | 90 ° | Right | Ethernet Jack RJ45 | Solder | Through Hole | 2 | Gold | 8 | 8 | 50 µin | Nylon PA Polyamide | -40 °C | 85 °C |
