2.92 mm Series | TE Connectivity AMP Connectors | Zenode.ai

Catalog

RF Connectors / Coaxial Connectors 2.92 Conn Recpt Female Socket

Part	Body Finish	Dielectric Material	Body Material	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Center Contact Plating	Mating Cycles	Connector Plug Diameter	Shield Termination	Mounting Type	Connector Type	Contact Termination	Center Contact Material	Impedance	Housing Color	Fastening Type	Number of Ports	Frequency - Max	Mounting Feature	Features	1st Connector Size	1st Connector	Style	2nd Connector Mounting Type	1st Contact Gender	Overall Impedance	2nd Connector Diameter	2nd Connector	2nd Contact Gender	Length	1st Connector Mounting Type	Color	Cable Type	Cable Diameter	Cable Outer Diameter	Cable Type Size
TE Connectivity AMP Connectors 2081934-1	Gold	Polyetherimide (PEI)	Brass	125 °C	-55 °C	250 V	Gold	500 cycles	2.92 mm	Solder	Board Edge Cutout Surface Mount	Female Socket Jack	Solder	Beryllium Copper	50 Ohm	Gold	Threaded	1	40 Gbps
TE Connectivity AMP Connectors 2081570-1		Polyetherimide (PEI)	Stainless Steel	125 °C	-55 °C	335 V	Gold	500 cycles	2.92 mm	Screw	Surface Mount	Female Socket Jack	Compression	Beryllium Copper	50 Ohm		Threaded	1	40 Gbps	Flange
TE Connectivity AMP Connectors 2081570-2		Polyetherimide (PEI)	Stainless Steel	125 °C	-55 °C	335 V	Gold	500 cycles	2.92 mm	Screw	Surface Mount	Female Socket Jack	Compression	Beryllium Copper	50 Ohm		Threaded	1	40 Gbps	Flange

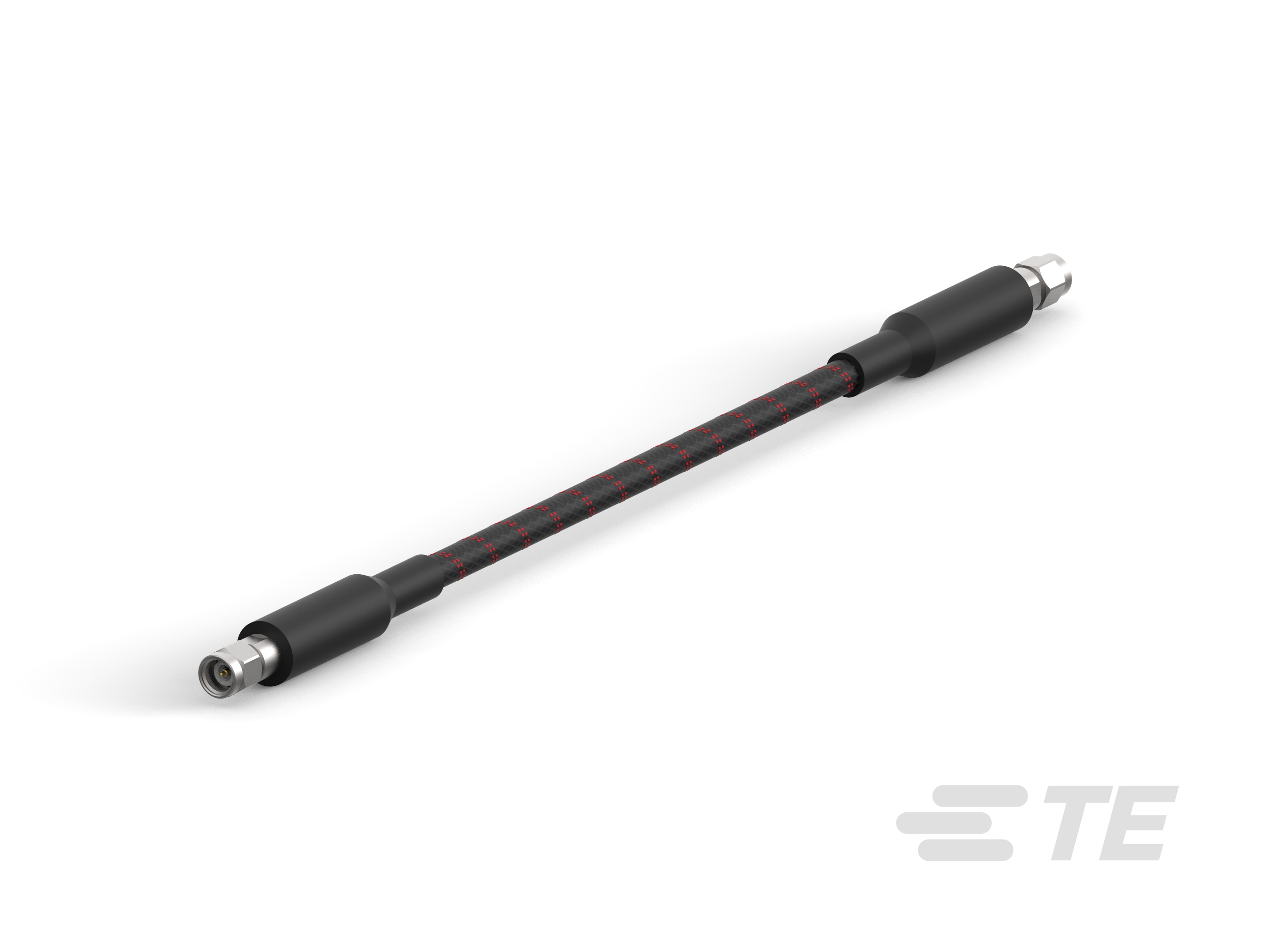

TE Connectivity AMP Connectors 1-2016662-0				85 °C	-40 °C														40 Gbps		Armored Cable Shielded	2.92 mm	Plug	2.92mm to 2.92mm	Free Hanging (In-Line)	Male	50 Ohms	2.92 mm	Plug	Male	39.4 in	Free Hanging (In-Line)	Black	6.00mm OD Coaxial Cable Coaxial Cable mm OD Coaxial Cable OD Coaxial Cable	6 mm	6 mm	6
