3288 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SPLICE TERMINAL 16-22AWG STEEL TRANSPARENT 25.4MM TIN LOOSE
| Part | Color | Insulation | Terminal Type | Termination | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Number of Wire Entries | Width - Outer Edges | Features | Length - Overall | Thickness | Stud/Tab Size | Contact Finish | Contact Material | Mounting Type | Material - Insulation | Insulation Diameter (Max) | Insulation Diameter (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Transparent | Fully Insulated | Butt Splice Closed End Single Opening | Crimp | 16 AWG | 22 AWG | 1 | |||||||||||

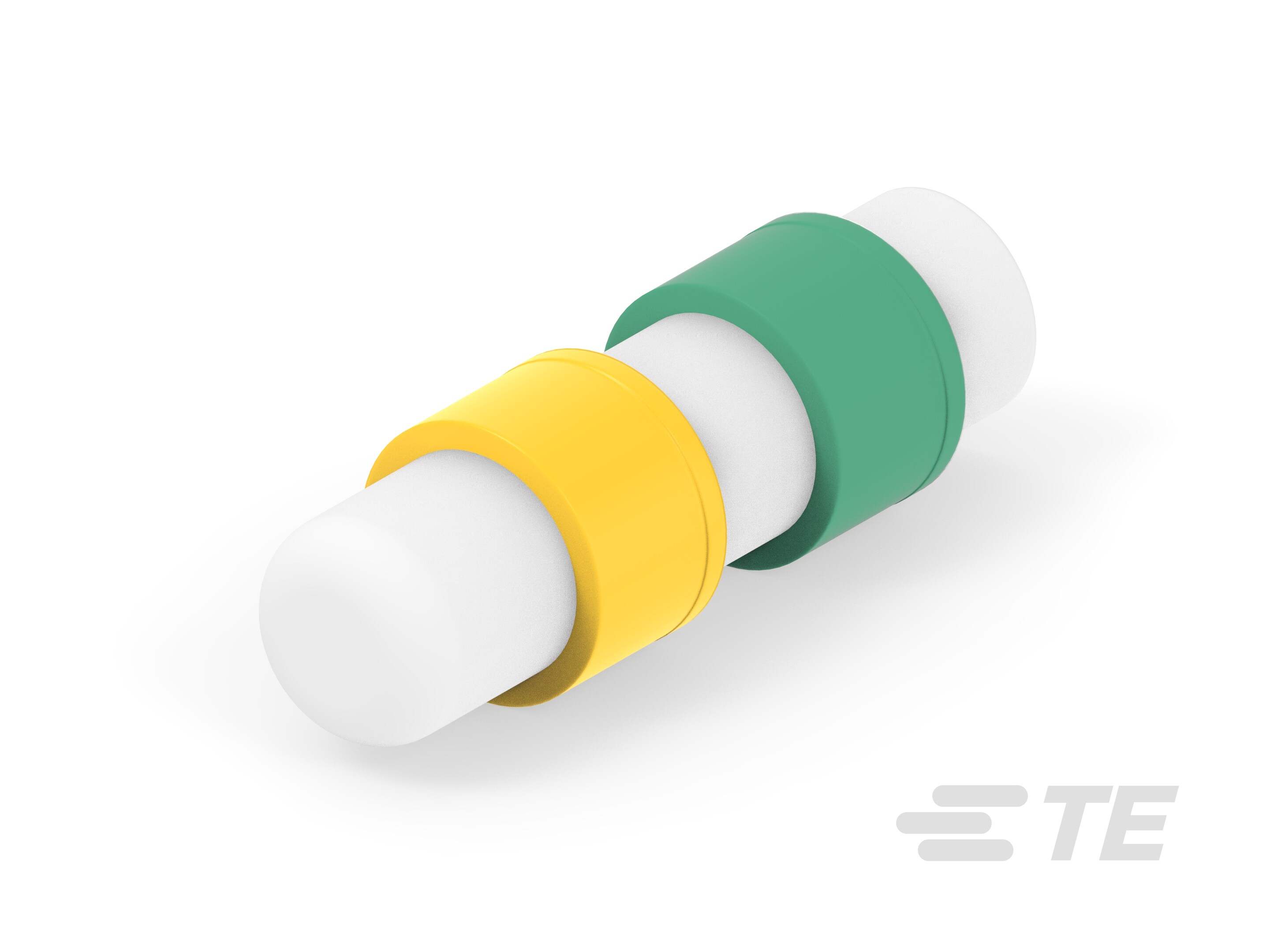

 TE Connectivity AMP Connectors | Green Yellow Bands | Fully Insulated | Wire Cap for Unstripped Wire | Crimp | 1 | |||||||||||||
 TE Connectivity AMP Connectors | Blue Green Bands | Fully Insulated | Wire Cap for Unstripped Wire | Crimp | 1 | |||||||||||||

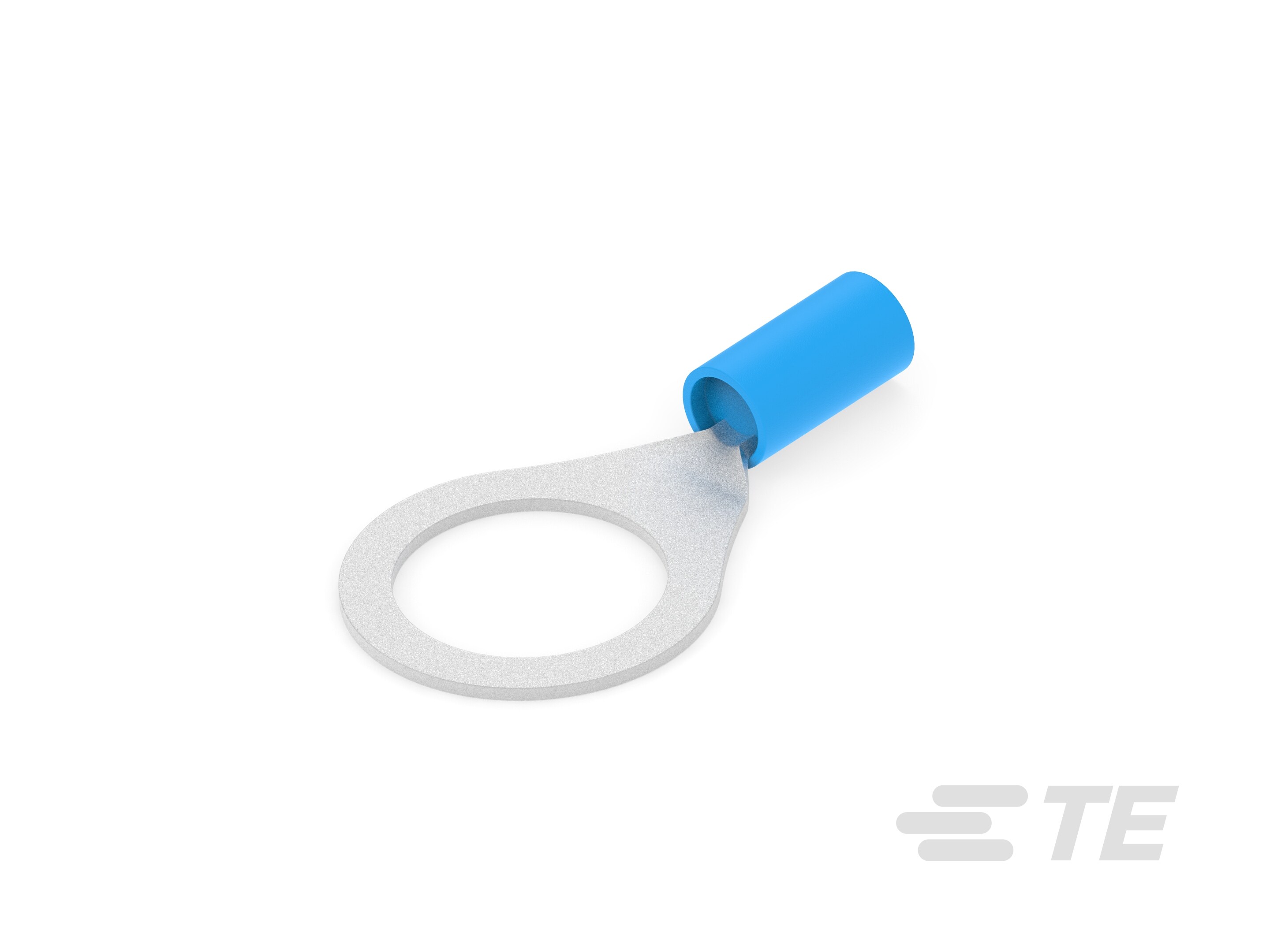

 TE Connectivity AMP Connectors | Blue | Insulated | Circular | Crimp | 14 AWG | 16 AWG | 0.713 in | Serrated Termination | 1.293 in | 0.031 in | 0.5 Stud | Tin | Copper | Free Hanging (In-Line) | Nylon PA Polyamide | 0.17 in | 0.115 in | |
 TE Connectivity AMP Connectors | Black Orange Bands | Fully Insulated | Wire Cap for Unstripped Wire | Crimp | 1 | |||||||||||||
 TE Connectivity AMP Connectors | Gray Orange | Non-Insulated | Butt Splice Closed End Single Opening | Crimp | 1 |
