CL1C3 Series

Catalog

CONN RCPT HSG MALE 31POS INLINE

Part	Orientation	Connector Type	Note	Contact Size	Fastening Type	Shell Material	Type	Material Flammability Rating	Number of Positions	Contact Type	Housing Color	Shell Size - Insert Width	Shell Size - Insert Length	Operating Temperature (Max)	Operating Temperature (Min)	Contact Shape	Insert Material	Shielding	Mounting Type	Ingress Protection	Ingress Protection Description	Ingress Protection IP Rating
Amphenol Aerospace Operations CL1C3200	Keyed	Receptacle Housing	Contacts Not Included	20	Twist Latch	Halogen Free Thermoplastic	For Male Pins	UL94 V-0	31	Crimp Solder Cup	Black	2 mm	3 mm	125 °C	-40 °C	Circular	Thermoplastic	Unshielded	Free Hanging (In-Line)	IP40
Amphenol Aerospace Operations CL1C3100	Keyed	Receptacle Housing	Contacts Not Included	16 S	Twist Latch	Halogen Free Thermoplastic	For Male Pins	UL94 V-0	18	Crimp Solder Cup	Black	1 mm	3 mm	125 °C	-40 °C	Circular	Thermoplastic	Unshielded	Free Hanging (In-Line)	IP40

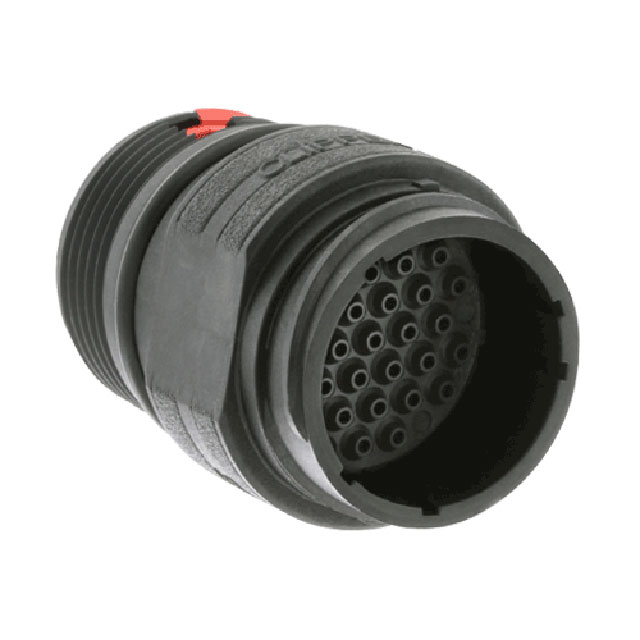

Amphenol Aerospace Operations CL1C3201	Keyed	Receptacle Housing	Contacts Not Included	20	Twist Latch	Halogen Free Thermoplastic	For Male Pins	UL94 V-0	31	Crimp Solder Cup	Black	2 mm	3 mm	125 °C	-40 °C	Circular	Thermoplastic	Unshielded	Free Hanging (In-Line)		Dust Tight Waterproof	IP67
Amphenol Aerospace Operations CL1C3101	Keyed	Receptacle Housing	Contacts Not Included	16 S	Twist Latch	Halogen Free Thermoplastic	For Male Pins	UL94 V-0	18	Crimp Solder Cup	Black	1 mm	3 mm	125 °C	-40 °C	Circular	Thermoplastic	Unshielded	Free Hanging (In-Line)		Dust Tight Waterproof	IP67
