2355181 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS 4P,2MM,BRK HDR,SRVT,2.8,0.38AU,BOX

Part	Voltage Rating	Voltage Rating (Type)	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Shrouding	Insulation Color	Contact Finish Thickness - Mating	Contact Length - Mating	Fastening Type	Number of Rows	Current Rating	Number of Positions Loaded	Contact Finish - Mating	Number of Positions	Insulation Material	Contact Finish - Post	Termination	Contact Shape	Overall Contact Length	Contact Material	Pitch - Mating	Style	Connector Type	Mounting Type	Contact Type	Insulation Height	Contact Length - Post	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 2355181-4	125 V	DC	UL94 V-0	125 °C	-40 °C	Unshrouded	Black	15 µin	0.157 in	Push-Pull	1	2 A	All	Gold	4	Thermoplastic	Tin	Solder	Square	0.327 in	Copper Alloy	0.079 in	Board	Breakaway Header	Through Hole	Male Pin	0.059 in	0.11 in	78.7 µin
TE Connectivity AMP Connectors 2355181-2	125 V	DC	UL94 V-0	125 °C	-40 °C	Unshrouded	Black	15 µin	0.157 in	Push-Pull	1	2 A	All	Gold	2	Thermoplastic	Tin	Solder	Square	0.327 in	Copper Alloy	0.079 in	Board	Breakaway Header	Through Hole	Male Pin	0.059 in	0.11 in	78.7 µin

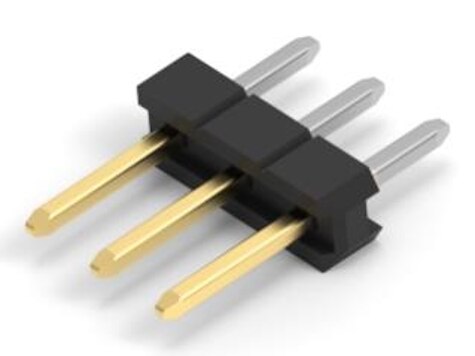

TE Connectivity AMP Connectors 2355181-3	125 V	DC	UL94 V-0	125 °C	-40 °C	Unshrouded	Black	15 µin	0.157 in	Push-Pull	1	2 A	All	Gold	3	Thermoplastic	Tin	Solder	Square	0.327 in	Copper Alloy	0.079 in	Board	Breakaway Header	Through Hole	Male Pin	0.059 in	0.11 in	78.7 µin
TE Connectivity AMP Connectors 2355181-5	125 V	DC	UL94 V-0	125 °C	-40 °C	Unshrouded	Black	15 µin	0.157 in	Push-Pull	1	2 A	All	Gold	5	Thermoplastic	Tin	Solder	Square	0.327 in	Copper Alloy	0.079 in	Board	Breakaway Header	Through Hole	Male Pin	0.059 in	0.11 in	78.7 µin
TE Connectivity AMP Connectors 2355181-8	125 V	DC	UL94 V-0	125 °C	-40 °C	Unshrouded	Black	15 µin	0.157 in	Push-Pull	1	2 A	All	Gold	8	Thermoplastic	Tin	Solder	Square	0.327 in	Copper Alloy	0.079 in	Board	Breakaway Header	Through Hole	Male Pin	0.059 in	0.11 in	78.7 µin
TE Connectivity AMP Connectors 1-2355181-0	125 V	DC	UL94 V-0	125 °C	-40 °C	Unshrouded	Black	15 µin	0.157 in	Push-Pull	1	2 A	All	Gold	10	Thermoplastic	Tin	Solder	Square	0.327 in	Copper Alloy	0.079 in	Board	Breakaway Header	Through Hole	Male Pin	0.059 in	0.11 in	78.7 µin
TE Connectivity AMP Connectors 2355181-6	125 V	DC	UL94 V-0	125 °C	-40 °C	Unshrouded	Black	15 µin	0.157 in	Push-Pull	1	2 A	All	Gold	6	Thermoplastic	Tin	Solder	Square	0.327 in	Copper Alloy	0.079 in	Board	Breakaway Header	Through Hole	Male Pin	0.059 in	0.11 in	78.7 µin
