2375268 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

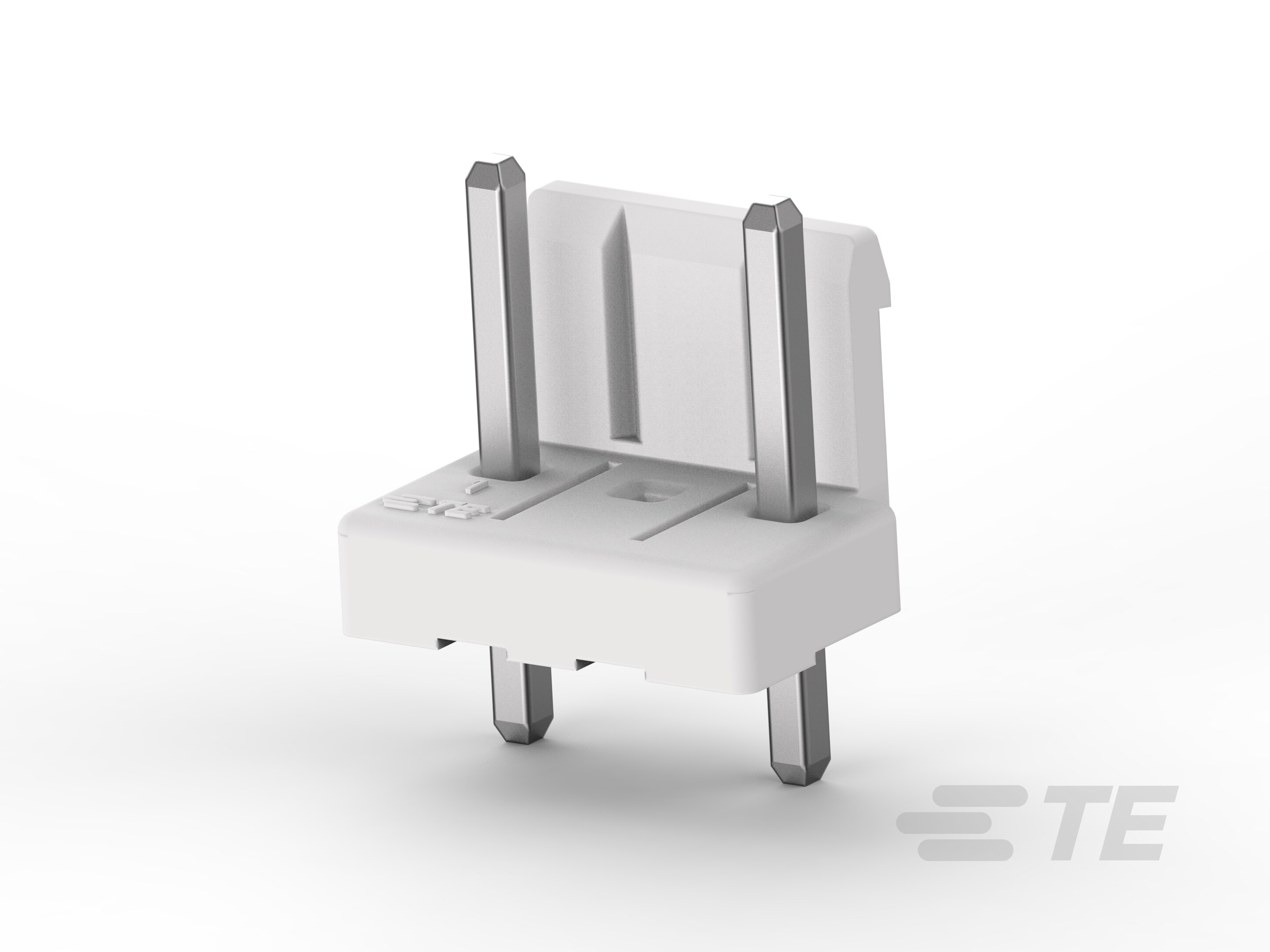

HEADERS & WIRE HOUSINGS 3P UNSHROUDED HEADER SELECTIVE PIN,NGWT
| Part | Contact Length - Mating | Contact Finish - Post | Contact Type | Overall Contact Length | Operating Temperature (Min) | Operating Temperature (Max) | Number of Positions | Contact Material | Insulation Height | Contact Finish Thickness - Mating | Contact Length - Post | Shrouding | Number of Positions Loaded | Number of Rows | Mounting Type | Insulation Color | Current Rating | Termination | Connector Type | Material Flammability Rating | Insulation Material | Contact Shape | Style | Fastening Type | Contact Finish - Mating | Pitch - Mating | Voltage Rating | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.303 in | Tin | Male Pin | 0.567 in | -55 °C | 105 °C | 3 | Copper Alloy | 0.362 in | 78.7 Ąin | 0.146 in | Shrouded - 1 Wall | 2 | 1 | Through Hole | Natural | 12.3 A | Solder | Header | UL94 V-0 | Resin | Square | Board Cable/Wire | Locking Ramp | Tin | 0.156 in | 600 V | 78.7 µin |
