767042 Series

Catalog

MICT,738PLUG,152,ASSY,.025,EXT

Part	Number of Positions	Connector Type	Contact Finish	Number of Rows	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Mounting Type	Pitch [x]	Pitch [x]
TE Connectivity Raychem Cable Protection 767042-4	152	Outer Shroud Contacts Plug	Gold	2	18.75 mm 27.8 mm	0.76 Ám	30 Áin	0.727 in	18.47 mm	Surface Mount	0.64 mm	0.025 in
TE Connectivity Raychem Cable Protection 767042-6	228	Outer Shroud Contacts Plug	Gold	2	18.75 mm 27.8 mm	0.76 Ám	30 Áin	0.727 in	18.47 mm	Surface Mount	0.64 mm	0.025 in

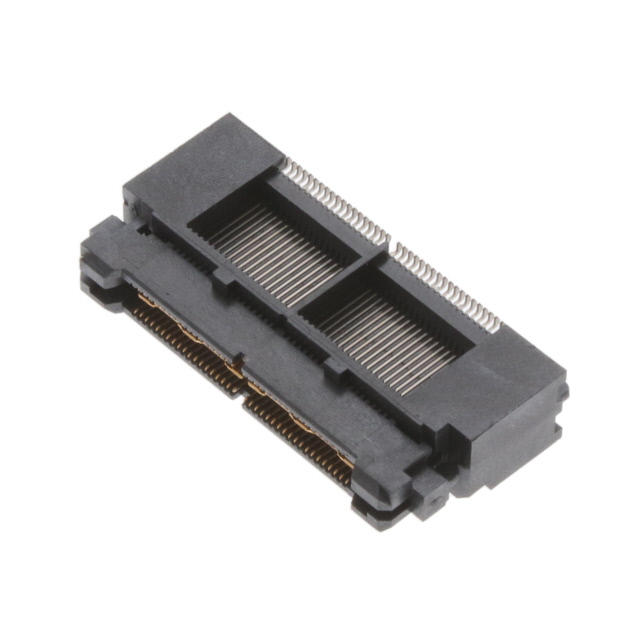

TE Connectivity Raychem Cable Protection 767042-2	76	Outer Shroud Contacts Plug	Gold	2	18.75 mm 27.8 mm	0.76 Ám	30 Áin	0.727 in	18.47 mm	Surface Mount	0.64 mm	0.025 in

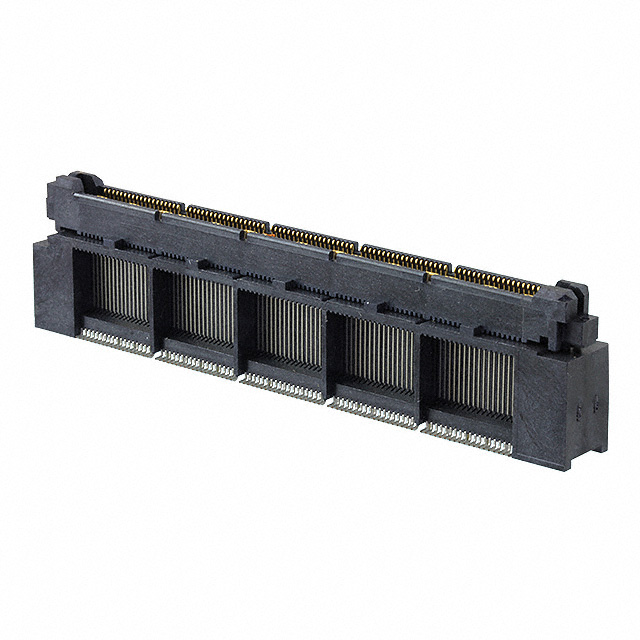

TE Connectivity Raychem Cable Protection 767042-5	190	Outer Shroud Contacts Plug	Gold	2	18.75 mm 27.8 mm	0.76 Ám	30 Áin	0.727 in	18.47 mm	Surface Mount	0.64 mm	0.025 in
