644803 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

10P MTA100 SHRD HDR ASSY RA FL

Part	Insulation Material	Voltage Rating	Number of Positions	Number of Positions Loaded	Contact Finish - Post	Insulation Color	Insulation Height	Contact Type	Connector Type	Fastening Type	Style	Contact Finish - Mating	Number of Rows	Material Flammability Rating	Contact Length - Mating	Contact Length - Post	Operating Temperature (Min)	Operating Temperature (Max)	Contact Shape	Termination	Current Rating	Pitch - Mating	Mounting Type	Shrouding	Contact Material	Applications

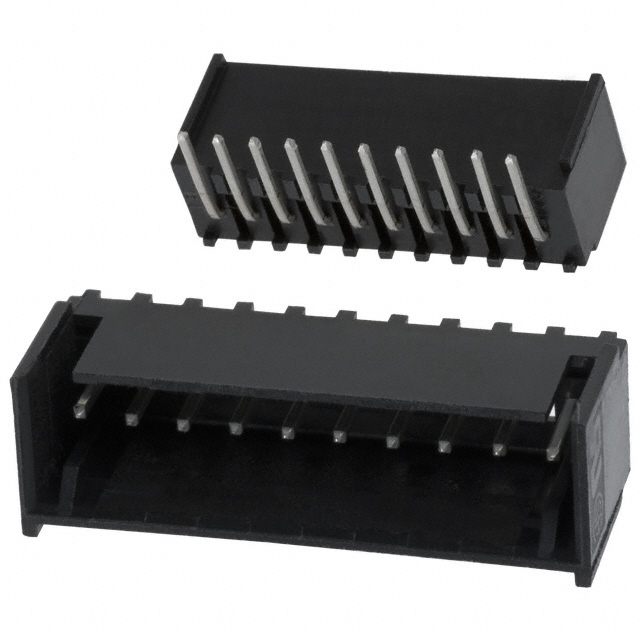

TE Connectivity AMP Connectors 3-644803-0	Polyester	250 V	10	All	Tin	Black	0.343 in	Male Pin	Header	Friction Lock	Board Cable/Wire	Tin	1	UL94 V-0	0.2 in	0.13 in	-55 °C	105 °C	Square	Solder	Varies by Wire Gauge	0.1 in	Right Angle Through Hole	Shrouded - 4 Wall	Copper Alloy	General Purpose
TE Connectivity AMP Connectors 1-644803-0	Polyester	250 V	10	All	Tin-Lead	Black	0.343 in	Male Pin	Header	Friction Lock	Board Cable/Wire	Tin-Lead	1	UL94 V-0	0.2 in	0.13 in	-55 °C	105 °C	Square	Solder	Varies by Wire Gauge	0.1 in	Right Angle Through Hole	Shrouded - 4 Wall	Copper Alloy	General Purpose
TE Connectivity AMP Connectors 644803-8	Polyester	250 V	8	All	Tin-Lead	Black	0.343 in	Male Pin	Header	Friction Lock	Board Cable/Wire	Tin-Lead	1	UL94 V-0	0.2 in	0.13 in	-55 °C	105 °C	Square	Solder	Varies by Wire Gauge	0.1 in	Right Angle Through Hole	Shrouded - 4 Wall	Copper Alloy	General Purpose
TE Connectivity AMP Connectors 2-644803-4	Polyester	250 V	4	All	Tin	Black	0.343 in	Male Pin	Header	Friction Lock	Board Cable/Wire	Tin	1	UL94 V-0	0.2 in	0.13 in	-55 °C	105 °C	Square	Solder	Varies by Wire Gauge	0.1 in	Right Angle Through Hole	Shrouded - 4 Wall	Copper Alloy	General Purpose
TE Connectivity AMP Connectors 644803-3	Polyester	250 V	3	All	Tin-Lead	Black	0.343 in	Male Pin	Header	Friction Lock	Board Cable/Wire	Tin-Lead	1	UL94 V-0	0.2 in	0.13 in	-55 °C	105 °C	Square	Solder	Varies by Wire Gauge	0.1 in	Right Angle Through Hole	Shrouded - 4 Wall	Copper Alloy	General Purpose
TE Connectivity AMP Connectors 2-644803-5	Polyester	250 V	5	All	Tin	Black	0.343 in	Male Pin	Header	Friction Lock	Board Cable/Wire	Tin	1	UL94 V-0	0.2 in	0.13 in	-55 °C	105 °C	Square	Solder	Varies by Wire Gauge	0.1 in	Right Angle Through Hole	Shrouded - 4 Wall	Copper Alloy	General Purpose
TE Connectivity AMP Connectors 3-644803-3	Polyester	250 V	13	All	Tin	Black	0.343 in	Male Pin	Header	Friction Lock	Board Cable/Wire	Tin	1	UL94 V-0	0.2 in	0.13 in	-55 °C	105 °C	Square	Solder	Varies by Wire Gauge	0.1 in	Right Angle Through Hole	Shrouded - 4 Wall	Copper Alloy	General Purpose

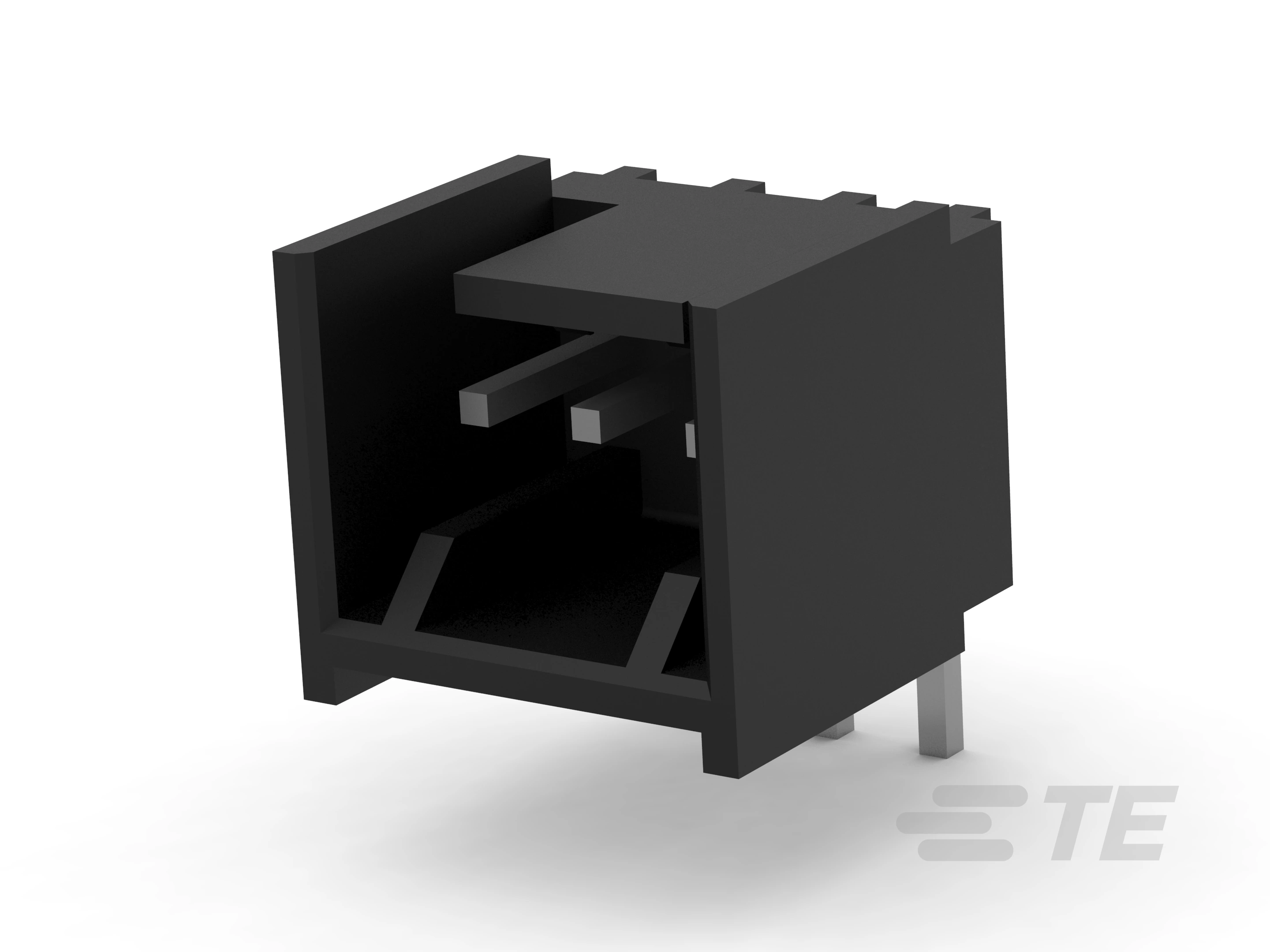

TE Connectivity AMP Connectors 2-644803-3	Polyester	250 V	3	All	Tin	Black	0.343 in	Male Pin	Header	Friction Lock	Board Cable/Wire	Tin	1	UL94 V-0	0.2 in	0.13 in	-55 °C	105 °C	Square	Solder	Varies by Wire Gauge	0.1 in	Right Angle Through Hole	Shrouded - 4 Wall	Copper Alloy	General Purpose
