2342082 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PLUGGABLE TERMINAL BLOCKS 16POS HDR ST, HT 5.00MM PIT.,TL 2.6MM

Part	Number of Levels	Positions Per Level	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions	Header Orientation	Features	Contact Mating Finish	Current - UL	Voltage - UL	Pitch	Mounting Type	Color	Type	Termination Style	Housing Material	Material Flammability Rating	Contact Material	Contact Tail Length	Insulation Height
TE Connectivity AMP Connectors 1-2342082-6	1	16	-40 °C	105 °C	16	Vertical	High Temp Housing	Tin	11 A	300 V	0.197 in	Through Hole	Black	Header Male Pins Shrouded (4 Side)	Solder	Nylon PA Polyamide	UL94 V-0	Copper Alloy	0.102 in	0.472 in
TE Connectivity AMP Connectors 1-2342082-5	1	15	-40 °C	105 °C	15	Vertical	High Temp Housing	Tin	11 A	300 V	0.197 in	Through Hole	Black	Header Male Pins Shrouded (4 Side)	Solder	Nylon PA Polyamide	UL94 V-0	Copper Alloy	0.102 in	0.472 in
TE Connectivity AMP Connectors 2342082-5	1	5	-40 °C	105 °C	5	Vertical	High Temp Housing	Tin	11 A	300 V	0.197 in	Through Hole	Black	Header Male Pins Shrouded (4 Side)	Solder	Nylon PA Polyamide	UL94 V-0	Copper Alloy	0.102 in	0.472 in
TE Connectivity AMP Connectors 1-2342082-0	1	10	-40 °C	105 °C	10	Vertical	High Temp Housing	Tin	11 A	300 V	0.197 in	Through Hole	Black	Header Male Pins Shrouded (4 Side)	Solder	Nylon PA Polyamide	UL94 V-0	Copper Alloy	0.102 in	0.472 in
TE Connectivity AMP Connectors 2342082-7	1	7	-40 °C	105 °C	7	Vertical	High Temp Housing	Tin	11 A	300 V	0.197 in	Through Hole	Black	Header Male Pins Shrouded (4 Side)	Solder	Nylon PA Polyamide	UL94 V-0	Copper Alloy	0.102 in	0.472 in
TE Connectivity AMP Connectors 1-2342082-1	1	11	-40 °C	105 °C	11	Vertical	High Temp Housing	Tin	11 A	300 V	0.197 in	Through Hole	Black	Header Male Pins Shrouded (4 Side)	Solder	Nylon PA Polyamide	UL94 V-0	Copper Alloy	0.102 in	0.472 in
TE Connectivity AMP Connectors 2-2342082-0	1	20	-40 °C	105 °C	20	Vertical	High Temp Housing	Tin	11 A	300 V	0.197 in	Through Hole	Black	Header Male Pins Shrouded (4 Side)	Solder	Nylon PA Polyamide	UL94 V-0	Copper Alloy	0.102 in	0.472 in

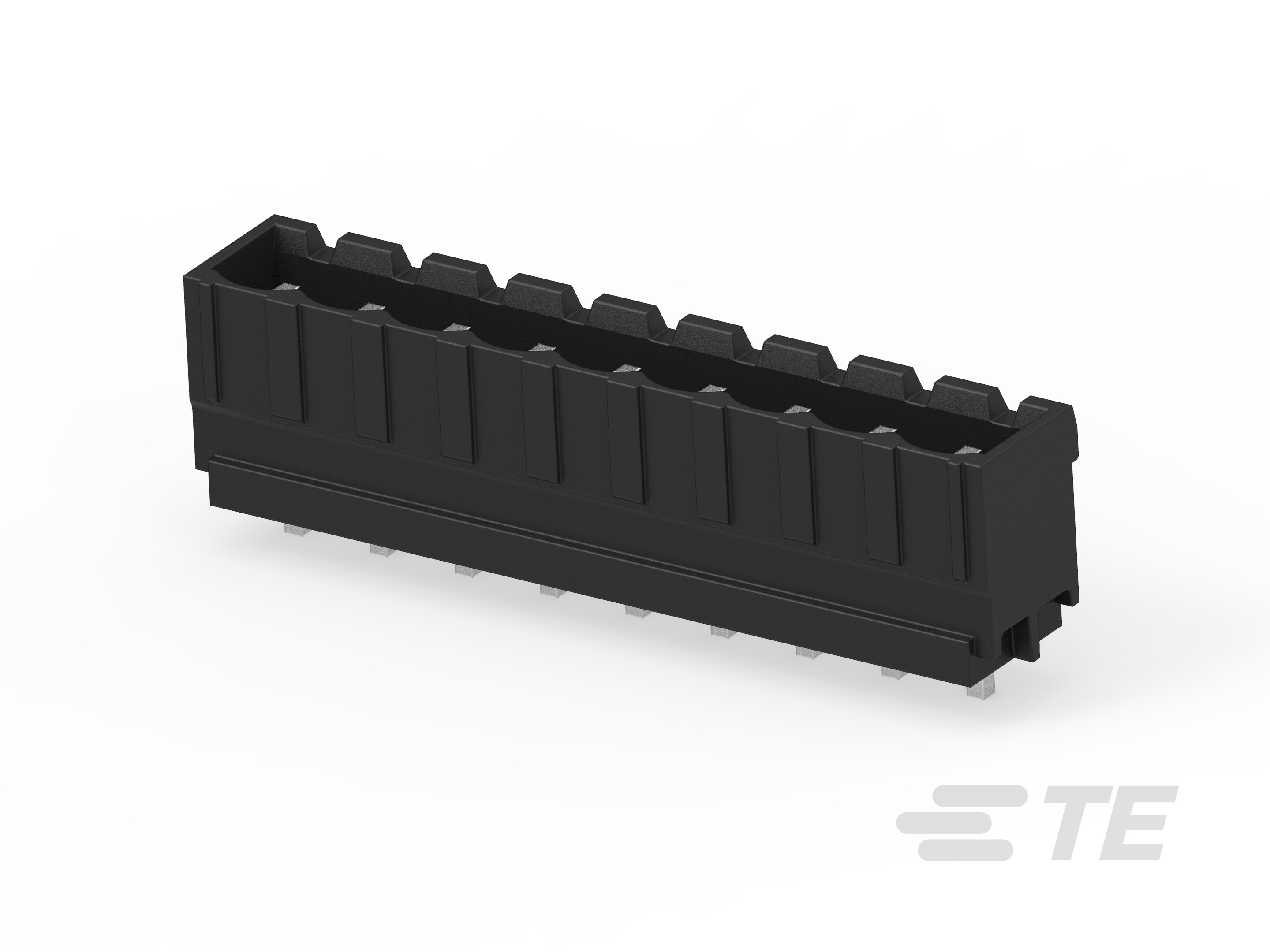

TE Connectivity AMP Connectors 2342082-9	1	9	-40 °C	105 °C	9	Vertical	High Temp Housing	Tin	11 A	300 V	0.197 in	Through Hole	Black	Header Male Pins Shrouded (4 Side)	Solder	Nylon PA Polyamide	UL94 V-0	Copper Alloy	0.102 in	0.472 in

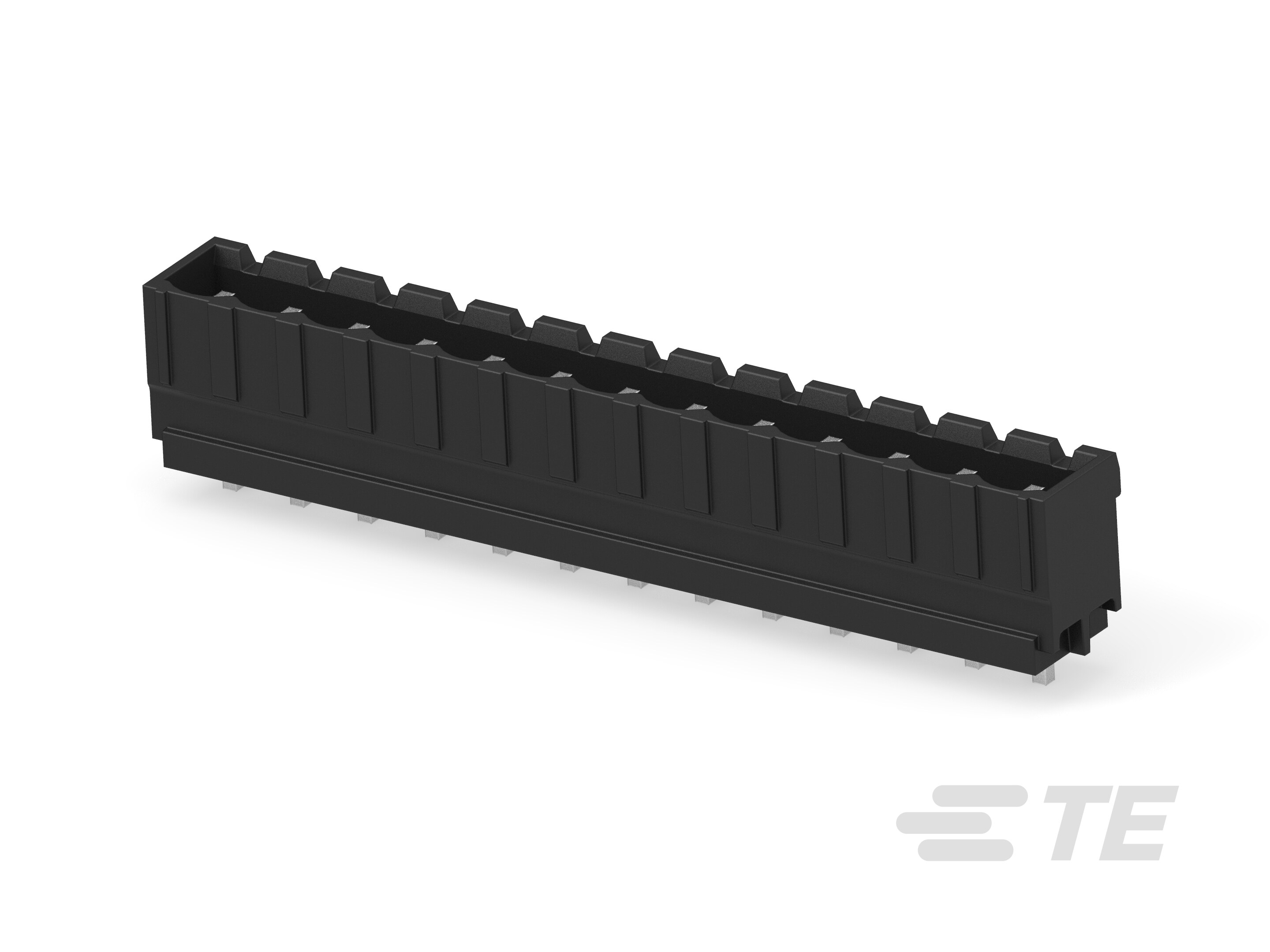

TE Connectivity AMP Connectors 1-2342082-3	1	13	-40 °C	105 °C	13	Vertical	High Temp Housing	Tin	11 A	300 V	0.197 in	Through Hole	Black	Header Male Pins Shrouded (4 Side)	Solder	Nylon PA Polyamide	UL94 V-0	Copper Alloy	0.102 in	0.472 in
TE Connectivity AMP Connectors 2342082-3	1	3	-40 °C	105 °C	3	Vertical	High Temp Housing	Tin	11 A	300 V	0.197 in	Through Hole	Black	Header Male Pins Shrouded (4 Side)	Solder	Nylon PA Polyamide	UL94 V-0	Copper Alloy	0.102 in	0.472 in
