054722 Series

Manufacturer: Molex

Catalog

CONN RCPT 22POS SMD GOLD

Part	Connector Type	Pitch	Mated Stacking Height	Number of Positions	Contact Finish	Contact Finish Thickness	Number of Rows	Mounting Type	Height Above Board
Molex 0547220228	Center Strip Contacts Receptacle	0.02 in	1.5 mm	22	Gold	10 Ąin	2	Surface Mount	0.045 in
Molex 0547220248	Center Strip Contacts Receptacle	0.02 in	1.5 mm	24 pos	Gold	10 Ąin	2	Surface Mount	0.045 in
Molex 0547220607	Center Strip Contacts Receptacle	0.02 in	1.5 mm	60	Gold	10 Ąin	2	Surface Mount	0.045 in

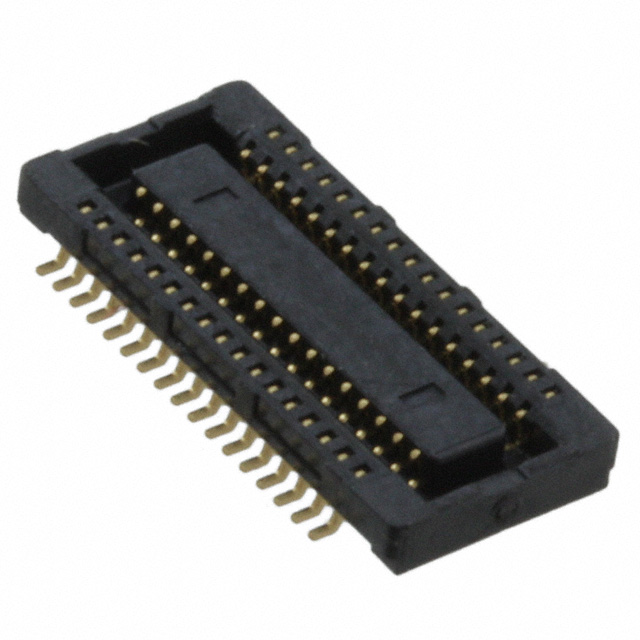

Molex 0547220344	Center Strip Contacts Receptacle	0.02 in	1.5 mm	34	Gold	10 Ąin	2	Surface Mount	0.045 in
Molex 0547220207	Center Strip Contacts Receptacle	0.02 in	1.5 mm	20	Gold	10 Ąin	2	Surface Mount	0.045 in
Molex 547220408	Center Strip Contacts Receptacle	0.02 in	1.5 mm	40	Gold	10 Ąin	2	Surface Mount	0.045 in
Molex 0547220224	Center Strip Contacts Receptacle	0.02 in	1.5 mm	22	Gold	10 Ąin	2	Surface Mount	0.045 in

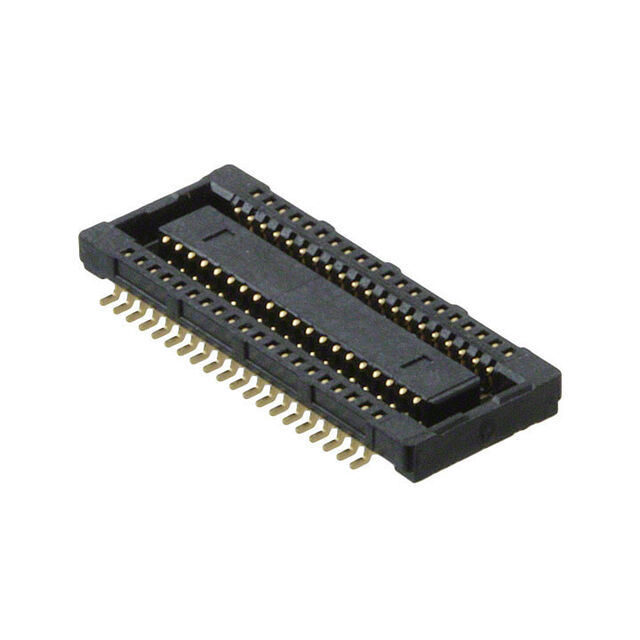

Molex 0547220407	Center Strip Contacts Receptacle	0.02 in	1.5 mm	40	Gold	10 Ąin	2	Surface Mount	0.045 in
Molex 0547220347	Center Strip Contacts Receptacle	0.02 in	1.5 mm	34	Gold	10 Ąin	2	Surface Mount	0.045 in
Molex 0547220168	Center Strip Contacts Receptacle	0.02 in	1.5 mm	16	Gold	10 Ąin	2	Surface Mount	0.045 in
