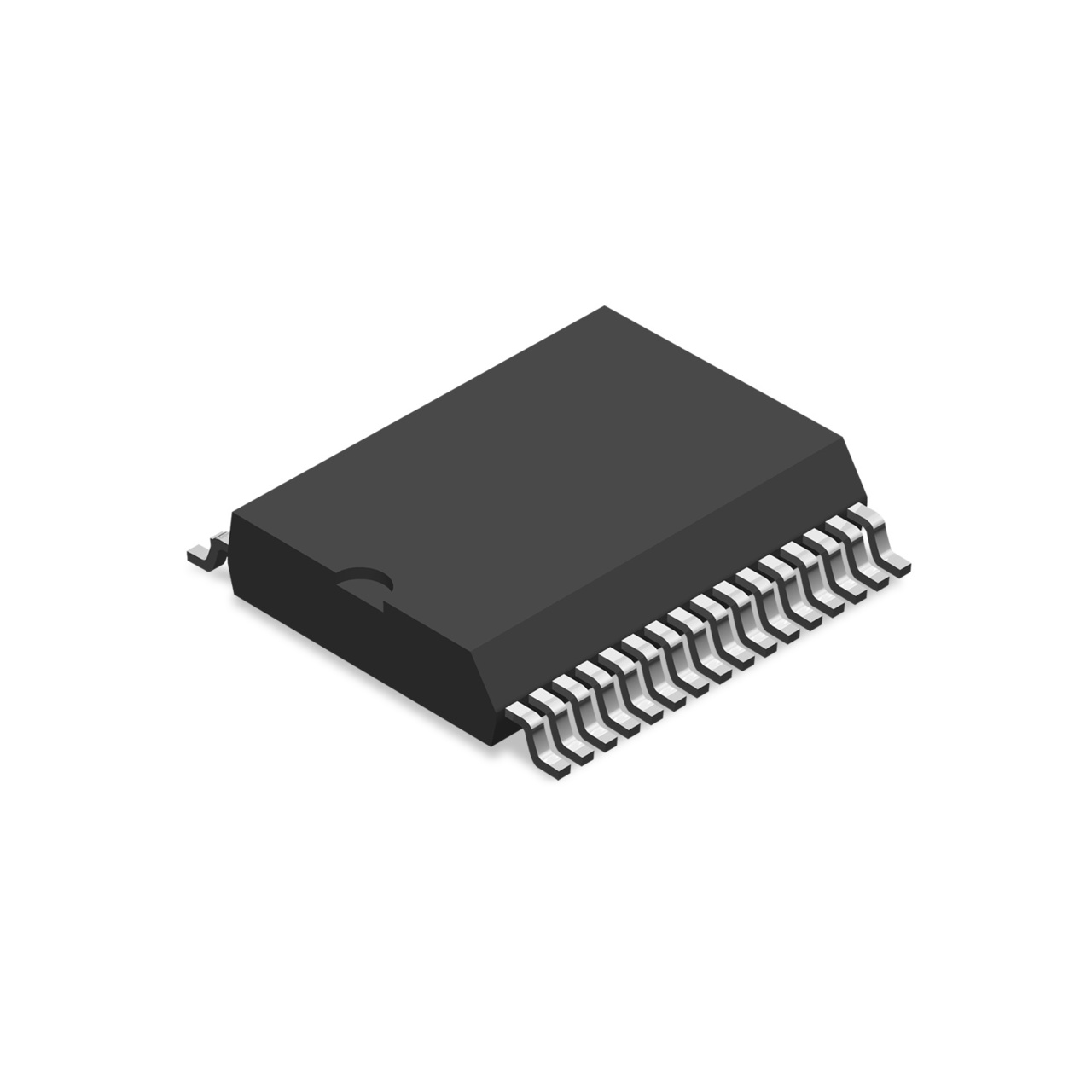

CPC5622 Series

SNGL PKG OPTICAL DAA PC CARD COMPATIBLE

Catalog

SNGL PKG OPTICAL DAA PC CARD COMPATIBLE

Part	Number of Circuits	Power (Watts)	Package Name	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Package Width	Package Length	Function	Primary Attributes	Utilized IC / Part	Embedded	Type	Contents	Supplied Contents
LITTELFUSE CPC5622ATR	1	1 W	32-SOIC	5.5 V	3 V	-40 °C	85 °C	Surface Mount	7.5 mm	0.295 in	Data Access Arrangement (DAA)
LITTELFUSE CPC5622-EVAL-600R											Isolation Solution	Full-Wave Ringing Detection Phone Line Interface	CPC5622	No	Telecom	Board
LITTELFUSE CPC5622A	1	1 W	32-SOIC	5.5 V	3 V	-40 °C	85 °C	Surface Mount	7.5 mm	0.295 in	Data Access Arrangement (DAA)
LITTELFUSE CPC5622-EVAL-EUR											Isolation Solution	Full-Wave Ringing Detection Phone Line Interface	CPC5622	No	Telecom	Board	Board(s)

Catalog

SNGL PKG OPTICAL DAA PC CARD COMPATIBLE

Description

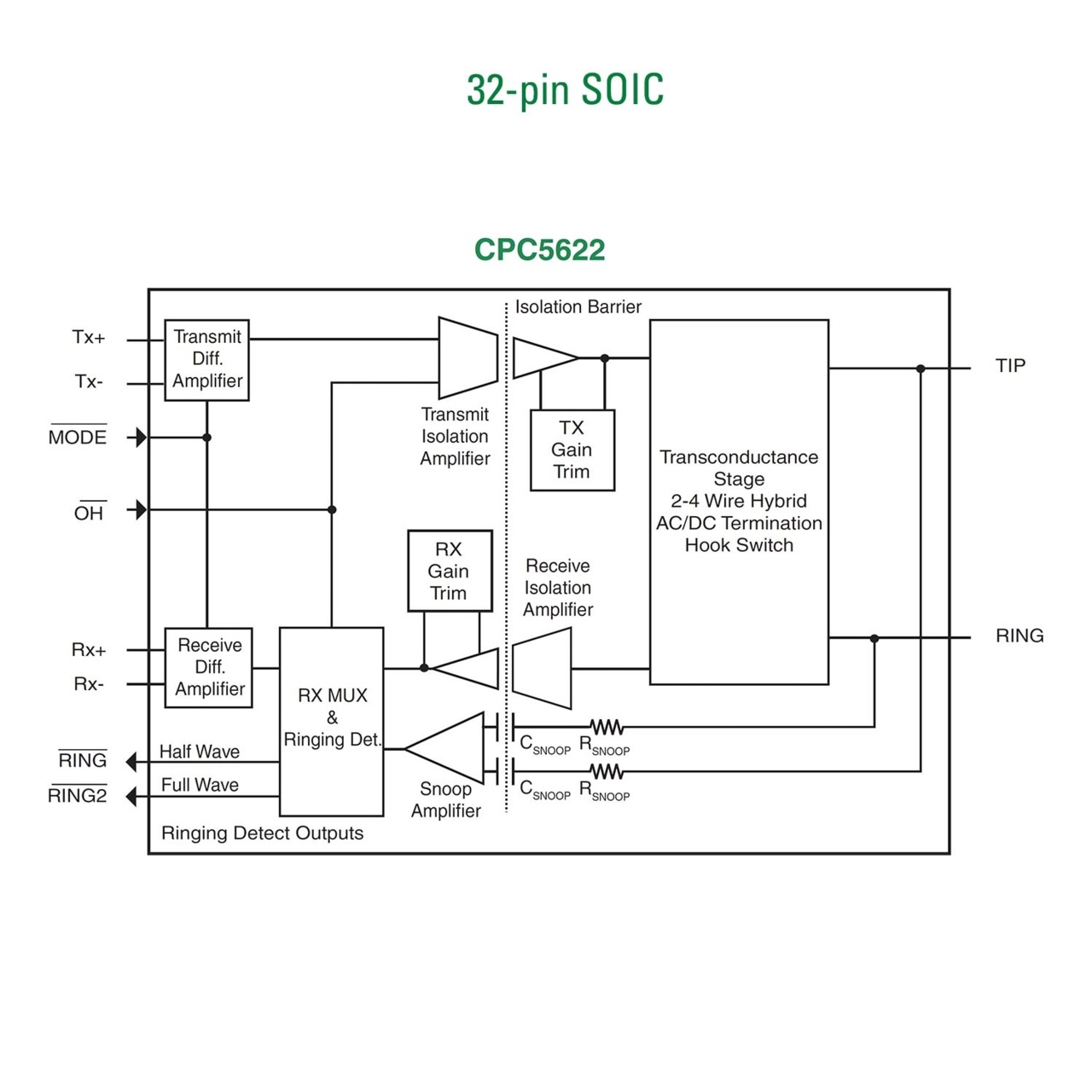

LITELINK single-chip Silicon phone line interfaces (DAA) use optical technology to include the required isolation barrier in the package, eliminating high cost capacitors or transformers. This solution saves cost relative to competitive solutions through reduced passive component count and smaller printed-circuit board space. LITELINK supports differential and single-end receive and transmit ports providing an easy interface to popular modem ICs codecs and voice SLAC devices.
