171294 Series
Manufacturer: Molex
Beta
⌘K

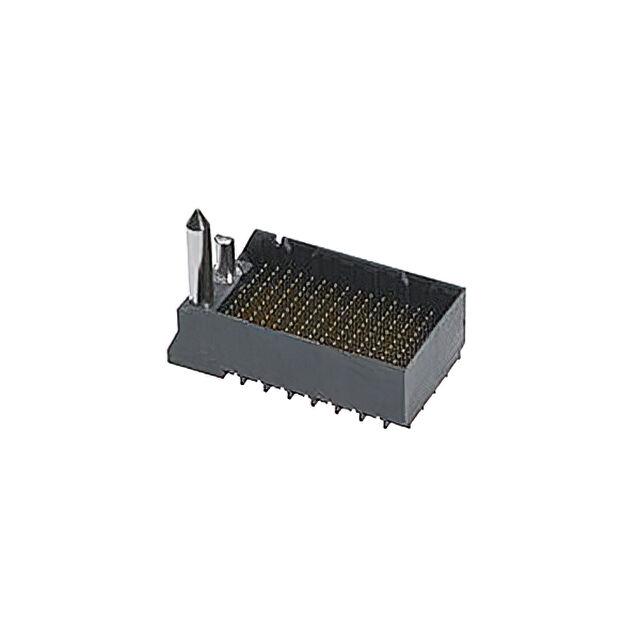

IMPACT 100 OHM 4 PAIR VERTICAL BACKPLANE HEADER, LEFT GUIDED, ENDWALL, 16 COLUMNS, 192 CIRCUITS, PIN LENGTH 5.50MM, PLATED THROUGH HOLE DIMENSION 0.39MM, POLARIZING KEY POSITION A, 0.254ΜM GOLD
| Part | Voltage Rating | Operating Temperature (Min) | Operating Temperature (Max) | Material Flammability Rating | Termination | Number of Positions Loaded | Connector Type | Number of Positions | Pitch | Mounting Type | Contact Finish | Contact Finish Thickness | Number of Rows | Color | Differential Pairs (Typical) | Number of Columns | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 30 V | -55 °C | 85 °C | UL94 V-0 | Press-Fit | All | Header Male Pins | 192 | 0.075 in | Through Hole | Gold | 10 Ąin | 12 | Black | 64 | 16 | Guide Left Impact |
 Molex | Press-Fit | All | Header Male Pins | 192 | Through Hole | Gold | 10 Ąin | 12 | Black | 64 | 16 | Impact | |||||
 Molex | 30 V | -55 °C | 85 °C | UL94 V-0 | Press-Fit | All | Header Male Pins | 96 | 0.075 in | Through Hole | Gold | 10 Ąin | 12 | Black | 32 | 8 | Impact |
