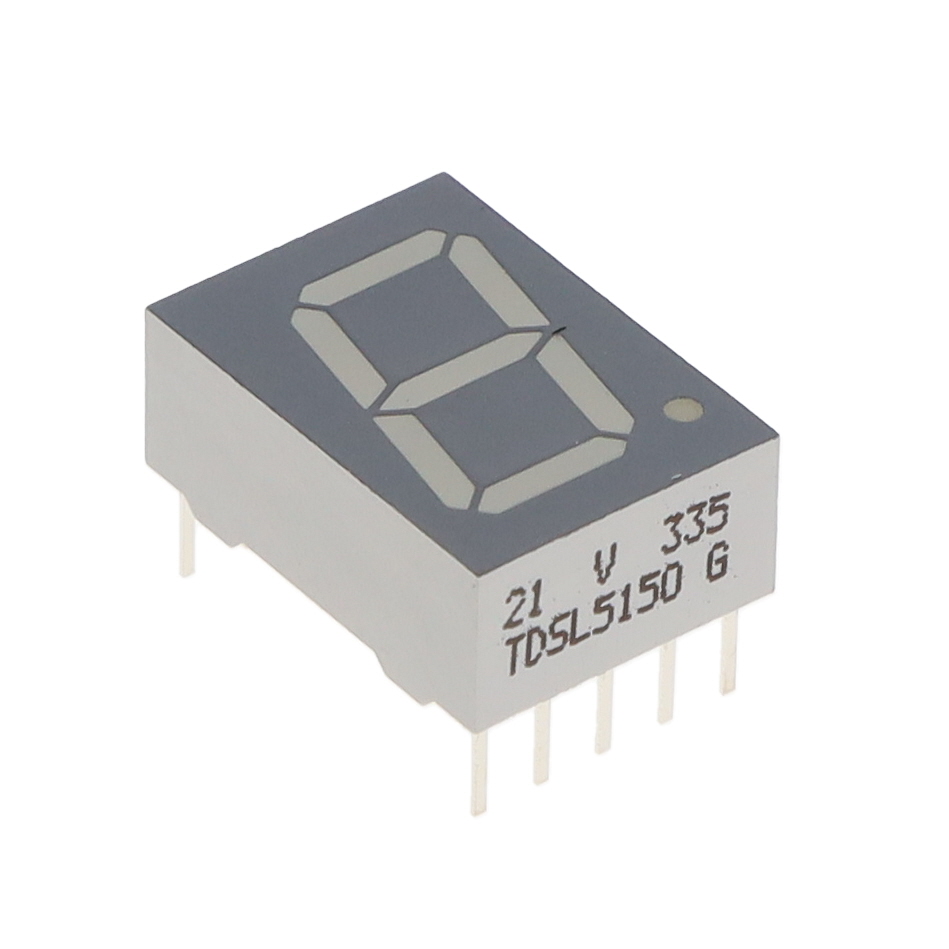

TDSL5150 Series

Catalog

DISPLAY 7SEG 0.51" SGL RED 10DIP

Part	Power Dissipation (Max)	Color	Voltage - Forward (Vf) (Typ)	Size / Dimension Height	Size / Dimension Width	Size / Dimension Depth	Package Length	Package Name	Wavelength - Peak	Current - Test	Display Type	Millicandela Rating	Common Pin	Number of Characters	Digit/Alpha Size
Vishay Semiconductor Opto Division TDSL5150-FG	320 mW	Red	1.8 V	0.689 in	0.482 in	0.252 in	0.6 in	10-DIP	635 nm	2 mA	7-Segment	0.9 mcd	Common Anode	1	0.51 in
Vishay Semiconductor Opto Division TDSL5150	320 mW	Red	1.8 V	0.689 in	0.482 in	0.252 in	0.6 in	10-DIP	635 nm	2 mA	7-Segment	0.4 mcd	Common Anode	1	0.51 in
Vishay Semiconductor Opto Division TDSL5150-GH	320 mW	Red	1.8 V	0.689 in	0.482 in	0.252 in	0.6 in	10-DIP	635 nm	2 mA	7-Segment	1.4 mcd	Common Anode	1	0.51 in
