PET Series

Catalog

CONN TERMINAL STRIP HDR 6POWER POS 2.54MM/3.81MM SOLDER ST TOP ENTRY THRU-HOLE POWERSTRIP™ TRAY

Part	Termination	Number of Positions	Connector Type	Pitch	Color	Number of Rows	Mounting Type	Material - Insulation	Fastening Type	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish	Voltage Rating	Contact Finish Thickness	Contact Material	Features
Samtec Inc. PET-06-02-L-VT	Solder	6	Header Male Blades	0.25 in	Black	1	Through Hole

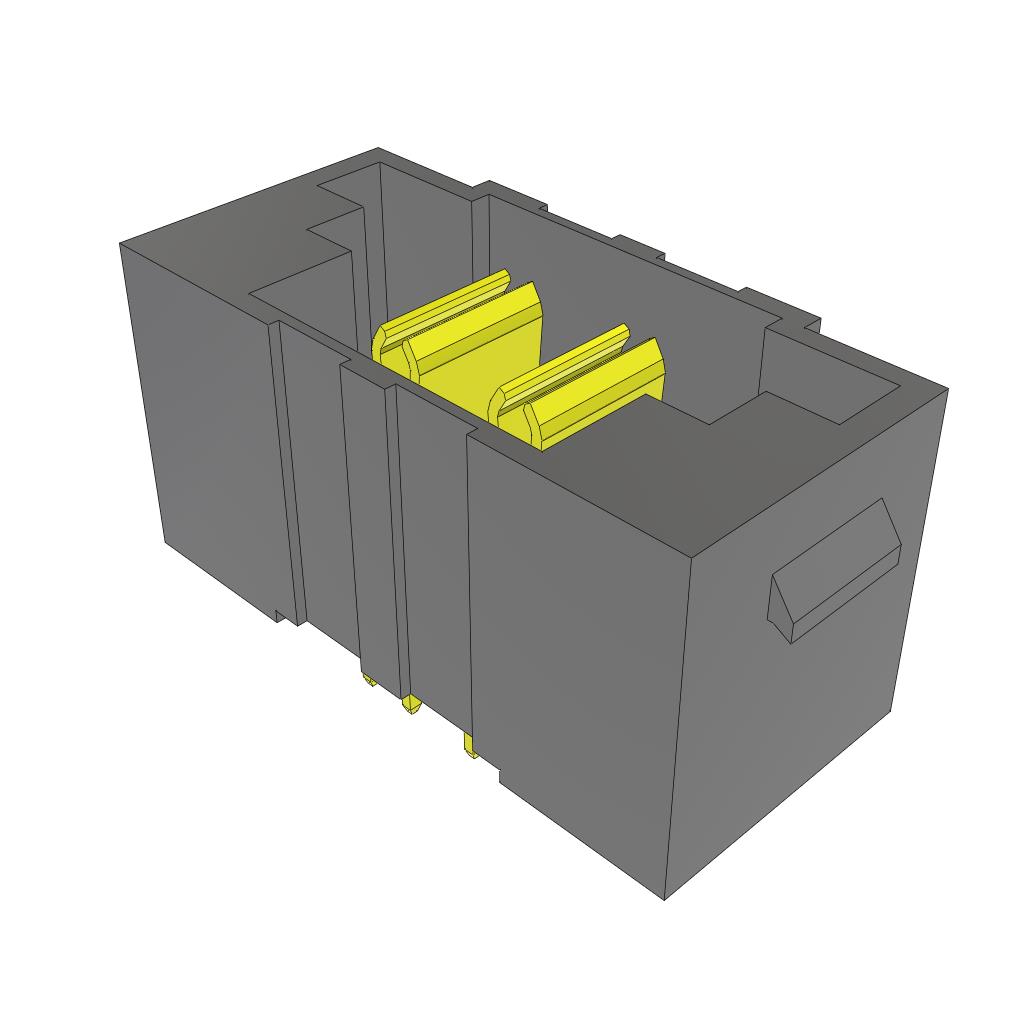

Samtec Inc. PET-02-02-S-VT-LC	Solder	2	Header Male Blades	0.25 in	Black	1	Through Hole	LCP Liquid Crystal Polymer	Locking Ramp	58.7 A	125 °C	-55 °C	Gold	450 VAC	30 µin	Copper Alloy	Board Lock
Samtec Inc. PET-06-02-S-RA-LC	Solder	6	Header Male Blades	0.25 in	Black	1	Board Edge Right Angle Through Hole	LCP Liquid Crystal Polymer	Locking Ramp	58.7 A	125 °C	-55 °C	Gold	450 VAC	30 µin	Copper Alloy	Board Lock
Samtec Inc. PET-06-01-T-RA-SD	Solder	6	Header Male Blades	0.25 in	Black	1	Board Edge Right Angle Through Hole	LCP Liquid Crystal Polymer	Locking Ramp	58.7 A	105 °C	-55 °C	Tin	450 VAC		Copper Alloy	Flange
Samtec Inc. PET-08-02-S-VT-LC	Solder	8	Header Male Blades	0.25 in	Black	1	Through Hole	LCP Liquid Crystal Polymer	Locking Ramp	58.7 A	125 °C	-55 °C	Gold	450 VAC	30 µin	Copper Alloy	Board Lock
Samtec Inc. PET-08-02-L-VT-NL-LC	Solder	8	Header Male Blades	0.25 in	Black	1	Through Hole	LCP Liquid Crystal Polymer		58.7 A	125 °C	-55 °C	Gold	450 VAC	10 Ąin	Copper Alloy	Board Lock
Samtec Inc. PET-02-02-L-VT	Solder	2	Header Male Blades		Black	1	Through Hole
Samtec Inc. PET-08-01-L-VT-LC	Solder	8	Header Male Blades	0.25 in	Black	1	Through Hole	LCP Liquid Crystal Polymer	Locking Ramp	58.7 A	125 °C	-55 °C	Gold	450 VAC	10 Ąin	Copper Alloy	Board Lock
Samtec Inc. PET-04-01-S-VT-NL-LC	Solder	4	Header Male Blades	0.25 in	Black	1	Through Hole	LCP Liquid Crystal Polymer		58.7 A	125 °C	-55 °C	Gold	450 VAC	30 µin	Copper Alloy	Board Lock
Samtec Inc. PET-04-02-L-RA-LC	Solder	4	Header Male Blades		Black	1	Board Edge Right Angle Through Hole										Mounting Flange
