DST2060 Series

60V 20A Ultralow Schottky DST _TO-220AB

Catalog

60V 20A Ultralow Schottky DST _TO-220AB

Part	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Mounting Type	Voltage - Forward (Vf) (Max)	Speed - Fast Recovery (Maximum)	Speed - Fast Recovery (Minimum)	Technology	Package Name	Voltage - DC Reverse (Vr) (Max)	Diode Pair Count	Diode Configuration	Package / Case	Current - Average Rectified (Io) (per Diode)	Current - Reverse Leakage	Current - Average Rectified (Io)	Package Length	Package Width
LITTELFUSE DST2060C	150 °C	-55 °C	Through Hole	645 mV	500 ns	200 mA	Schottky	TO-220AB	60 V	1 pair	Common Cathode	TO-220-3	10 A	850 µA

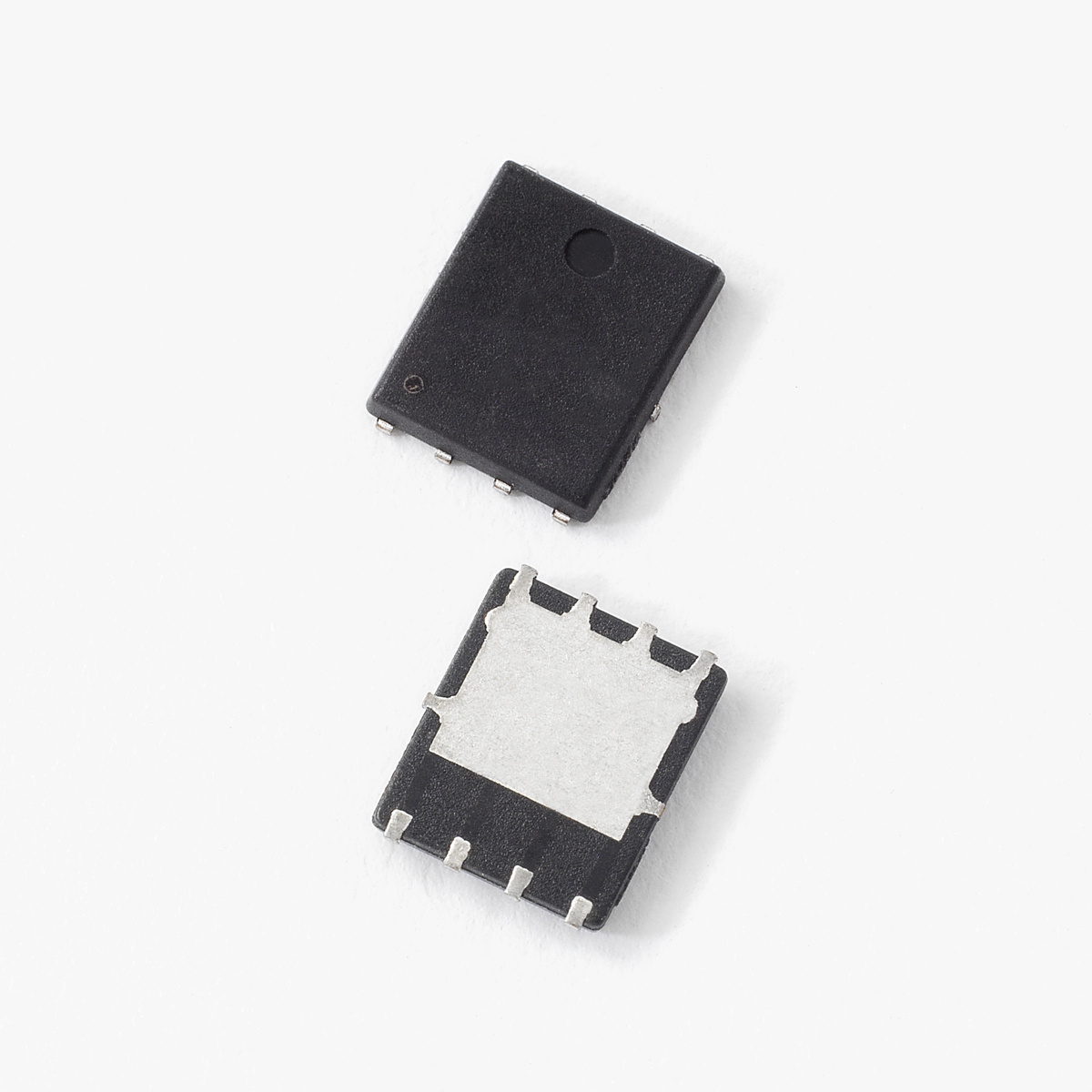

LITTELFUSE DST2060DJF	150 °C	-55 °C	Surface Mount	750 mV	500 ns	200 mA	Schottky	8-PDFN	60 V			8-PowerVDFN		1 mA	20 A	5 mm	6 mm

Catalog

60V 20A Ultralow Schottky DST _TO-220AB

Description

Littelfuse DST series Ultra Low VF Schottky Barrier Rectifier is designed to meet the general requirements of commercial and industry applications by providing high temperature, low leakage and lower VF products. It is suitable for high frequency switching mode power supply, free-wheeling diodes and polarity protection diodes.
