70V5388 Series

64K x 18 FourPort RAM

Manufacturer: Renesas Electronics Corporation

Catalog

64K x 18 FourPort RAM

Part	Mounting Type	Memory Format	Memory Type	Access Time	Memory Size	Technology	Package / Case	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Clock Frequency	Operating Temperature (Min)	Operating Temperature (Max)	Memory Interface (Type)	Package Length	Package Name	Package Width	Memory Width	Memory Depth
Renesas Electronics Corporation 70V5388S100BG	Surface Mount	SRAM	Volatile	3.6 ns	1.125 Mbit	SRAM - Quad Port Synchronous	272-BBGA	3.15 V	3.45 V	100 MHz	0 °C	70 °C	Parallel	27 mm	272-PBGA	27 mm	18 bit	64 K

Catalog

64K x 18 FourPort RAM

Description

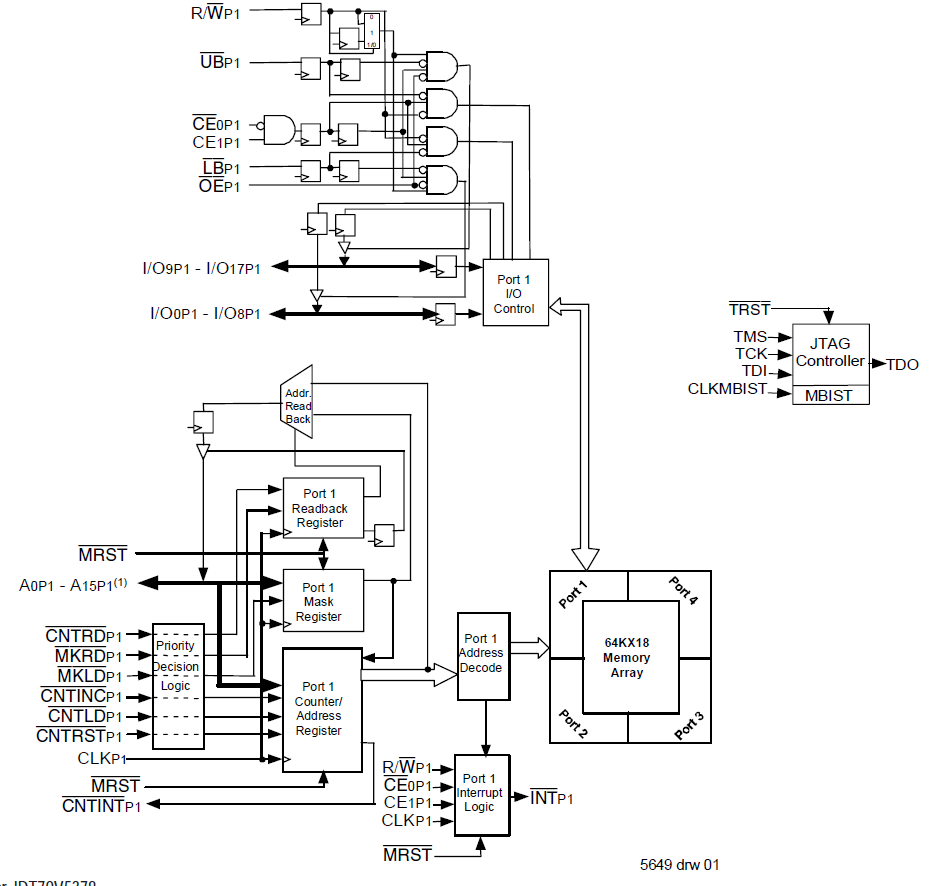

The 70V5388 is a high-speed 64Kx18 bit synchronous FourPort RAM that allows simultaneous access of any address from all four ports and is optimized for applications having unidirectional or bi-directional data flow in bursts. An automatic power down feature, controlled by CE0 and CE1, permits the on-chip circuitry of each port to enter a very low standby power mode. It provides a wide range of functions specially designed to facilitate system operations.
