MC15XS3400 Series

Catalog

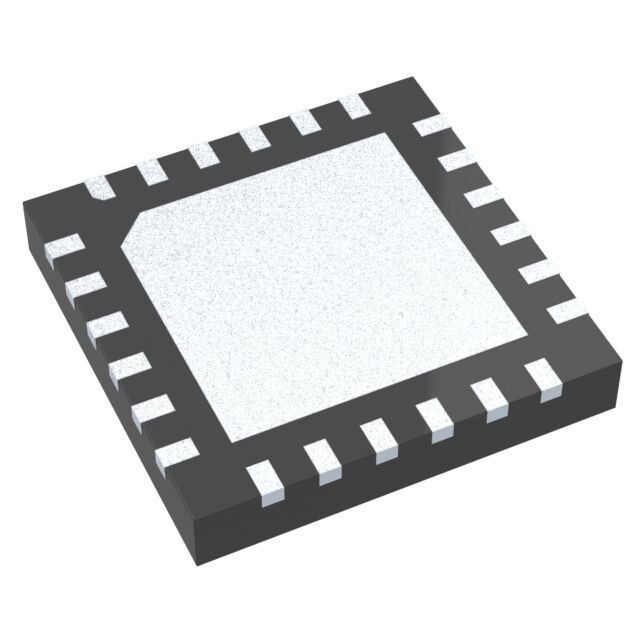

HIGH-SIDE SWITCH, 12V, QUAD 15MOHMS, PQFN 24/ TRAY ROHS COMPLIANT: YES

Part	Interface	Output Ratio	Input Ratio	Package Name	Package Length	Package Width	Rds On (Typ)	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Operating Temperature (Min)	Operating Temperature (Max)	Package / Case	Current - Output (Max)	Fault Protection	Output Type	Number of Outputs	Output Configuration	Switch Type	Mounting Type	Voltage - Load (Min)	Voltage - Load (Max)	Features
NXP USA Inc. MC15XS3400CHFK	SPI	1	1	24-PQFN	12 mm	12 mm	15 mOhm	3 V	5.5 V	-40 °C	150 °C	24-PowerQFN	6 A	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	N-Channel	4	High Side	General Purpose	Surface Mount	6 V	20 V	Internal PWM Slew Rate Controlled Watchdog Timer
NXP USA Inc. MC15XS3400CHFKR2	SPI	1	1	24-PQFN	12 mm	12 mm	15 mOhm	3 V	5.5 V	-40 °C	150 °C	24-PowerQFN	6 A	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	N-Channel	4	High Side	General Purpose	Surface Mount	6 V	20 V	Internal PWM Slew Rate Controlled Watchdog Timer
NXP USA Inc. MC15XS3400DHFK	SPI	1	1	24-PQFN	12 mm	12 mm	15 mOhm	3 V	5.5 V	-40 °C	150 °C	24-PowerQFN	6 A	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	N-Channel	4	High Side	General Purpose	Surface Mount	6 V	20 V	Internal PWM Slew Rate Controlled Watchdog Timer
