3221-40 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

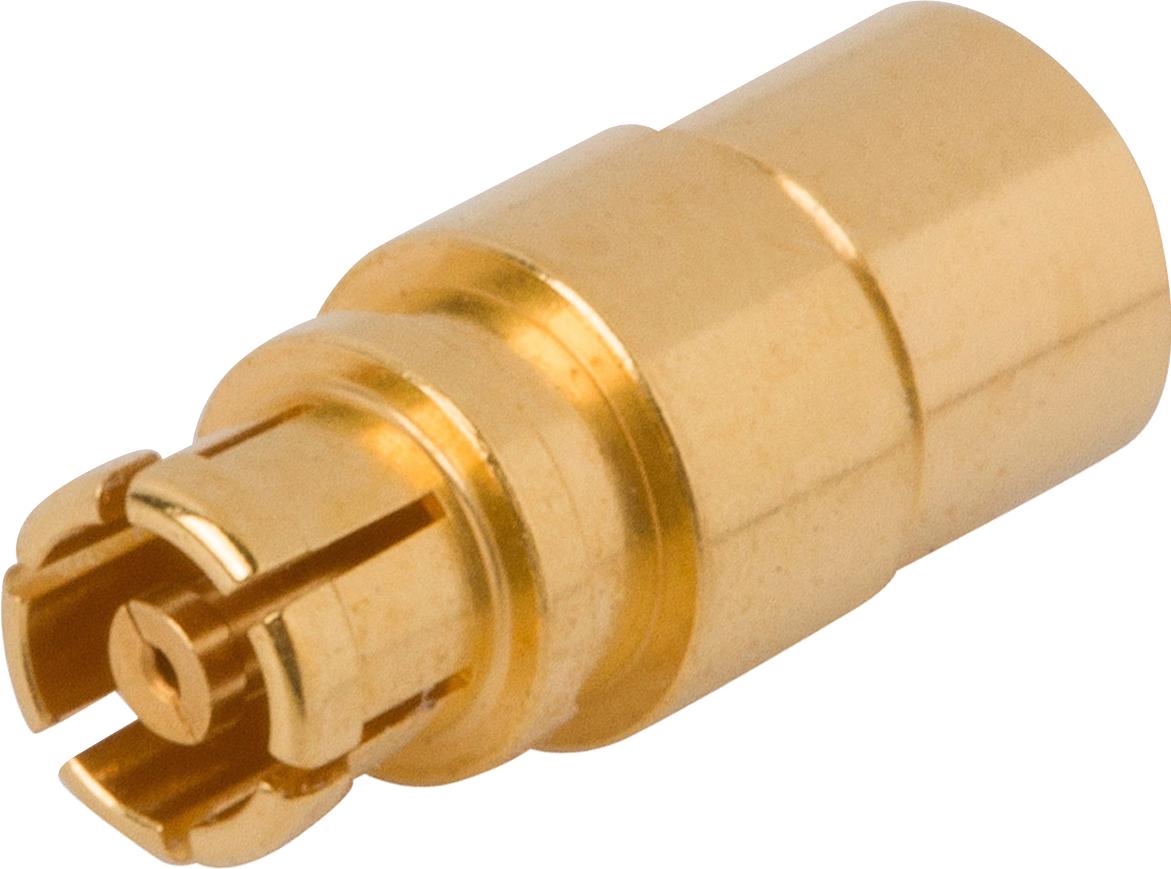

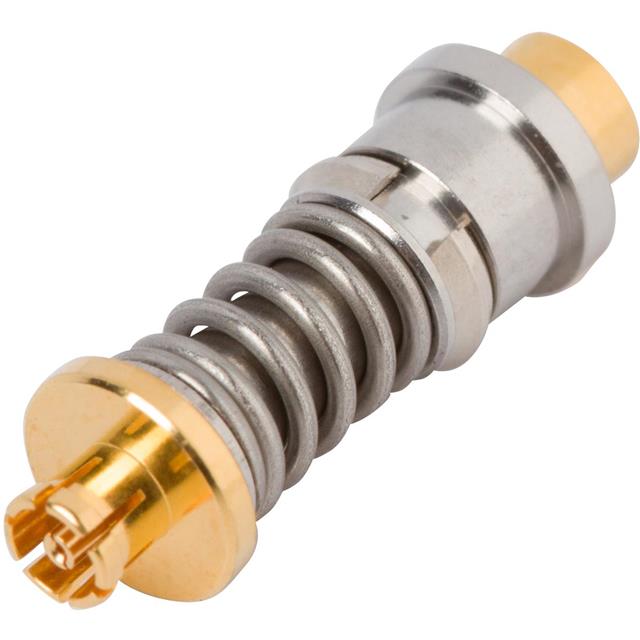

SMPM FEMALE VITA 67.3 CONTACT
| Part | Mounting Type | Contact Finish | Board Thickness | Contact Material | Center Conductor Diameter | Cable Group Diameter (Default) | Cable Group | Impedance | Type | Pin or Socket | Body Material | Dielectric Material | Body Finish | Center Contact Plating | Operating Temperature (Min) | Operating Temperature (Max) | Contact Termination | Frequency - Max | Fastening Type | Number of Ports | Center Contact Material | Shield Termination | Housing Color | Cable Group Size | Connector Type | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Free Hanging (In-Line) | Gold | 0.093 in | Beryllium Copper | 0.095 in | 0.085 in | RG-405 | 50 Ohm | SMPM | Socket | ||||||||||||||||
 McGill Microwave Systems | Free Hanging (In-Line) | Semi Rigid | 50 Ohm | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Gold | Gold | -65 °C | 165 °C | Solder | 40 Gbps | Snap-On | 1 | Beryllium Copper | Solder | Gold | 0.047 " | Female Socket Jack | SMPM | |||||||
 McGill Microwave Systems | Free Hanging (In-Line) | 0.085 in | RG-405 | 50 Ohm | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Gold | Gold | Solder | 40 Gbps | Snap-On | 1 | Beryllium Copper | Solder | Gold | Female Socket Jack | SMPM |
