RHA Series

Catalog

WIREWOUND RESISTORS - CHASSIS MOUNT 12.5WATT 10OHM 1% AEC-200

Part	Resistance	Composition	Qualification	Housing Type	Coating	Operating Temperature (Max)	Operating Temperature (Min)	Height - Seated (Max)	Grade	Tolerance	Package / Case	Mounting Feature	Size / Dimension Length	Size / Dimension Width	Lead Style	Temperature Coefficient	Power (Watts)

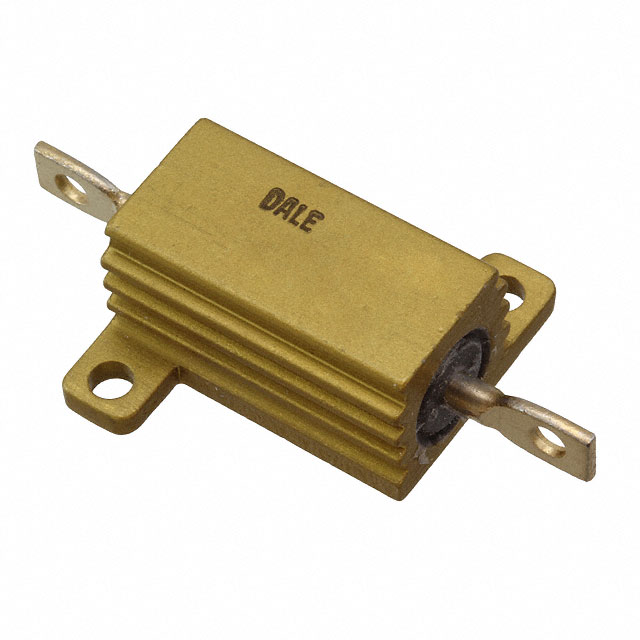

Vishay Dale RHA01010R00FE02	10 Ohms	Wirewound	AEC-Q200	Aluminum	Aluminum	250 °C	-55 °C	0.405 in	Automotive	1 %	Axial Box	Flanges	0.75 in	0.8 in	Solder Lugs	20 ppm/¯C	12.5 W
Vishay Dale RHA05015R00FE02	15 Ohm	Wirewound	AEC-Q200	Aluminum	Aluminum	250 °C	-55 °C	0.625 in	Automotive	1 %	Axial Box	Flanges	1.968 in	1.14 in	Solder Lugs	20 ppm/¯C	50 W

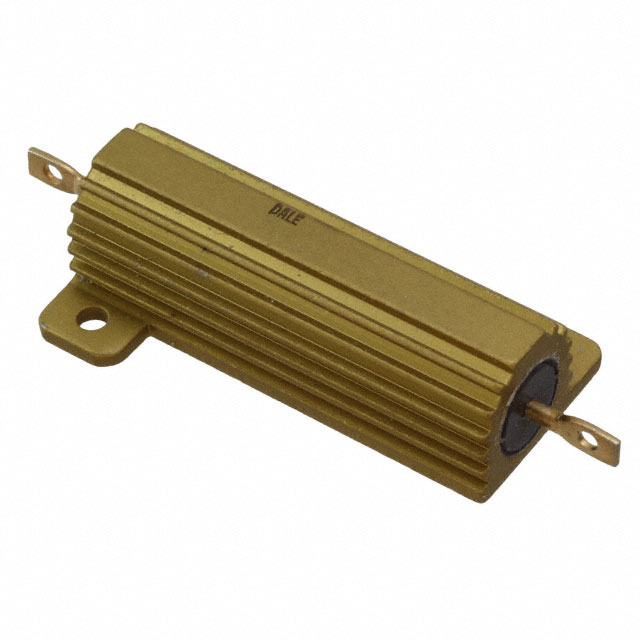

Vishay Dale RHA0501R000FE02	1 Ohm	Wirewound	AEC-Q200	Aluminum	Aluminum	250 °C	-55 °C	0.625 in	Automotive	1 %	Axial Box	Flanges	1.968 in	1.14 in	Solder Lugs	50 ppm/°C	50 W
Vishay Dale RHA05030K00FE02	30 kOhm	Wirewound	AEC-Q200	Aluminum	Aluminum	250 °C	-55 °C	0.625 in	Automotive	1 %	Axial Box	Flanges	1.968 in	1.14 in	Solder Lugs	20 ppm/¯C	50 W

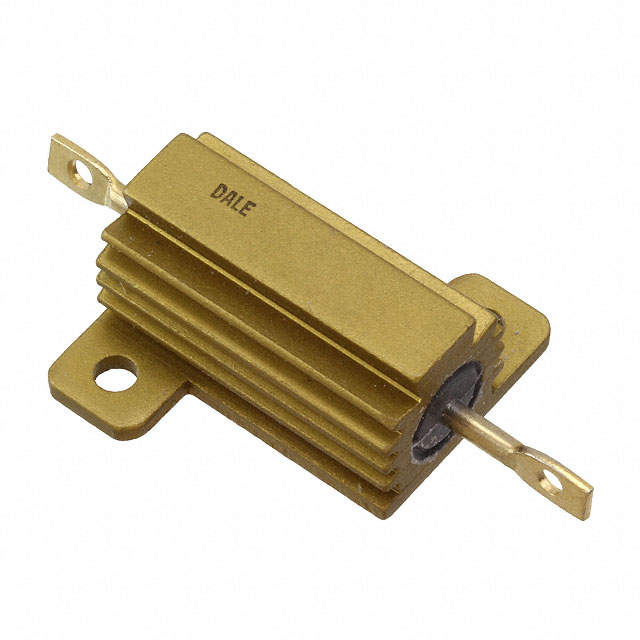

Vishay Dale RHA02550R00FE02	50 Ohms	Wirewound	AEC-Q200	Aluminum	Aluminum	250 °C	-55 °C	0.561 in	Automotive	1 %	Axial Box	Flanges	1.062 in	1.08 in	Solder Lugs	20 ppm/¯C	25 W
Vishay Dale RHA050300R0FE02	300 Ohm	Wirewound	AEC-Q200	Aluminum	Aluminum	250 °C	-55 °C	0.625 in	Automotive	1 %	Axial Box	Flanges	1.968 in	1.14 in	Solder Lugs	20 ppm/¯C	50 W
Vishay Dale RHA02575R00FE02	75 Ohm	Wirewound	AEC-Q200	Aluminum	Aluminum	250 °C	-55 °C	0.561 in	Automotive	1 %	Axial Box	Flanges	1.062 in	1.08 in	Solder Lugs	20 ppm/¯C	25 W
