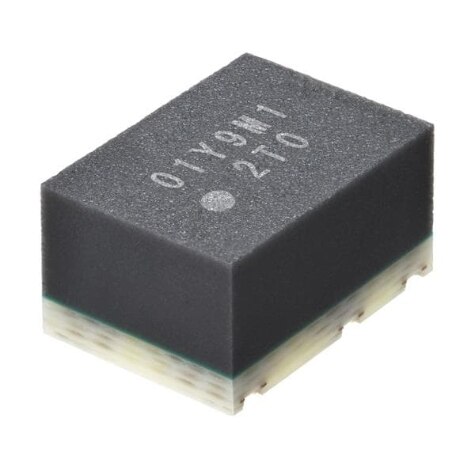

G3VM-21 Series
Solid State Relays - PCB Mount MOSFET Relay Module 1a SPST-NO + Tswitch
Manufacturer: Omron Electronics Inc-EMC Div
Catalog
Solid State Relays - PCB Mount MOSFET Relay Module 1a SPST-NO + Tswitch
Beta
⌘K
Solid State Relays - PCB Mount MOSFET Relay Module 1a SPST-NO + Tswitch
Solid State Relays - PCB Mount MOSFET Relay Module 1a SPST-NO + Tswitch
Solid State Relays - PCB Mount MOSFET Relay Module 1a SPST-NO + Tswitch
| Part | Mounting Type | On-State Resistance (Max) | Voltage - Input | Circuit | Output Type | Voltage - Load (Min) | Voltage - Load (Max) | Load Current | Package Name | Package Length | Package Width | Operating Temperature (Min) | Operating Temperature (Max) | Termination Style | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Surface Mount | 5 Ohm | 1.15 V 1.35 VDC | SPST-NO (1 Form A) | AC DC | 0 V | 20 V | 200 mA | 4-SMD 4-SSOP | 0.165 in | 4.2 mm | -40 °C | 85 °C | SMD (SMT) Tab | |
 Omron Electronics Inc-EMC Div | Surface Mount | 12 Ohm | 1.27 VDC | SPST-NO (1 Form A) | AC DC | 0 V | 20 V | 200 mA | Module | -40 °C | 85 °C | SMD (SMT) Tab | Module | ||
 Omron Electronics Inc-EMC Div | Surface Mount | 5 Ohm | 1.15 V | SPST-NO (1 Form A) | AC DC | 0 V | 20 V | 200 mA | 4-SMD 4-USOP | 0.128 in | 3.25 mm | -40 °C | 85 °C | SMD (SMT) Tab | |
 Omron Electronics Inc-EMC Div | Surface Mount | 50 mOhms | 1.33 VDC | SPST-NO (1 Form A) | AC DC | 0 V | 20 V | 4 A | 6-SMD | 0.3 in | 7.62 mm | -40 °C | 85 °C | Gull Wing | |
Omron Electronics Inc-EMC Div | Surface Mount | 5 Ohm | 1.15 V | SPST-NO (1 Form A) | AC DC | 0 V | 20 V | 200 mA | 4-SMD 4-USOP | 0.128 in | 3.25 mm | -40 °C | 85 °C | SMD (SMT) Tab | |
 Omron Electronics Inc-EMC Div | Surface Mount | 220 mOhms | 1.15 V | SPST-NO (1 Form A) | AC DC | 0 V | 20 V | 900 mA | 4-SMD 4-SSOP | 0.165 in | 4.2 mm | -40 °C | 85 °C | SMD (SMT) Tab | |
 Omron Electronics Inc-EMC Div | Through Hole | 80 mOhms | 1.33 VDC | SPST-NO (1 Form A) | AC DC | 0 V | 20 V | 3 A | 4-DIP | 0.3 in | 7.62 mm | -40 °C | 85 °C | PC Pin | |
 Omron Electronics Inc-EMC Div | Surface Mount | 50 mOhms | 1.33 VDC | SPST-NO (1 Form A) | AC DC | 0 V | 20 V | 4 A | 6-SMD | 0.3 in | 7.62 mm | -40 °C | 85 °C | Gull Wing | |
Omron Electronics Inc-EMC Div | Surface Mount | 220 mOhms | 1.15 V | SPST-NO (1 Form A) | AC DC | 0 V | 20 V | 900 mA | 4-SMD 4-SSOP | 0.165 in | 4.2 mm | -40 °C | 85 °C | SMD (SMT) Tab | |
Omron Electronics Inc-EMC Div | Surface Mount | 1.2 Ohm | 1.15 V | SPST-NO (1 Form A) | AC DC | 0 V | 20 V | 450 mA | 4-SMD 4-SSOP | 0.165 in | 4.2 mm | -40 °C | 85 °C | SMD (SMT) Tab |
