284517 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
TERM BLOCK HDR 9POS VERT 3.81MM
| Part | Insulation Height | Material Flammability Rating | Contact Material | Housing Material | Color | Current - UL | Pitch | Operating Temperature (Min) | Operating Temperature (Max) | Number of Positions | Termination Style | Contact Mating Finish | Number of Levels | Header Orientation | Voltage - UL | Type | Positions Per Level | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

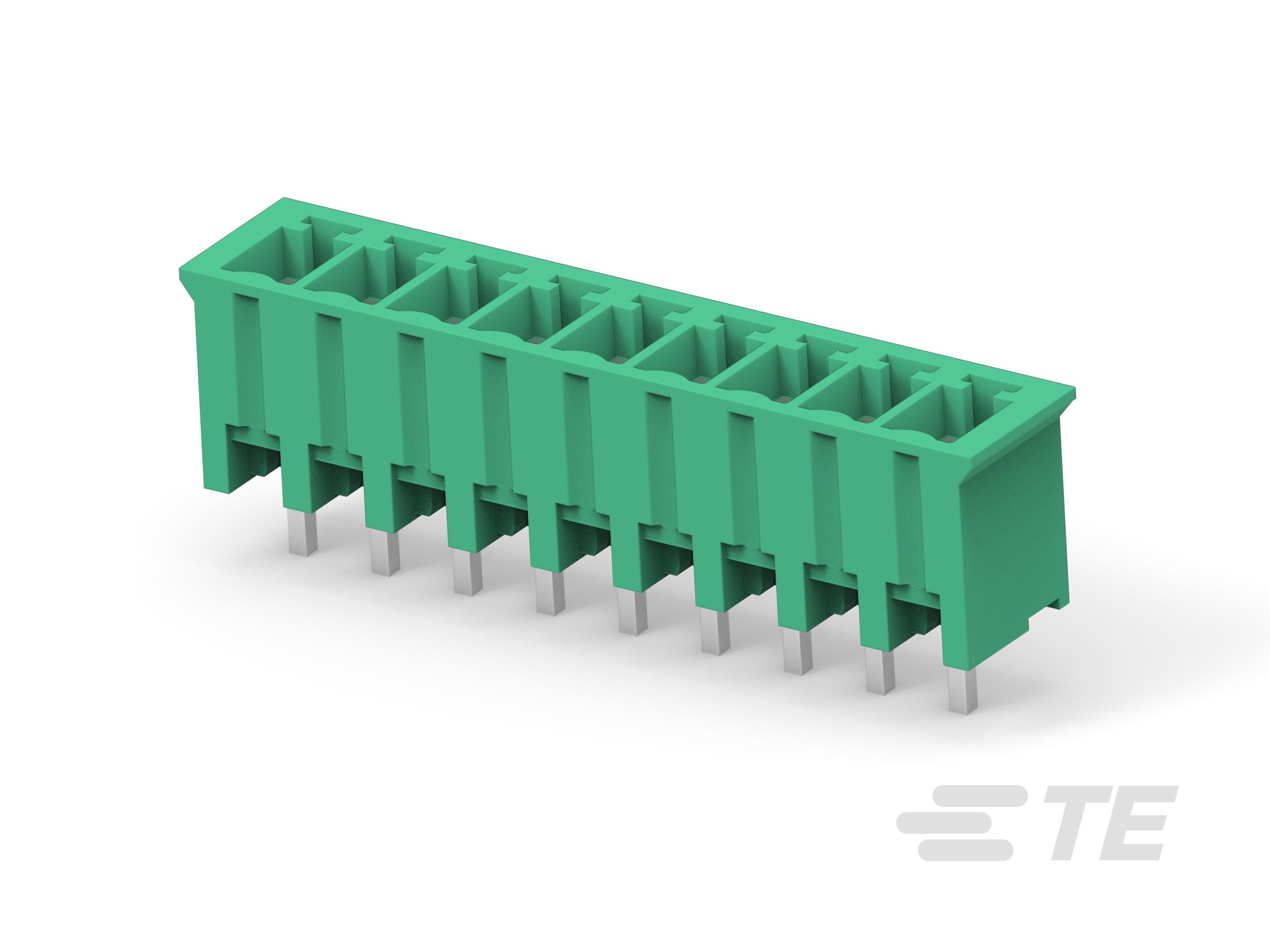

 TE Connectivity AMP Connectors | 0.362 in | UL94 V-0 | Phosphor Bronze | Nylon 6/6 PA66 Polyamide | Green | 11 A | 0.15 in | -40 °C | 110 °C | 9 | Solder | Tin | 1 | Vertical | 300 V | Header Male Pins Shrouded (4 Side) | 9 | Through Hole |
 TE Connectivity AMP Connectors | 0.362 in | UL94 V-0 | Phosphor Bronze | Nylon 6/6 PA66 Polyamide | Green | 11 A | 0.15 in | -40 °C | 110 °C | 4 | Solder | Tin | 1 | Vertical | 300 V | Header Male Pins Shrouded (4 Side) | 4 | Through Hole |
 TE Connectivity AMP Connectors | 0.362 in | UL94 V-0 | Phosphor Bronze | Nylon 6/6 PA66 Polyamide | Green | 11 A | 0.15 in | -40 °C | 110 °C | 18 | Solder | Tin | 1 | Vertical | 300 V | Header Male Pins Shrouded (4 Side) | 18 | Through Hole |

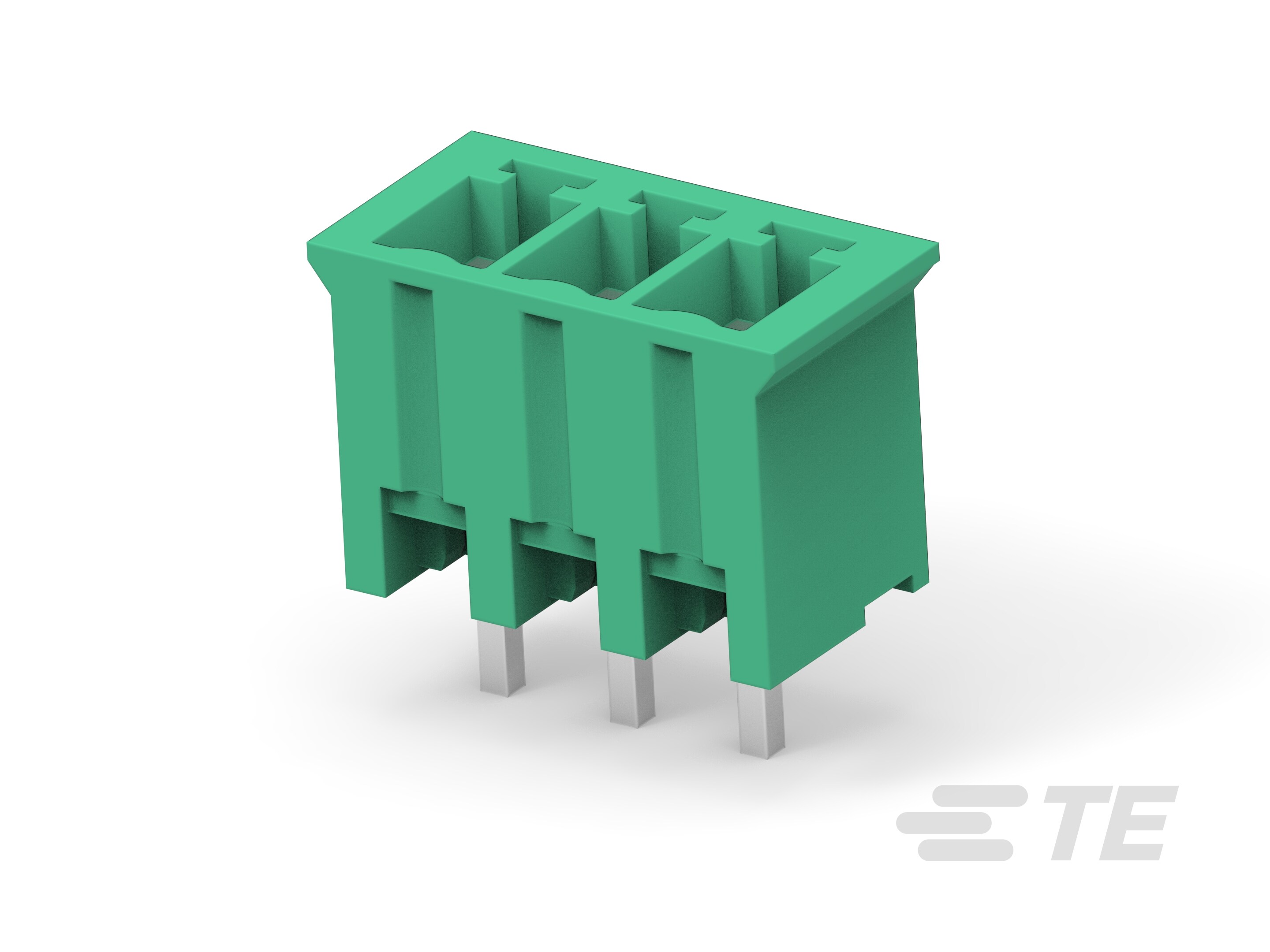

 TE Connectivity AMP Connectors | 0.362 in | UL94 V-0 | Phosphor Bronze | Nylon 6/6 PA66 Polyamide | Green | 11 A | 0.15 in | -40 °C | 110 °C | 3 | Solder | Tin | 1 | Vertical | 300 V | Header Male Pins Shrouded (4 Side) | 3 | Through Hole |
 TE Connectivity AMP Connectors | 0.362 in | UL94 V-0 | Phosphor Bronze | Nylon 6/6 PA66 Polyamide | Green | 11 A | 0.15 in | -40 °C | 110 °C | 8 | Solder | Tin | 1 | Vertical | 300 V | Header Male Pins Shrouded (4 Side) | 8 | Through Hole |

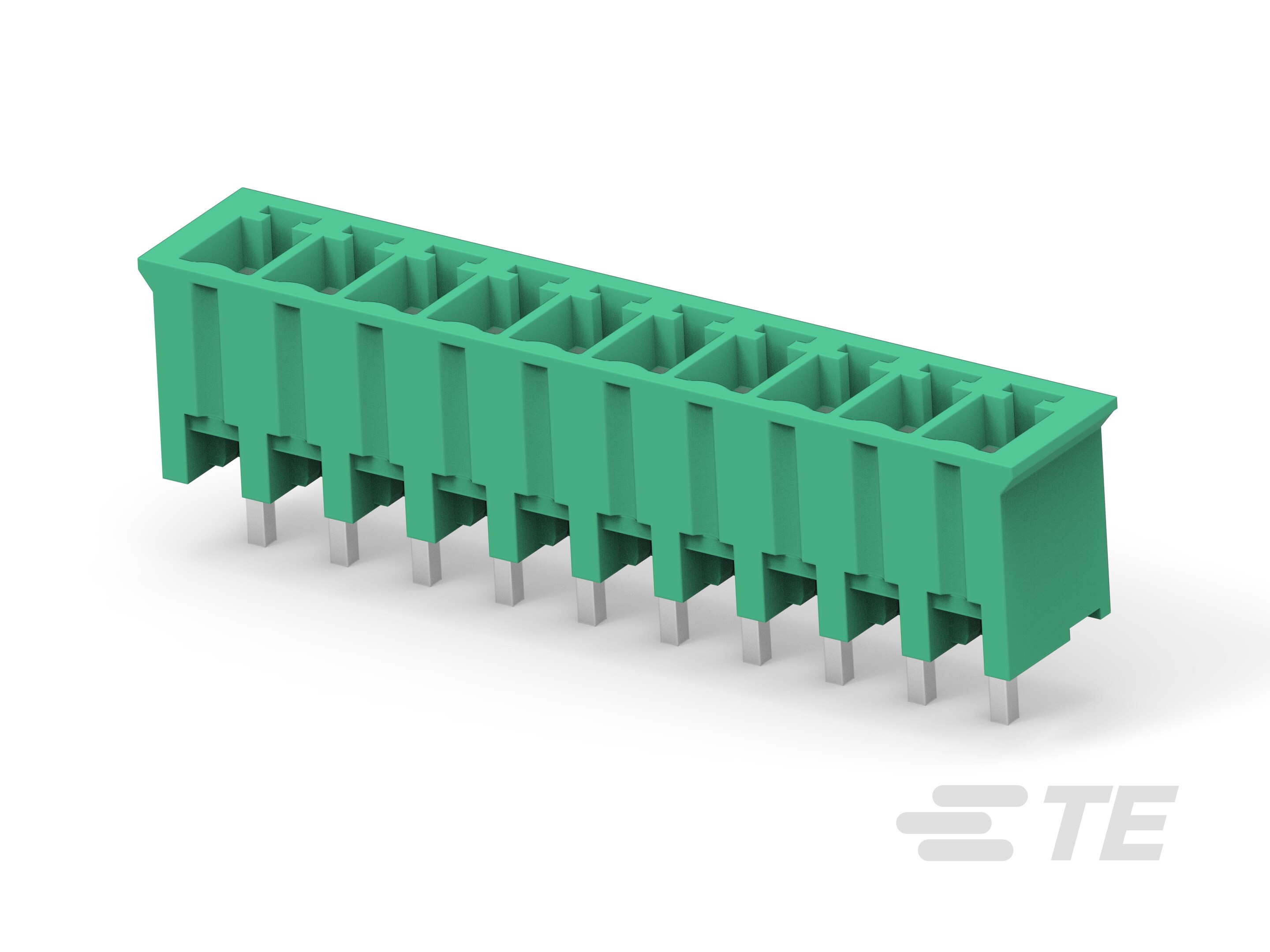

 TE Connectivity AMP Connectors | 0.362 in | UL94 V-0 | Phosphor Bronze | Nylon 6/6 PA66 Polyamide | Green | 11 A | 0.15 in | -40 °C | 110 °C | 10 | Solder | Tin | 1 | Vertical | 300 V | Header Male Pins Shrouded (4 Side) | 10 | Through Hole |
 TE Connectivity AMP Connectors | 0.362 in | UL94 V-0 | Phosphor Bronze | Nylon 6/6 PA66 Polyamide | Green | 11 A | 0.15 in | -40 °C | 110 °C | 6 | Solder | Tin | 1 | Vertical | 300 V | Header Male Pins Shrouded (4 Side) | 6 | Through Hole |
 TE Connectivity AMP Connectors | 0.362 in | UL94 V-0 | Phosphor Bronze | Nylon 6/6 PA66 Polyamide | Green | 11 A | 0.15 in | -40 °C | 110 °C | 7 | Solder | Tin | 1 | Vertical | 300 V | Header Male Pins Shrouded (4 Side) | 7 | Through Hole |

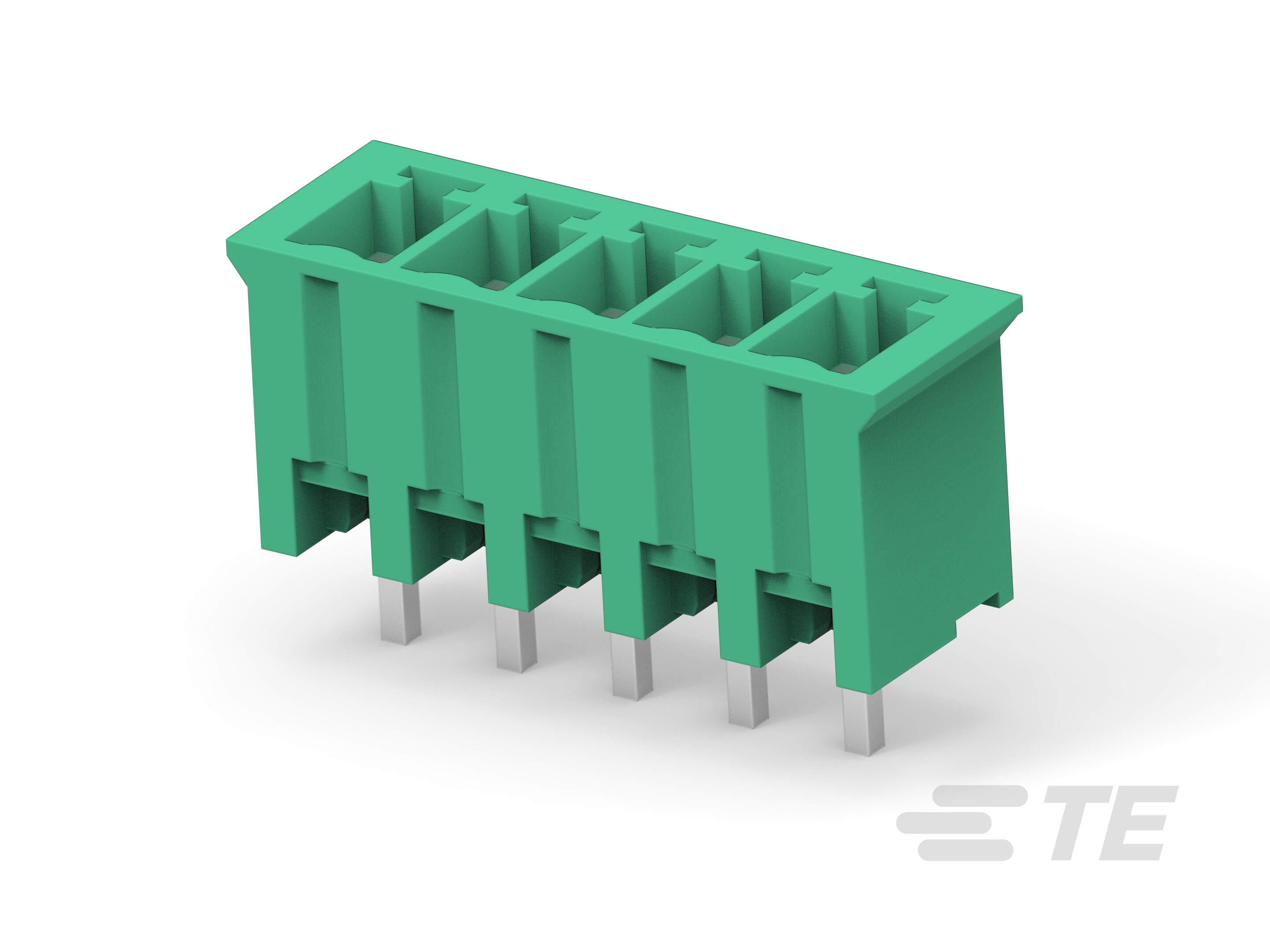

 TE Connectivity AMP Connectors | 0.362 in | UL94 V-0 | Phosphor Bronze | Nylon 6/6 PA66 Polyamide | Green | 11 A | 0.15 in | -40 °C | 110 °C | 5 | Solder | Tin | 1 | Vertical | 300 V | Header Male Pins Shrouded (4 Side) | 5 | Through Hole |
