6450832 Series

Catalog

CONN HDR MULT-BEAM 31POS EDGE MT

Part	Material Flammability Rating	Pitch	Features	Contact Finish Thickness	Contact Finish	Number of Positions Loaded	Connector Style	Number of Positions	Number of Rows	Termination	Power Contacts (Typical)	Signal Contacts (Typical)	Mounting Type	Connector Type	Color	Voltage Rating	Voltage Rating (Type)	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)

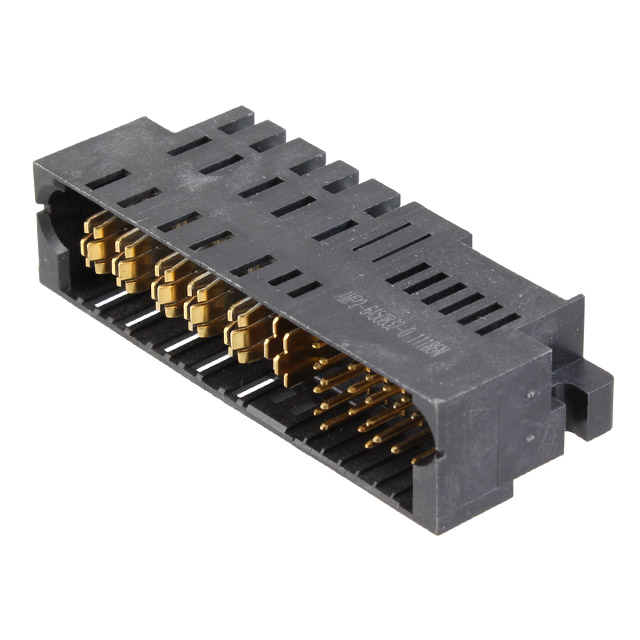

TE Connectivity AMP Connectors 2-6450832-0	UL94 V-0	0.1 in	Board Lock Mating Guide	30 µin	Gold	All	Multi-Beam	31	4	Solder	7	24	Board Edge Right Angle Through Hole	Blades Header Male Pins
TE Connectivity AMP Connectors 3-6450832-8	UL94 V-0	0.1 in	Board Lock Mating Guide	3 µin	Gold	All	Multi-Beam	31	4	Solder	7	24	Board Edge Right Angle Through Hole	Blades Header Male Pins	Black	300 VAC/DC	DC	75 A	125 °C	-40 °C
TE Connectivity AMP Connectors 6450832-2	UL94 V-0	0.1 in	Board Lock Mating Guide	3 µin	Gold	All	Multi-Beam	32	4	Solder	8	24	Through Hole	Blades Header Male Pins	Black	60 V		50 A	125 °C	-40 °C
TE Connectivity AMP Connectors 2-6450832-5	UL94 V-0	0.1 in	Board Lock Mating Guide	30 µin	Gold	All	Multi-Beam	31	4	Solder	7	24	Board Edge Right Angle Through Hole	Blades Header Male Pins
