TLPR5600 Series
Manufacturer: Vishay Semiconductor Opto Division
Beta
⌘K

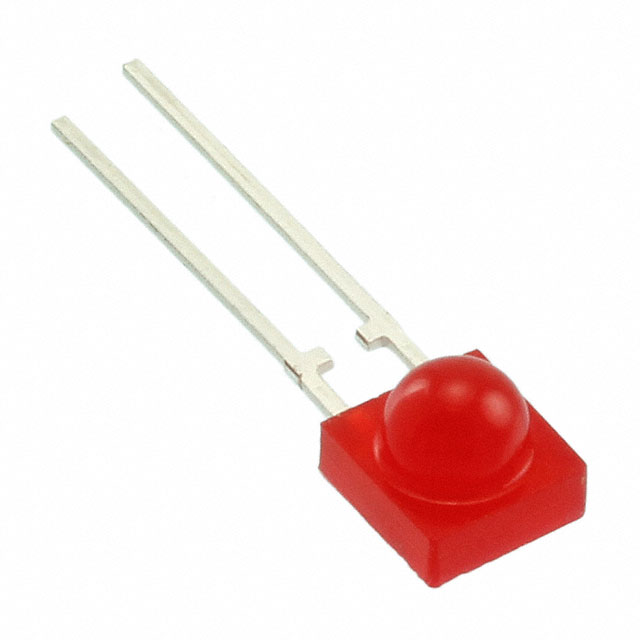

LED RED DIFFUSED 5MM T/H R/A
| Part | Millicandela Rating | Current - Test | Color | Viewing Angle | Lens Transparency | Wavelength - Peak | Height (Max) | Configuration | Mounting Type | Lens Style | Wavelength - Dominant | Package / Case | Supplier Device Package | Voltage - Forward (Vf) (Typ) | Package Name | Size / Dimension Width | Size / Dimension Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Semiconductor Opto Division | 3.5 mcd | 10 mA | Red | 160 ° | Diffused | 640 nm | 7.8 mm | Standard | Right Angle Through Hole | Domed Top Round | 630 nm | Radial | 5 mm | 2 V | |||
 Vishay Semiconductor Opto Division | 3.5 mcd | 10 mA | Red | 160 ° | Diffused | 640 nm | 7.8 mm | Standard | Right Angle Through Hole | Domed Top Round | 630 nm | Radial Side View | 2 V | Side View LED | 4 mm | 4.5 mm |
