747462 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

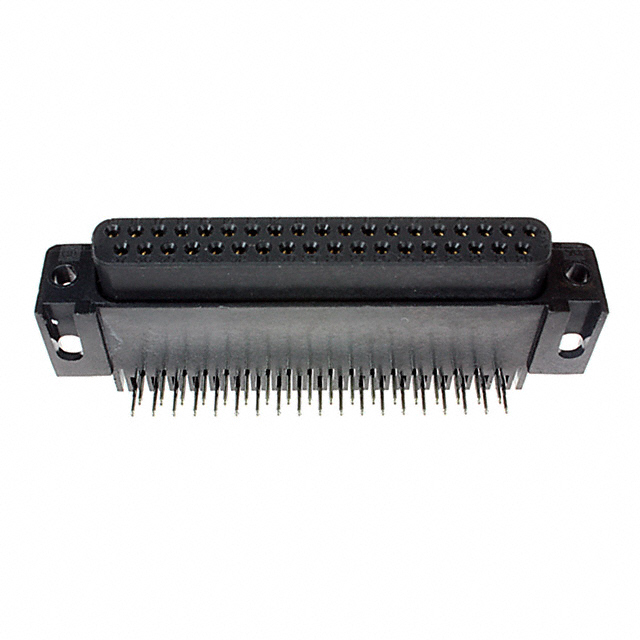

CONN D-SUB RCPT 37POS R/A SLDR
| Part | Number of Rows | Contact Type | Termination | Connector Type | Flange Feature | Current Rating (Amps) | Material Flammability Rating | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Connector Style | Contact Finish | Shell Size, Connector Layout | Backset Spacing | Backset Spacing | Contact Material | Color | Voltage Rating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 2 | Signal | Solder | Receptacle Female Sockets | Housing/Shell (4-40) | 6 A | UL94 V-0 | Through Hole Right Angle | 0.76 Ám | 30 Áin | 105 ░C | -55 °C | D-Sub | Gold | 4 (DC C) | 0.59 " | 14.99 mm | Phosphor Bronze | Black | 125 VDC | 37 |
 TE Connectivity Raychem Cable Protection | 2 | Signal | Solder | Receptacle Female Sockets | Housing/Shell (Unthreaded) | 6 A | UL94 V-0 | Through Hole Right Angle | 0.76 Ám | 30 Áin | 105 ░C | -55 °C | D-Sub | Gold | 4 (DC C) | 0.59 " | 14.99 mm | Phosphor Bronze | Black | 125 VDC | 37 |
TE Connectivity Raychem Cable Protection | 2 | Signal | Solder | Receptacle Female Sockets | Female Screwlock (4-40) Mating Side | 6 A | UL94 V-0 | Through Hole Right Angle | 0.76 Ám | 30 Áin | 105 ░C | -55 °C | D-Sub | Gold | 4 (DC C) | 0.59 " | 14.99 mm | Phosphor Bronze | Black | 125 VDC | 37 |
