53408 Series

Catalog

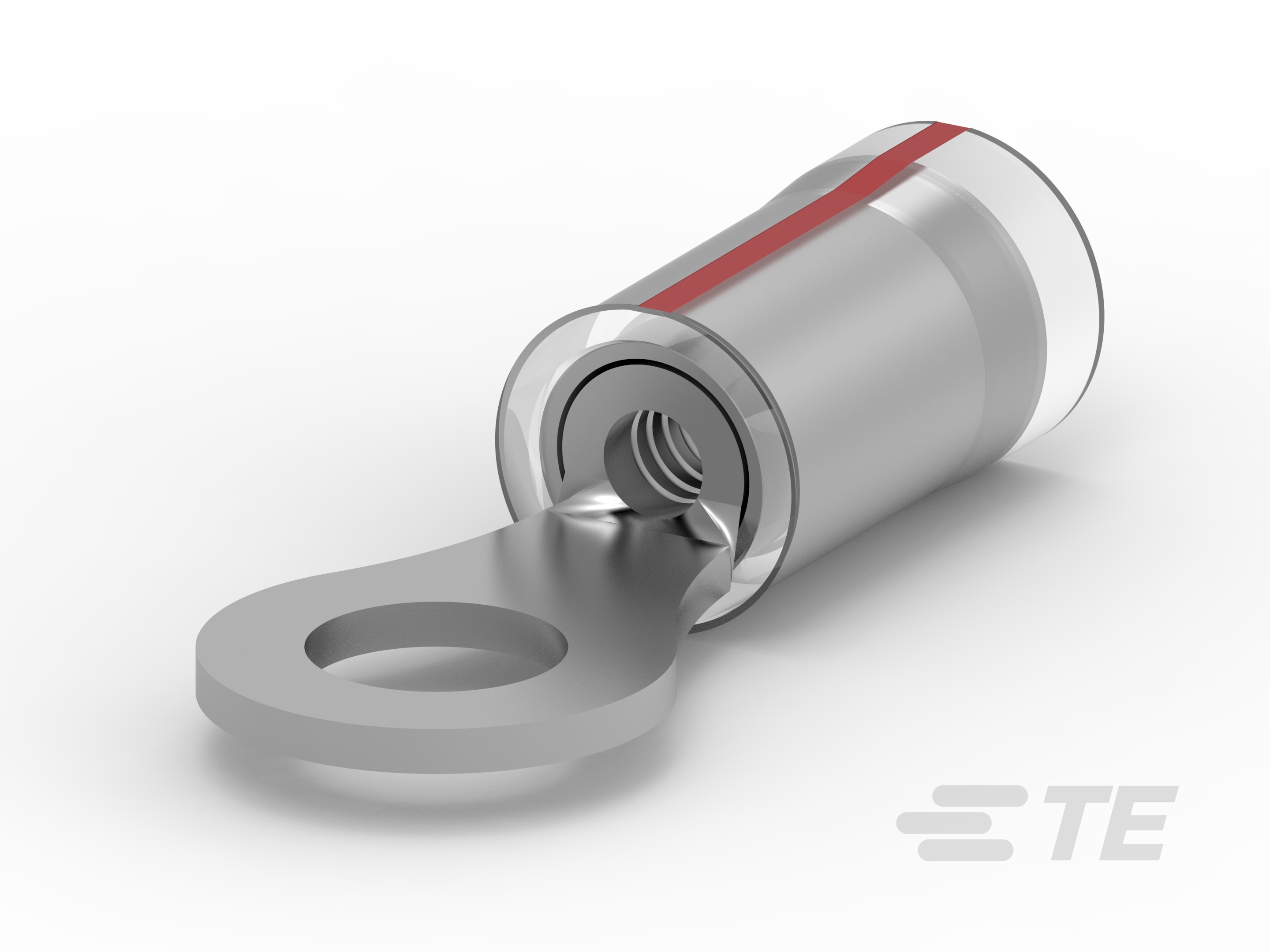

RING TONGUE TERMINAL 16-22AWG COPPER NATURAL/RED STRIPE 21.44MM TIN LEAD T/R

Part	Insulation Diameter (Min)	Insulation Diameter (Max)	Material - Insulation	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Color	Length - Overall	Terminal Type	Contact Finish	Width - Outer Edges	Mounting Type	Contact Material	Stud/Tab Size	Termination	Insulation	Thickness	Features	Stud/Tab Size
TE Connectivity AMP Connectors 53408-2	0.08 in	0.125 in	Polyvinylidene Fluoride PVDF	16 AWG	22 AWG	Natural Red Stripe	0.844 in	Circular	Tin-Lead	0.312 in	Free Hanging (In-Line)	Copper	8 Stud	Crimp	Insulated	0.031 in	Radiation Resistant Serrated Termination
TE Connectivity AMP Connectors 53408-1	0.08 in	0.125 in	Polyvinylidene Fluoride PVDF	16 AWG	22 AWG	Natural Red Stripe	0.844 in	Circular	Tin-Lead	0.312 in	Free Hanging (In-Line)	Copper	8 Stud	Crimp	Insulated	0.031 in	Radiation Resistant Serrated Termination
TE Connectivity AMP Connectors 53408-2				16 AWG	22 AWG	Natural Red Stripe	0.844 in	Circular	Tin-Lead	0.312 in	Free Hanging (In-Line)	Copper		Crimp	Insulated	0.031 in		M4 M4 Stud
TE Connectivity AMP Connectors 8-53408-1	0.08 in	0.125 in	Polyvinylidene Fluoride PVDF	16 AWG	22 AWG	Natural Red Stripe	0.844 in	Circular	Tin-Lead	0.312 in	Free Hanging (In-Line)	Copper	8 Stud	Crimp	Insulated	0.031 in	Radiation Resistant Serrated Termination
