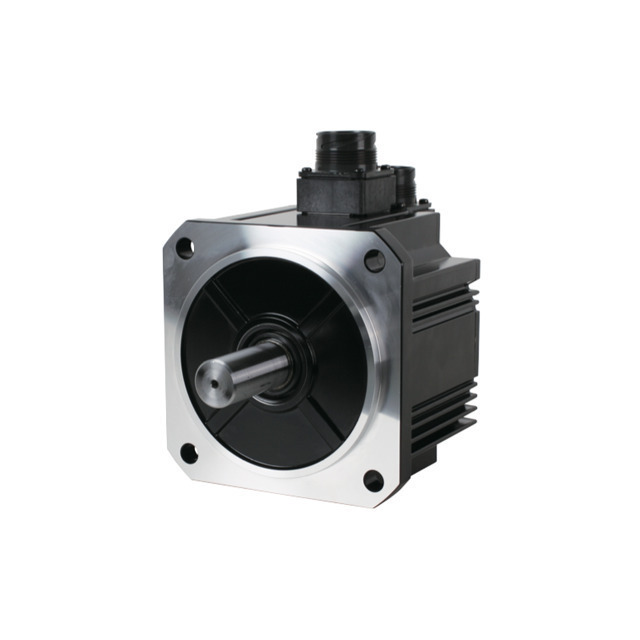

MDMF102 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
SERVOMOTOR 2000 RPM 200V
| Part | Approval Agency | Type | Mounting Hole Spacing | Termination Style | Encoder Type | Power - Rated | Torque - Max Momentary (oz-in) | Torque - Max Momentary (mNm) | Torque - Rated (mNm) | Torque - Rated (oz-in) | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Rated | Length - Shaft and Bearing | Size / Dimension Width | Size / Dimension Shape | Size / Dimension Length | Features | Diameter - Shaft | RPM | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | CE cULus cURus | AC Motor | 5.709 in | Cable with Connector | Absolute | 1 kW | 2025 oz-in | 14300 mNm | 4770 mNm | 675.5 oz-in | 0 °C | 55 °C | 200 VDC | 2.165 in | 5.118 in | Square | 5.118 in | Oil Seal | 0.89 in | 2000 RPM | Servomotor |
Panasonic Industrial Automation Sales | CE cULus cURus | AC Motor | 5.709 in | Cable with Connector | Absolute | 1 kW | 2025 oz-in | 14300 mNm | 4770 mNm | 675.5 oz-in | 0 °C | 55 °C | 200 VDC | 2.165 in | 5.118 in | Square | 5.118 in | Oil Seal Protective Lip | 0.89 in | 2000 RPM | Servomotor |
Panasonic Industrial Automation Sales | CE cULus cURus | AC Motor | 5.709 in | Cable with Connector | Absolute | 1 kW | 2025 oz-in | 14300 mNm | 4770 mNm | 675.5 oz-in | 0 °C | 55 °C | 200 VDC | 2.165 in | 5.118 in | Square | 5.118 in | Key Oil Seal Protective Lip | 0.89 in | 2000 RPM | Servomotor |
Panasonic Industrial Automation Sales | CE cULus cURus | AC Motor | 5.709 in | Cable with Connector | Absolute | 1 kW | 2025 oz-in | 14300 mNm | 4770 mNm | 675.5 oz-in | 0 °C | 55 °C | 200 VDC | 2.165 in | 5.118 in | Square | 5.118 in | Oil Seal | 0.89 in | 2000 RPM | Servomotor |
 Panasonic Industrial Automation Sales | CE cULus cURus | AC Motor | 5.709 in | Cable with Connector | Absolute | 1 kW | 2025 oz-in | 14300 mNm | 4770 mNm | 675.5 oz-in | 0 °C | 55 °C | 200 VDC | 2.165 in | 5.118 in | Square | 5.118 in | Key Oil Seal Protective Lip | 0.89 in | 2000 RPM | Servomotor |
Panasonic Industrial Automation Sales | CE cULus cURus | AC Motor | 5.709 in | Cable with Connector | Absolute | 1 kW | 2025 oz-in | 14300 mNm | 4770 mNm | 675.5 oz-in | 0 °C | 55 °C | 200 VDC | 2.165 in | 5.118 in | Square | 5.118 in | Brake Key Oil Seal Protective Lip | 0.89 in | 2000 RPM | Servomotor |
Panasonic Industrial Automation Sales | CE cULus cURus | AC Motor | 5.709 in | Cable with Connector | Absolute | 1 kW | 2025 oz-in | 14300 mNm | 4770 mNm | 675.5 oz-in | 0 °C | 55 °C | 200 VDC | 2.165 in | 5.118 in | Square | 5.118 in | Brake Oil Seal | 0.89 in | 2000 RPM | Servomotor |
Panasonic Industrial Automation Sales | CE cULus cURus | AC Motor | 5.709 in | Cable with Connector | Absolute | 1 kW | 2025 oz-in | 14300 mNm | 4770 mNm | 675.5 oz-in | 0 °C | 55 °C | 200 VDC | 2.165 in | 5.118 in | Square | 5.118 in | Key Oil Seal | 0.89 in | 2000 RPM | Servomotor |
Panasonic Industrial Automation Sales | CE cULus cURus | AC Motor | 5.709 in | Cable with Connector | Absolute | 1 kW | 2025 oz-in | 14300 mNm | 4770 mNm | 675.5 oz-in | 0 °C | 55 °C | 200 VDC | 2.165 in | 5.118 in | Square | 5.118 in | Brake Key Oil Seal Protective Lip | 0.89 in | 2000 RPM | Servomotor |
 Panasonic Industrial Automation Sales | CE cULus cURus | AC Motor | 5.709 in | Cable with Connector | Absolute | 1 kW | 2025 oz-in | 14300 mNm | 4770 mNm | 675.5 oz-in | 0 °C | 55 °C | 200 VDC | 2.165 in | 5.118 in | Square | 5.118 in | Brake Key Oil Seal | 0.89 in | 2000 RPM | Servomotor |
