51874 Series

Catalog

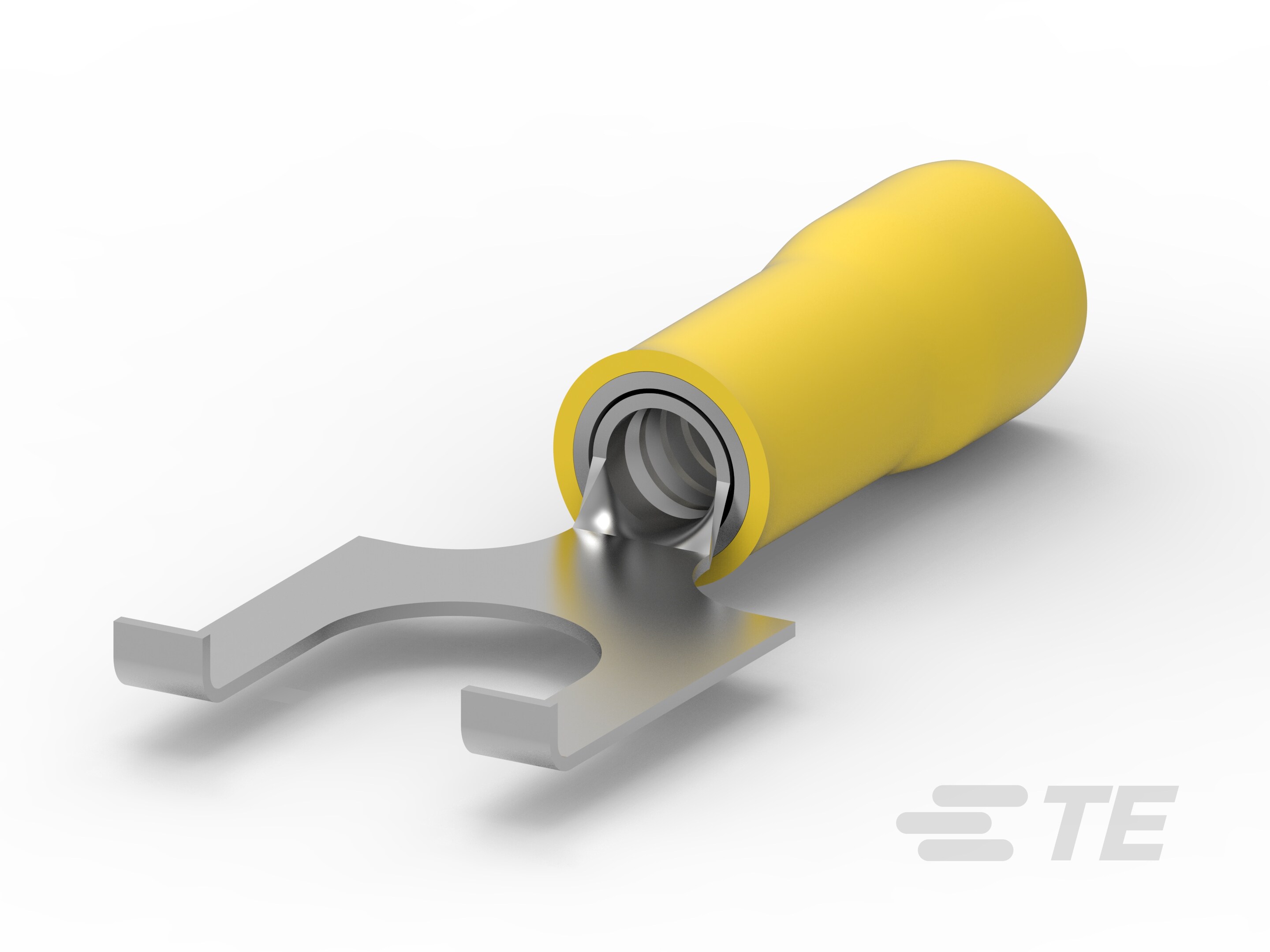

FORK / SPADE TONGUE TERMINAL, PIDG SERIES, 26 AWG, 22 AWG, 0.4 MM², M3.5, #6

Part	Mounting Type	Width - Outer Edges	Termination	Insulation	Contact Finish	Contact Material	Length - Overall	Stud/Tab Size	Terminal Type	Color	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Features	Insulation Diameter (Max)	Insulation Diameter (Min)	Material - Insulation	Length - Termination	Tongue Inside Opening	Length - Ring Center to Termination
TE Connectivity AMP Connectors 8-51874-1	Free Hanging (In-Line)	0.25 in	Crimp	Insulated	Tin	Copper	0.667 in	6 Stud	Flanged	Yellow	26 AWG	22 AWG	Serrated Termination	0.082 in	0.05 in	Nylon PA Polyamide	0.331 in	0.145 in	0.203 in
