047018 Series
Manufacturer: Molex
Beta
⌘K

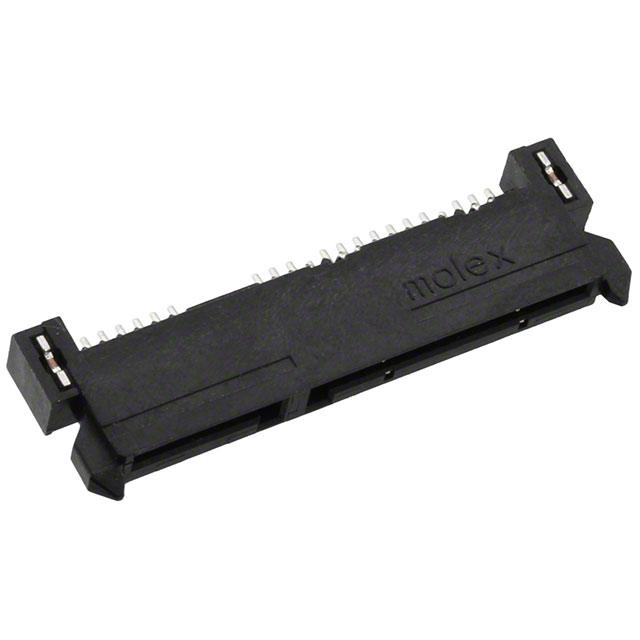

CONN SATA RCPT 22POS SLD R/A SMD
| Part | Termination | Connector Type | Features | Mounting Type | Connector Style | Number of Positions | Contact Finish | Contact Finish Thickness | Contact Finish Thickness (string set options) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Solder | SATA | Board Lock Mating Guide | Right Angle Surface Mount | Receptacle | 22 | Gold | 0 | Flash | Flash |
 Molex | Solder | SATA | Board Lock | Right Angle Surface Mount | Receptacle | 22 | Gold | 15 µin | ||
 Molex | Solder | SATA | Board Lock | Right Angle Surface Mount | Receptacle | 22 | Gold | 0 | Flash | Flash |
Molex | Solder | SATA | Board Lock Mating Guide | Right Angle Surface Mount | Receptacle | 22 | Gold | 0 | Flash | Flash |
 Molex | Solder | SATA | Board Lock | Right Angle Surface Mount | Receptacle | 22 | Gold | 0 | Flash | Flash |
 Molex | Solder | SATA | Board Lock | Right Angle Surface Mount | Receptacle | 22 | Gold | 30 µin | ||
Molex | Solder | SATA | Board Lock | Right Angle Surface Mount | Receptacle | 22 | Gold | 15 µin | ||
 Molex | Solder | SATA | Board Lock | Right Angle Surface Mount | Receptacle | 22 | Gold | 30 µin |
