767094 Series

Catalog

CONN RCPT 152P SMD PALLAD-NICKEL

Part	Pitch [x]	Pitch [x]	Contact Finish	Height Above Board	Height Above Board	Mated Stacking Heights	Connector Type	Number of Positions	Mounting Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness

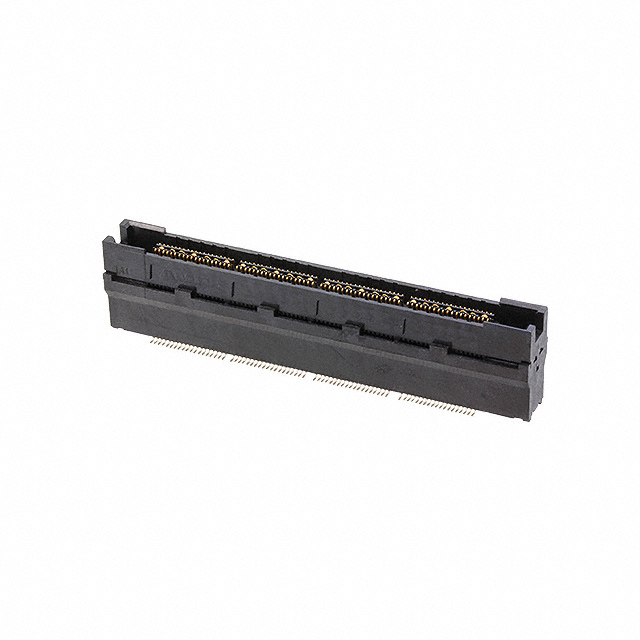

TE Connectivity Raychem Cable Protection 767094-4	0.64 mm	0.025 in	Palladium-Nickel	0.587 in	14.91 mm	15.62 mm 18 mm 20 mm 21.6 mm 27 mm 27.8 mm 29 mm 31.9 mm	Center Strip Contacts Receptacle	152	Surface Mount	2	0.76 Ám	30 Áin

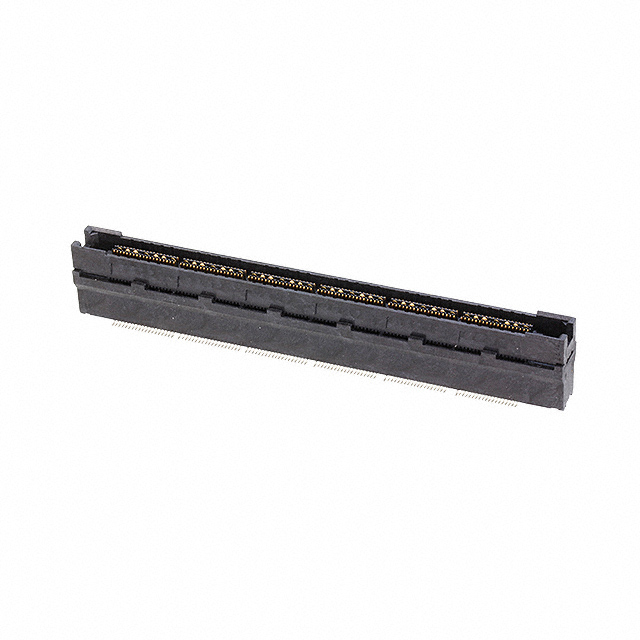

TE Connectivity Raychem Cable Protection 767094-6	0.64 mm	0.025 in	Palladium-Nickel	0.587 in	14.91 mm	15.62 mm 18 mm 20 mm 21.6 mm 27 mm 27.8 mm 29 mm 31.9 mm	Center Strip Contacts Receptacle	228	Surface Mount	2	0.76 Ám	30 Áin
TE Connectivity Raychem Cable Protection 767094-5	0.64 mm	0.025 in	Palladium-Nickel	0.587 in	14.91 mm	15.62 mm 18 mm 20 mm 21.6 mm 27 mm 27.8 mm 29 mm 31.9 mm	Center Strip Contacts Receptacle	190	Surface Mount	2	0.76 Ám	30 Áin

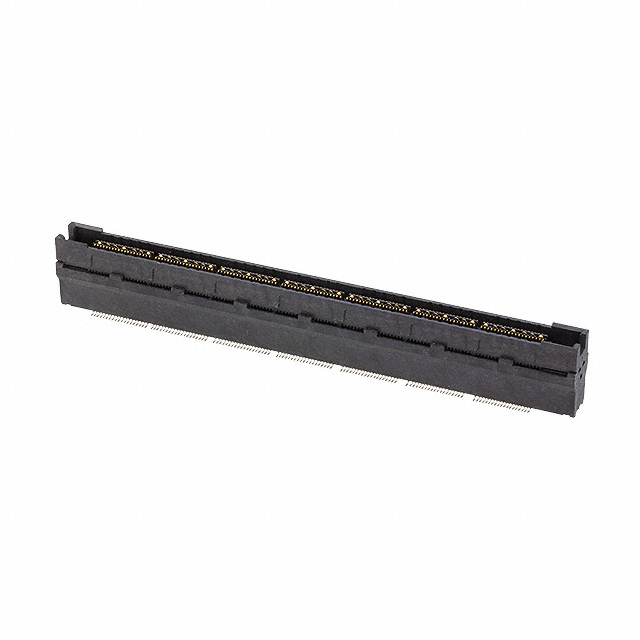

TE Connectivity Raychem Cable Protection 767094-7	0.64 mm	0.025 in	Palladium-Nickel	0.587 in	14.91 mm	15.62 mm 18 mm 20 mm 21.6 mm 27 mm 27.8 mm 29 mm 31.9 mm	Center Strip Contacts Receptacle	266	Surface Mount	2	0.76 Ám	30 Áin
